EX-TRAFIRE
®
45HD 7 Operation of the power supply
EN - 25
6.8 Aligning FHT-EX
®
45TTM machine cutting torch
For the setup of the torch and the cutting process see
6 Setting up the power supply on page 17
7 Operation of the power supply

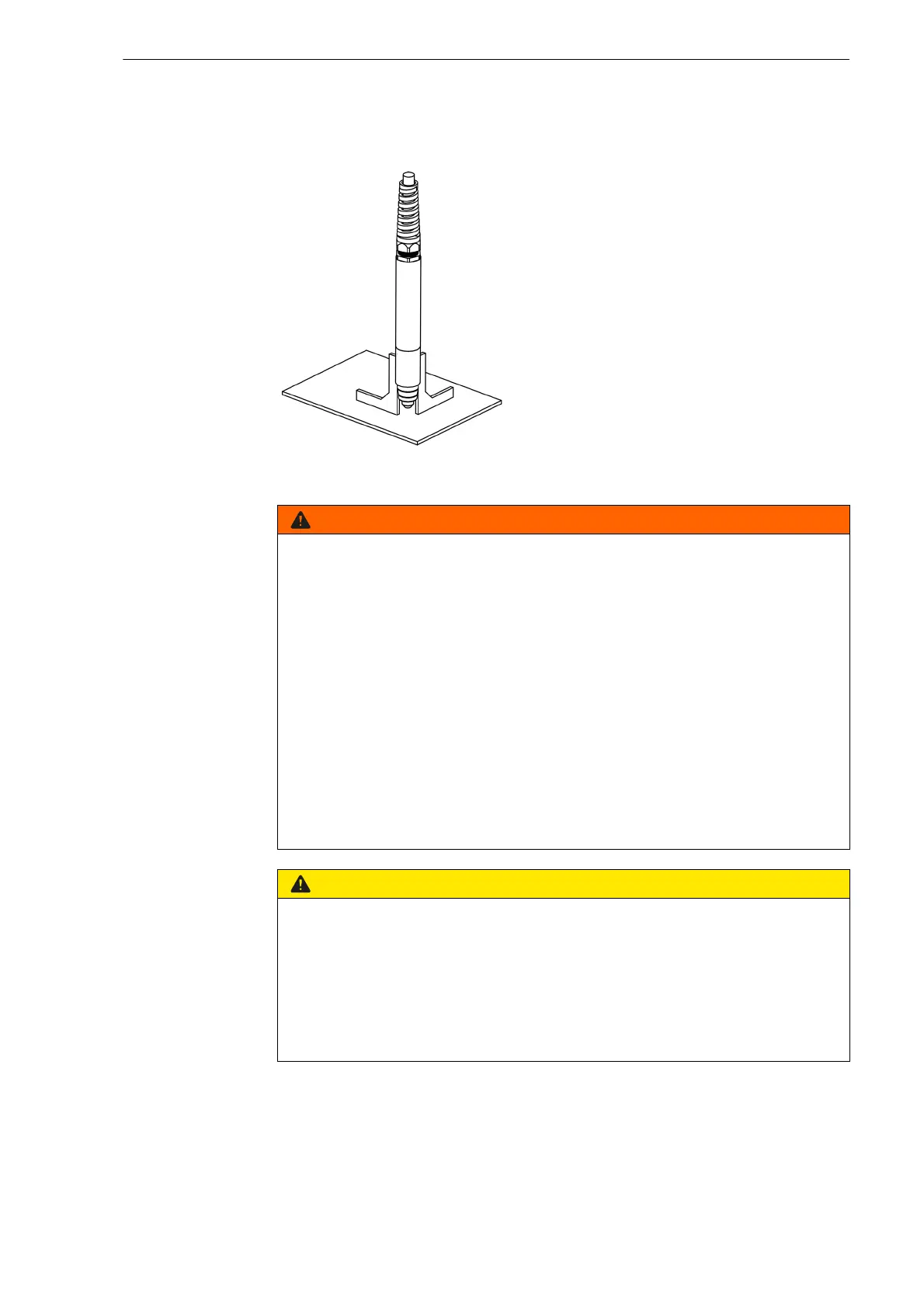

1 Position the cutting torch
perpendicular to the workpiece.
2 Use an angle gauge to align the
machine cutting torch at 0° and 90°.
Risk of injury due to unexpected ignition of the plasma arc
Hand cutting torch:
When the input power plug is plugged in, the plasma arc ignites
immediately when the torch trigger is pressed. Individuals can be
seriously injured if the arc ignites unexpectedly.
Machine cutting torch:
When the input power plug is plugged in, the plasma arc ignites
immediately when the CNC start signal is ON. Individuals can be
seriously injured if the arc ignites unexpectedly.
• Hold the tip of the cutting torch away from you.
• Do not hold the workpiece to be cut tightly and keep your hands away
from the cutting surface.
• Do not point the cutting torch at yourself or other individuals.
• Wear your personal protective equipment.
Risk of burns due to flying sparks when angling the cutting torch
When the cutting torch is angled during cutting or piercing, molten
metal (sparks) will escape in the direction in which the cutting torch is
pointed. This may result in burns.
• Do not point the cutting torch at yourself or other individuals when
angling it.
• Wear your personal protective equipment.
