THERMACUT EX-TRAFIRE 45HD - Powering on the Machine; Manual Cutting Process; Manual Grid Cutting, Gouging, Marking Process

EX-TRAFIRE
®
45HD 7 Operation of the power supply
EN - 29
7.2 Powering on the machine
7.3 Manual cutting process
1 Switch on the power supply.
2 Automatic gas test (5 seconds).
3 Automatic system test (5 seconds).
4 Press torch trigger.
5 Generate a pilot arc.
6 Once the workpiece is detected, the pilot arc changes to a cutting arc.
7 The cutting process starts.
8 Extinguish the arc by releasing the cutting torch trigger.
9 Gas post-flow period 10 – 45 seconds depending on the output current
7.4 Manual grid cutting, gouging, marking process
1 Switch on the power supply.
2 Automatic gas test (5 seconds)
3 Automatic system test (5 seconds)
4 Press torch trigger.
5 Generate a pilot arc.
6 Once the workpiece is detected, the pilot arc changes to a cutting arc.
7 Grid cutting, gouging, or marking starts depending on the selected
process.
8 Extinguish the arc by releasing the cutting torch trigger.
9 Gas post-flow period 10 – 45 seconds depending on the output current.

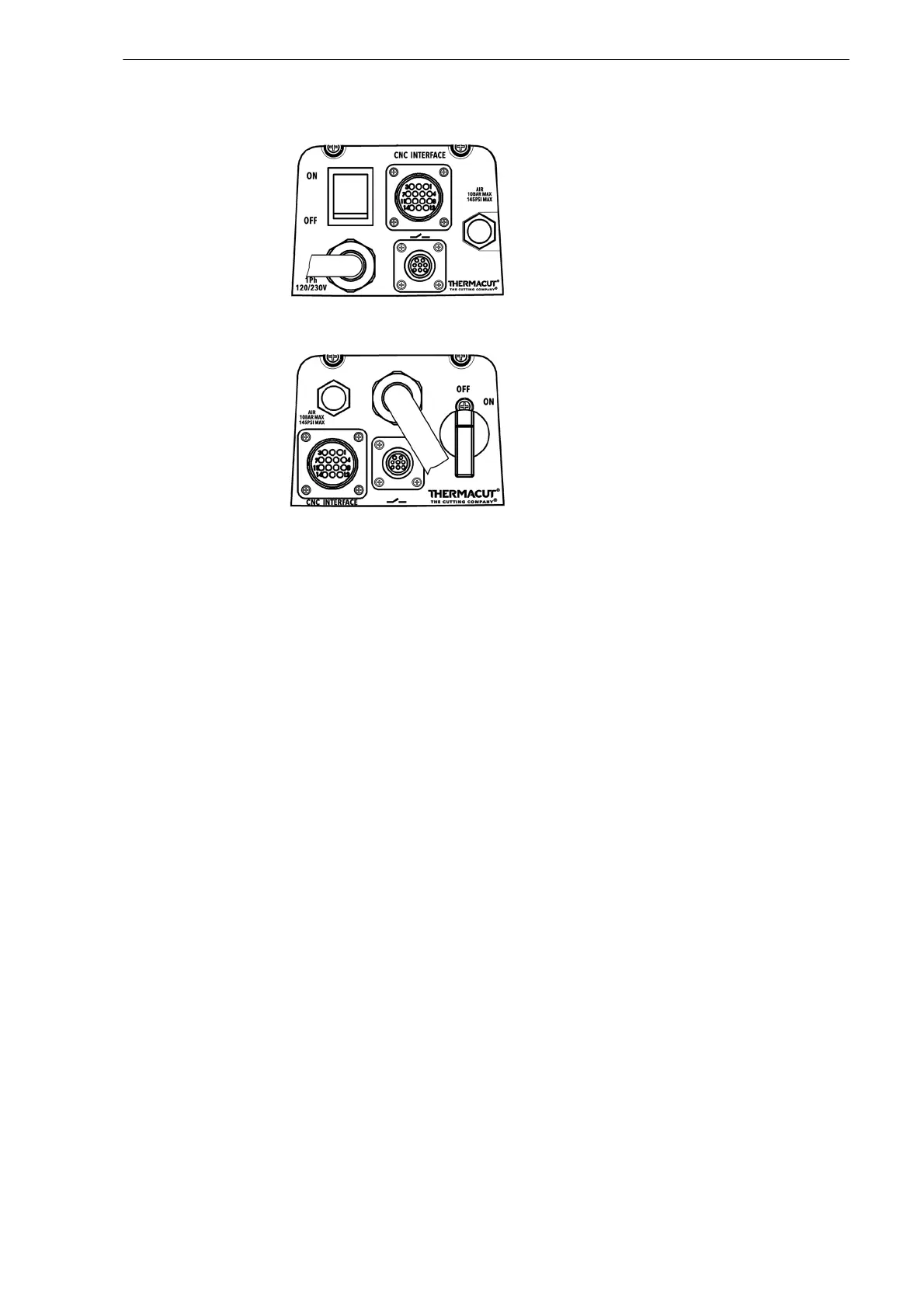

 Set switch to <ON>.
Single-phase
Three-phase
