CUTMASTER 40mm

Manual 0-5085 6-3 PARTS LIST

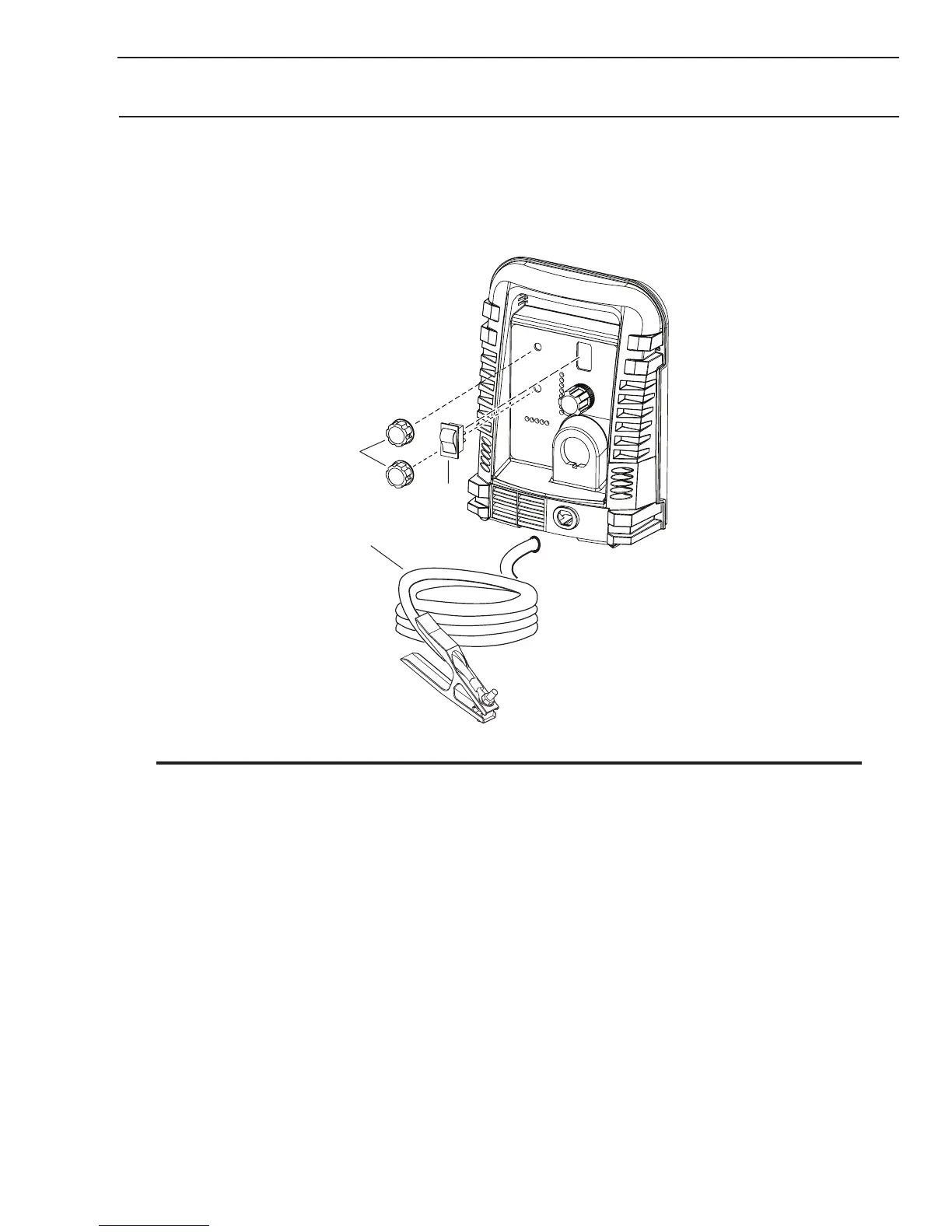

6.05 Front Panel Replacement Parts

Item# Qty Description Ref. Catalog #

1 1 Output Current Control and Function Control Knobs 9-8527

 2 1 Toggle-On/OSwitch SW1 9-0109

3 1 WorkCablewithClamp,20Ft/6.1m  9-0189

Not Shown:

  1 Wireharness(fromSW1)w/EMIChoke(CEPowerSuppliesOnly)  9-0247

Art # A-08123

NOTE

Illustration may vary slightly from unit.
