Thermal Dynamics CUTMASTER Service Manual

CUTMASTER 40mm
Manual 0-5085 6-5 PARTS LIST

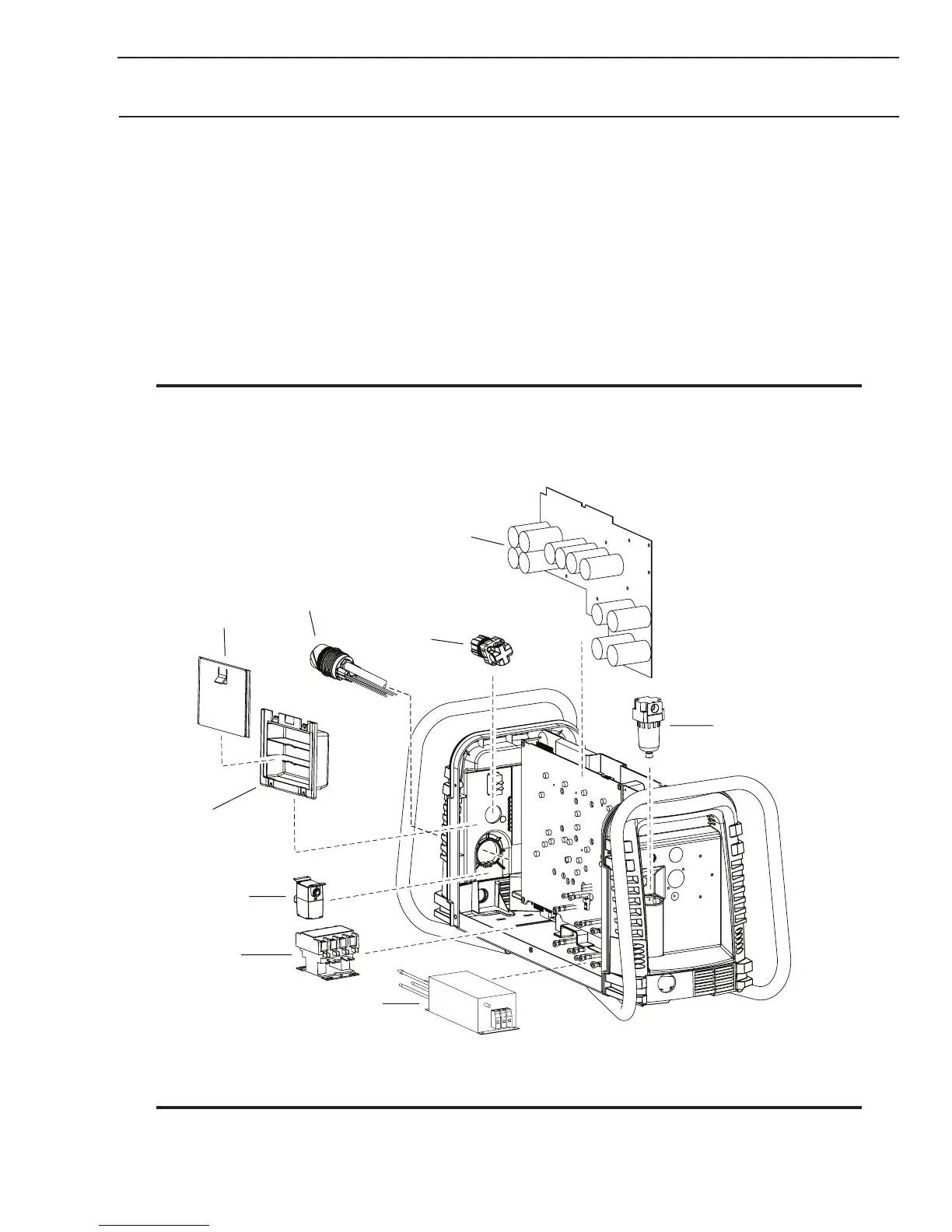

6.07 Right Side Replacement Parts
Item # Qty Description Ref Catalog #
 1 1 Contactor,4Pole W1 9-8587
2 1 Solenoid, 12V SOL1 9-0114
3 1 Spare Parts Box 7-3267
4 1 Spare Parts Box Cover 7-3266
5 1 ConsoleQuickDisconnect  9-0161
6 1 Regulator,withknobandmountingnut  9-0115*
7 1 Assembly,PCB,InputCapacitors PCB2 9-0202
8 1 Filter, Auto Drain 9-0116
 9 1 3PhaseInputLineEMIFilter(CEPowerSuppliesOnly))  9-0253
Not Shown:
  1 PowerCableStrainRelief,allunits(Kitincludesbothstyles)  9-0111
1 InputPowerCable380/400/415V 3 phase 9-0216
NOTE
*9-0115 regulator, If the Logic PCB has a PCB mounted pressure transducer with a small hose connecting
the transducer to a fitting on the regulator assembly, then kit number 9-0201, which includes both a new
Logic PCB and regulator assembly, will need to be ordered.
1
2
3
5
6
7
Art # A-08759_AB
4
8
9
NOTE
Illustration may vary slightly from unit.
