INTRODUCTION 2-2 Manual 0-5085

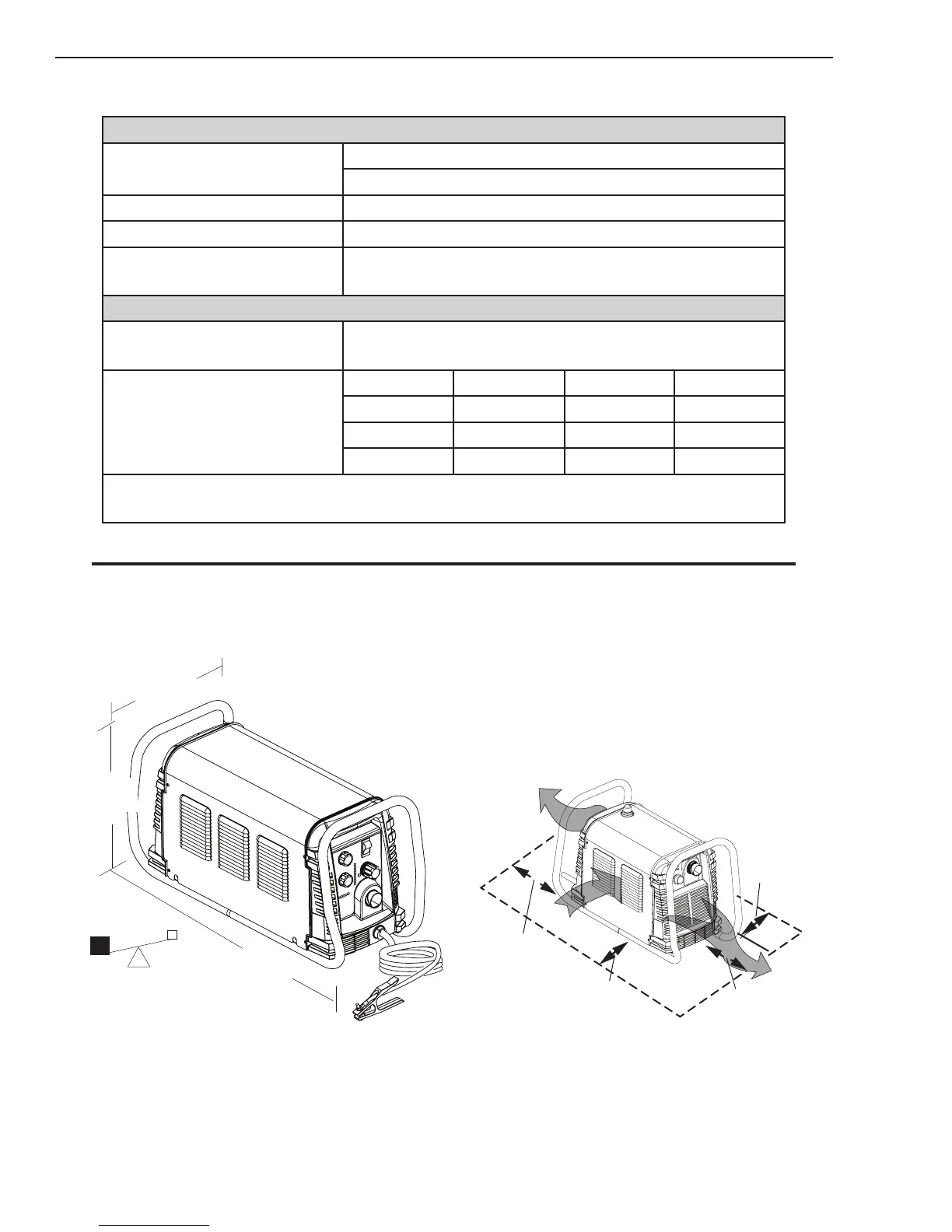

2.04 Power Supply Specifications
CutMaster 40mm Power Supply Specications
Input Power
380 VAC (360 - 440 VAC), Three Phase, 50/60 Hz
400/415 VAC (360 - 440 VAC), Three Phase, 50 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 120 Amps, Continuously Adjustable
Power Supply Gas Filtering
Ability
Particulates to 5 Microns
CutMaster 40mm Power Supply Duty Cycle *
Ambient Temperature
Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units
Duty Cycle N/A 40% 100%
Current 120 110
IEC IEC IEC
DC Voltage 128 124
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or
the output voltage (DC) is higher than shown in this chart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifications
include calculating an output voltage based upon power supply rated current. To facilitate comparison between
power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
30.5"
774.7 m
63 lb / 28.6 kg
10.75"
273 mm
16.375"
416 mm
Art # A-08358
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
