Thermal Dynamics CUTMASTER Service Manual

CUTMASTER 40mm
Manual 0-5085 6-7 PARTS LIST

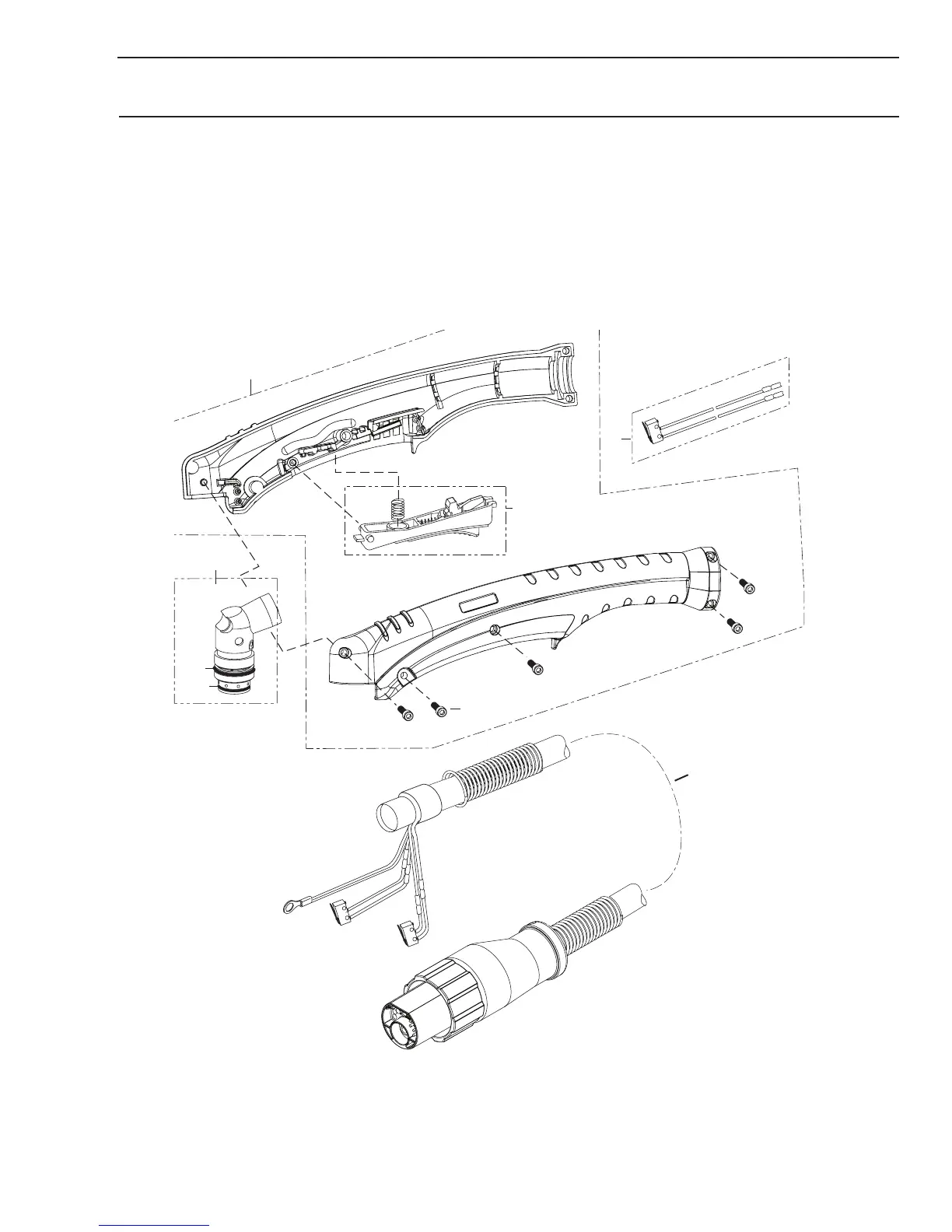

6.09 Replacement Parts for Hand Torch
Item # Qty Description Catalog #
 1 1 TorchHandleReplacementKit(includesitemsNo.2&3)  9-7030
2 1 Trigger Assembly Replacement Kit 9-7034
 3 1 HandleScrewKit(5each,6-32x1/2”capscrew,andwrench)  9-8062
 4 1 TorchHeadAssemblyReplacementKit(includesitemsNo.5&6)  9-8219
5 1 Large O-Ring 8-3487
6 1 Small O-Ring 8-3486
7 Leads Assemblies with ATC connectors (includes switch assemblies)
  1  SL100,20-footLeadsAssemblywithATCconnector  4-7836
  1  SL100,50-footLeadsAssemblywithATCconnector  4-7837
8 1 Switch Kit (2 total) 9-7031
7
5
6
3
4
2
Art # A-07993_AB
1
8
