CUTMASTER 40mm

PARTS LIST 6-4 Manual 0-5085

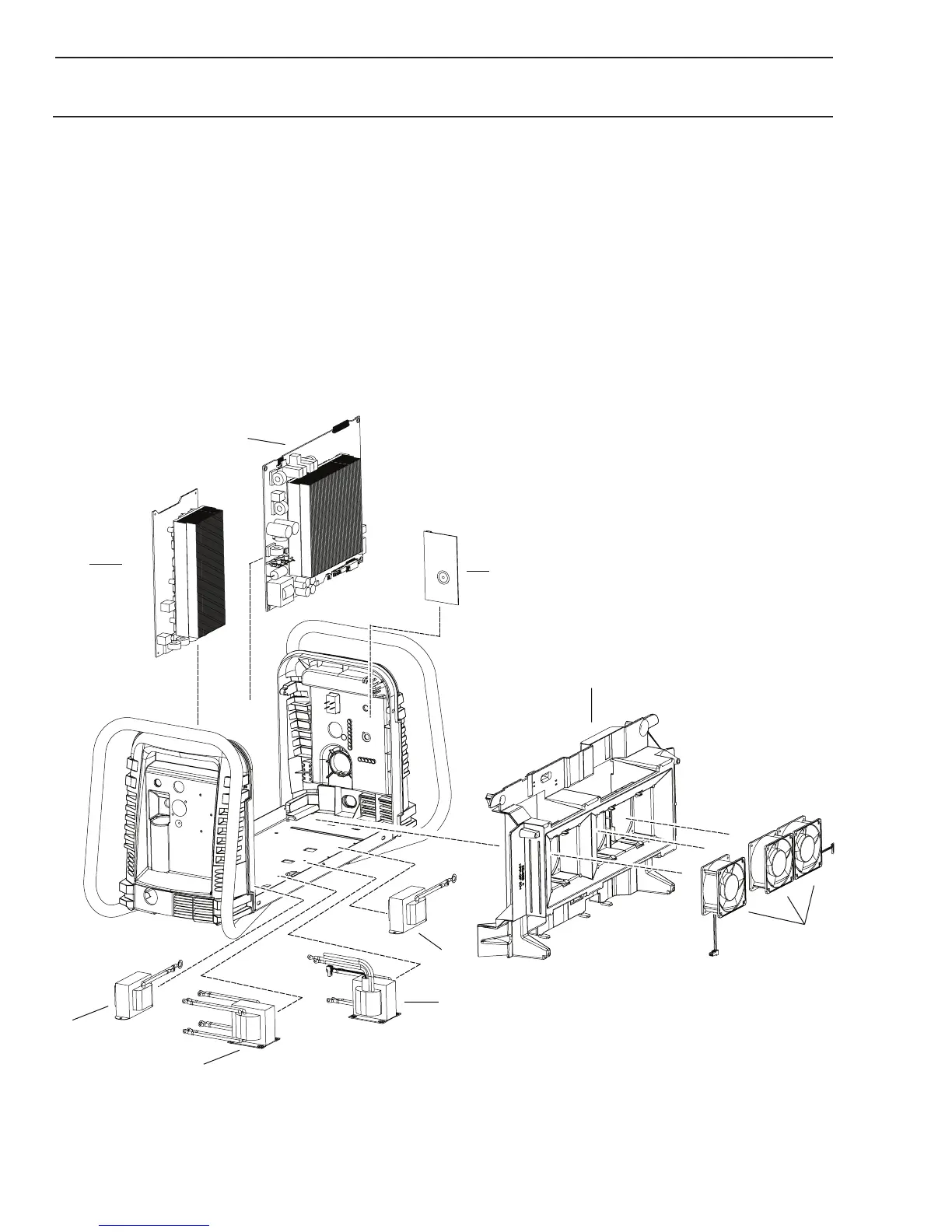

6.06 Left Side Replacement Parts

Item # Qty Description Ref Catalog #

1 1 Main PCB Assembly PCB 1 9-0123

1b 1 Main PCB Assembly 50 Amp PCB 5 9-0122

2 1 Logic PCB PCB 3 9-0107

3 1 Center Chassis Molded Plastic 9-0190

4 1 Fan, (3 total) MOT 1-3 9-0232

 5 1 Transformer,Main T1 9-0119

 5b 1 Transformer,Main60Amp T2 9-0117

 6 1 Inductor,Output L1 9-0105

 6b 1 Inductor,Output40Amp L2 9-0195

Not Shown:

  1 Clamp-OnWireHarnessFerriteFilter-

(On Logic PCB Ribbon Cable) 9-0249

Art # A-08560
