CUTMASTER 40MM
SERVICE 5-32 Manual 0-5085

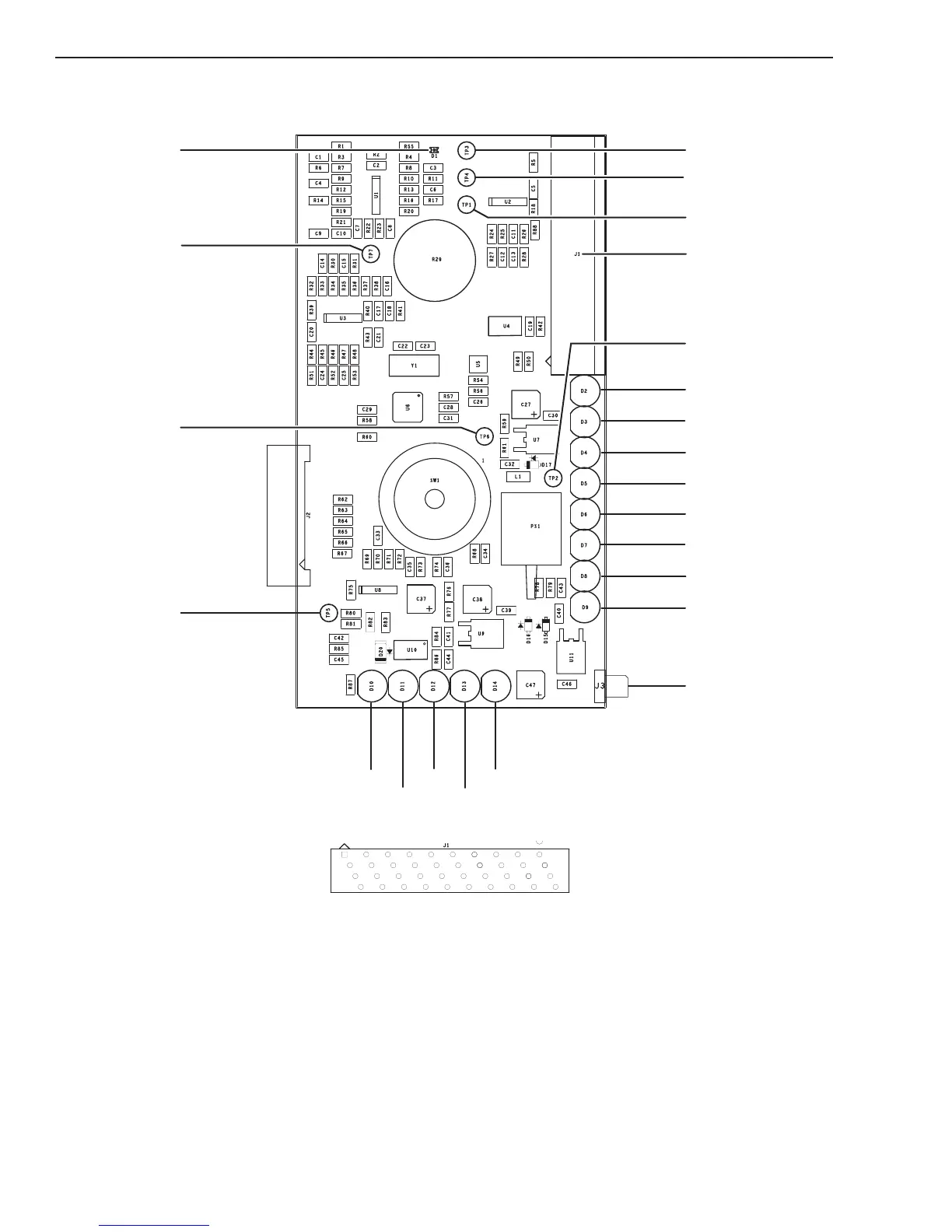

5.14 Logic PCB Layout & Signals
D5
D3
D2
D4
D6
D7
D8
D9
TP4
TP1
J1*
TP2
TP7
TP6
TP5
D10
D11
D12
D13
D14
1
4
37
40
*J1 Pinout
Art # A-08504_AB
D1
TP3
J3
LOGIC PCB 3 LAYOUT
A. LOGIC PCB 3 SIGNALS
J1 Signal info is the same as MAIN PCB 1 J2 connector.
J3-1 +5VDC
J3-2 Pressure Transducer output 0.5 to 5 VDC / 0 - 100 psi
J3-3 Common
