Engine Maintenance 9-51

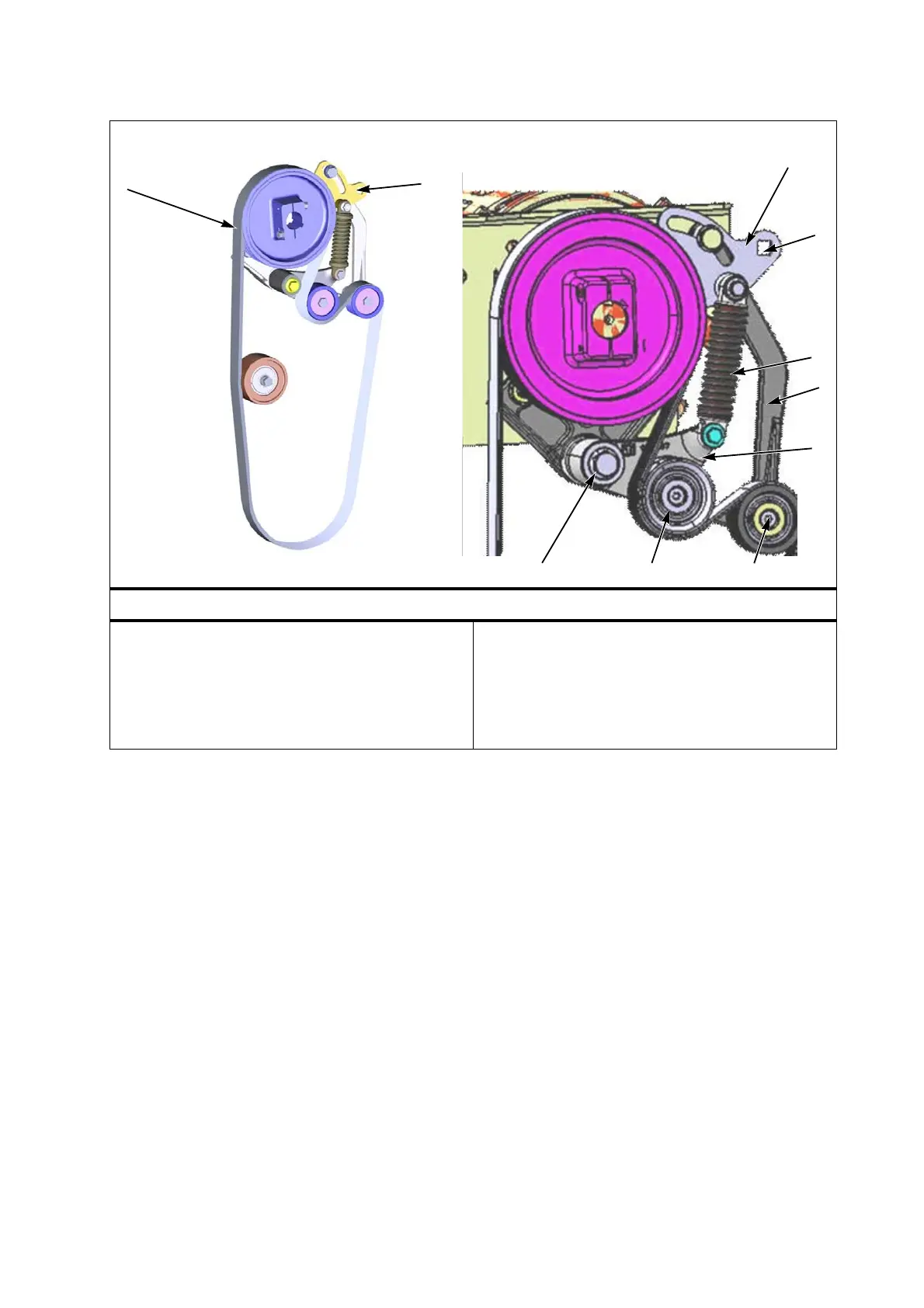

SLXe/SLXi system belt and tensioning system

1. System Belt

2. Tensioning System

3. Eccentric plate

4. Square hole For 1/2’’ standard Socket Wrench

5. Tensioner Element

6. Bracket Support

7. Arm

8. Idler grooved

9. Idler Flat

10. Pivot screw : M14 l 100 mm Torque: 110 Ft.LB ± 4 Ft-lb

(150Nm±5Nm)
