Refrigeration Service Operations 11-21
Installation of Complete ETV Assembly
1. Clean the tubes for soldering.
2. Place the new complete ETV assembly (and any tubes that were removed) in the same position from which the old one was
removed. The ETV assembly must be installed as shown below relative to the direction of refrigerant flow from the
accumulator to the compressor.
NOTE: The new ETV could interfere with other components if it is not placed in the same position as the old one, or if
retrofitted to SLX/SLXe units built prior to October 2016).
NOTE: Do not disassemble the new ETV to solder it in place.

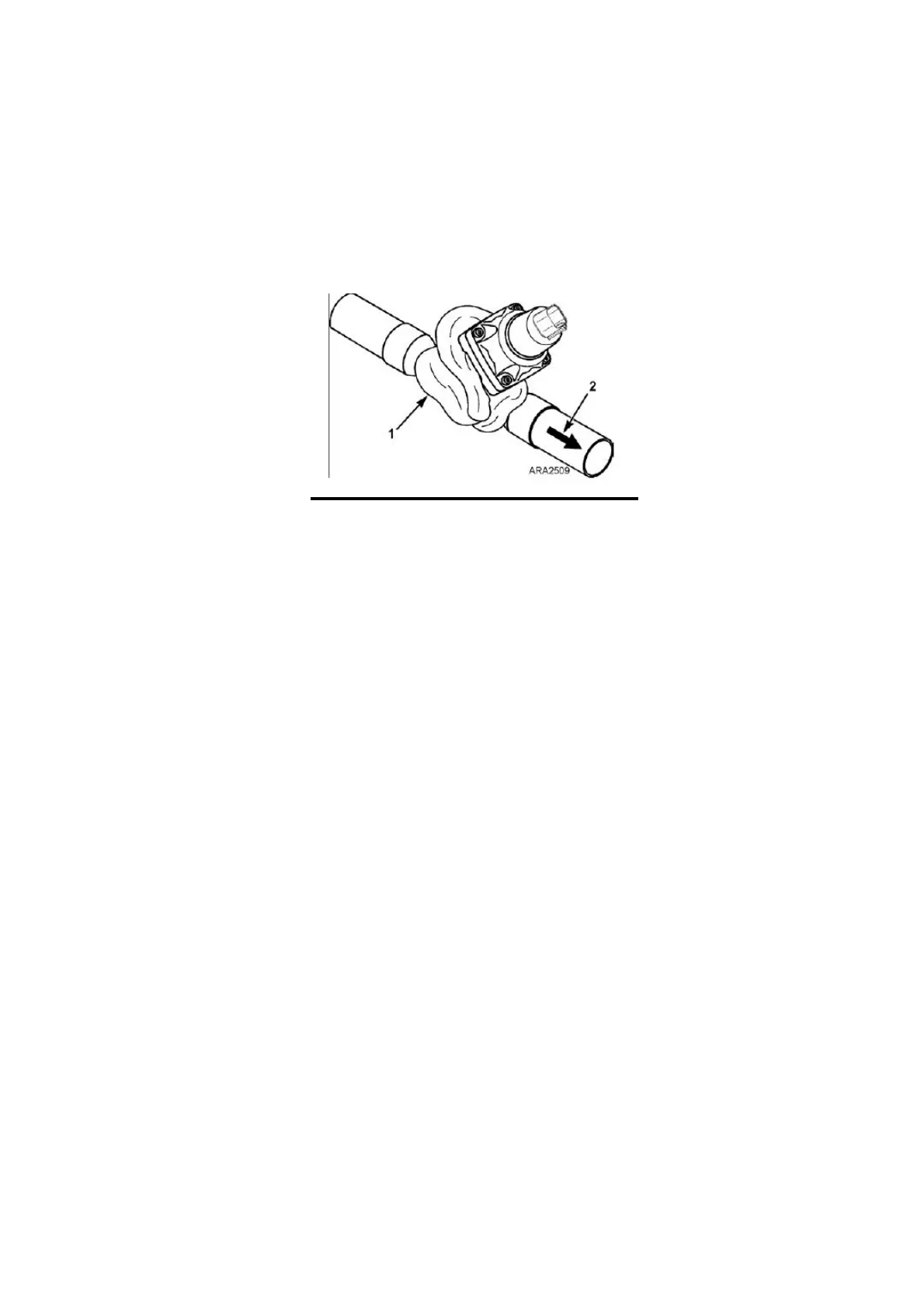

Installing Complete ETV Assembly
3. Use a heat sink or wrap the valve body with a wet rag to prevent damage and solder the tubing connections with 95-5 soft
solder.
4. Connect the main/unified wire harness to the ETV at the four-pin connector/ETV harness wire connector.
5. Pressurize the low side and test for leaks.
6. If no leaks are found, evacuate the low side.
7. Install the components that were removed to access the ETV.
8. Open the refrigeration valves and place the unit in operation.
1. Bottom Edge of the Piston Housing
2. Bottom Edge of the Piston
