Structural Maintenance 12-33
12. Slide the compressor side condenser blower (item 3) onto the compressor side end of the fan shaft and make sure to align the
Woodruff key.
13. Install an end shaft screw (item 14) in the compressor side end of the fan shaft. Torque the end shaft screw to 25 N•m. The
end shaft screw secures the inner race of the compressor side bearing between the compressor side condenser blower and the
shoulder on the fan shaft. This keeps the inner bearing race from turning on the fan shaft.
14. Torque the compressor side condenser blower mounting screws (item 15) to 17.5 N•m.
15. Tap the remaining Woodruff key (item 17) into the keyway on the control box side end of the fan shaft for the fan shaft pulley
(item 12).

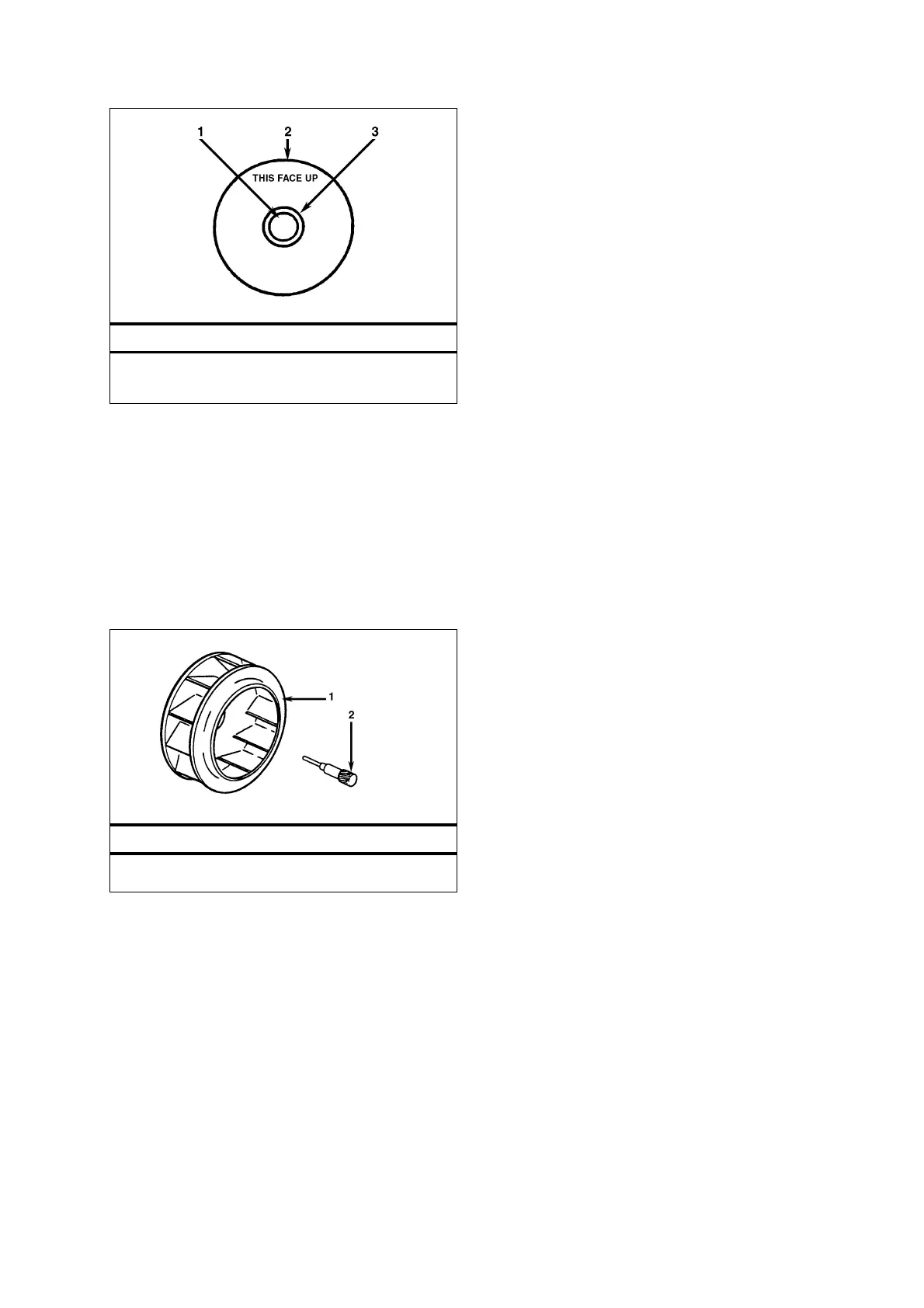

Position Seal Plate – SL and SLe
1. Fan shaft
2. Uniform Clearance Around Fan shaft
3. Seal Plate (This Face Up)
Install Condenser Seal Gauge Pin – SL and SLe
1. Control Box Side Condenser Blower (item 4)
2. Condenser Seal Gauge Pin (item 20)
