Structural Maintenance 12-37
34. Torque the two evaporator blower mounting screws (item 16) to 17.5 N•m.
35. Center each evaporator orifice in the evaporator blower and tighten the evaporator orifice mounting hardware to hold the
evaporator orifice in this position.
36. Check the radial clearance of the evaporator blower by passing a 2.3 mm wire completely around the circumferences of the
evaporator orifices and the evaporator blower.

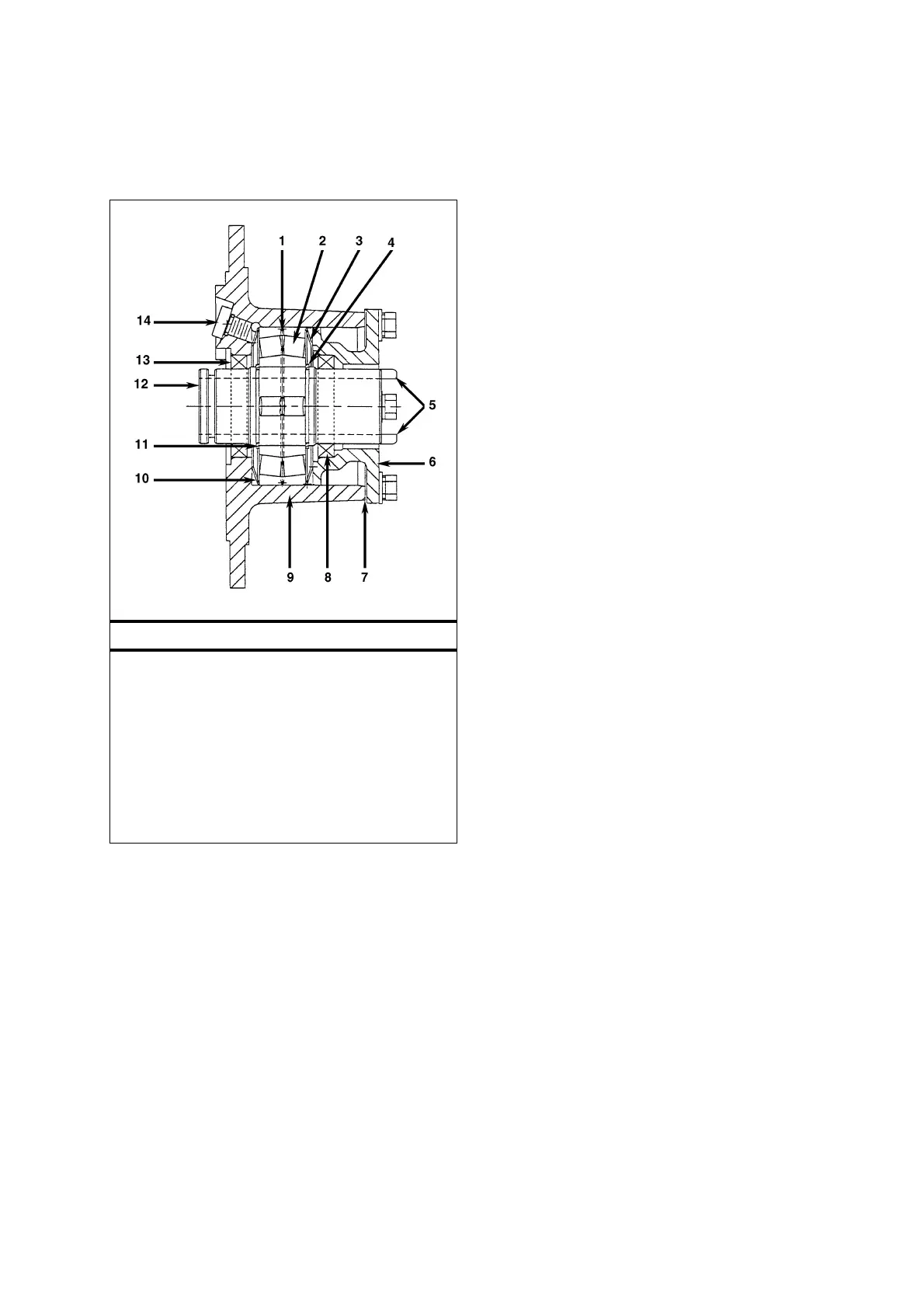

Compressor Side Bearing Assembly – SL and SLe
1. O-ring
2. Idler Bearing
3. Wave Spring Washer
4. Snap Ring
5. Tabs
6. End Cap
7. Gasket
8. Seal
9. Bearing Housing
10. Wave Spring Washer
11. Snap RIng
12. Inner Race
13. Seal
14. Oil Plug
To Next Page
