Structural Maintenance 12-39
Reassembly
1. Coat the outer edge of the oil seal with gasket sealant and press the seal into the bearing housing.
2. Install the inner wave spring washer.
3. Install the O-ring on the outer bearing race and place the roller bearing assembly and the inner race in the housing. Be careful
not to damage the O-ring.
4. Install the outer wave spring washer.
5. Coat the outer edge of the oil seal with gasket sealant and press it into end cap.
6. Lubricate the gasket with light oil and position it on the bearing housing.
7. Install the bearing end cap on the bearing housing and tighten the six bolts in a star pattern.
8. Torque the housing bolts to 13.6 N•m.
9. Fill the oil reservoir.
CAUTION: Make sure to install the bearing assembly in the unit with the vent facing up.

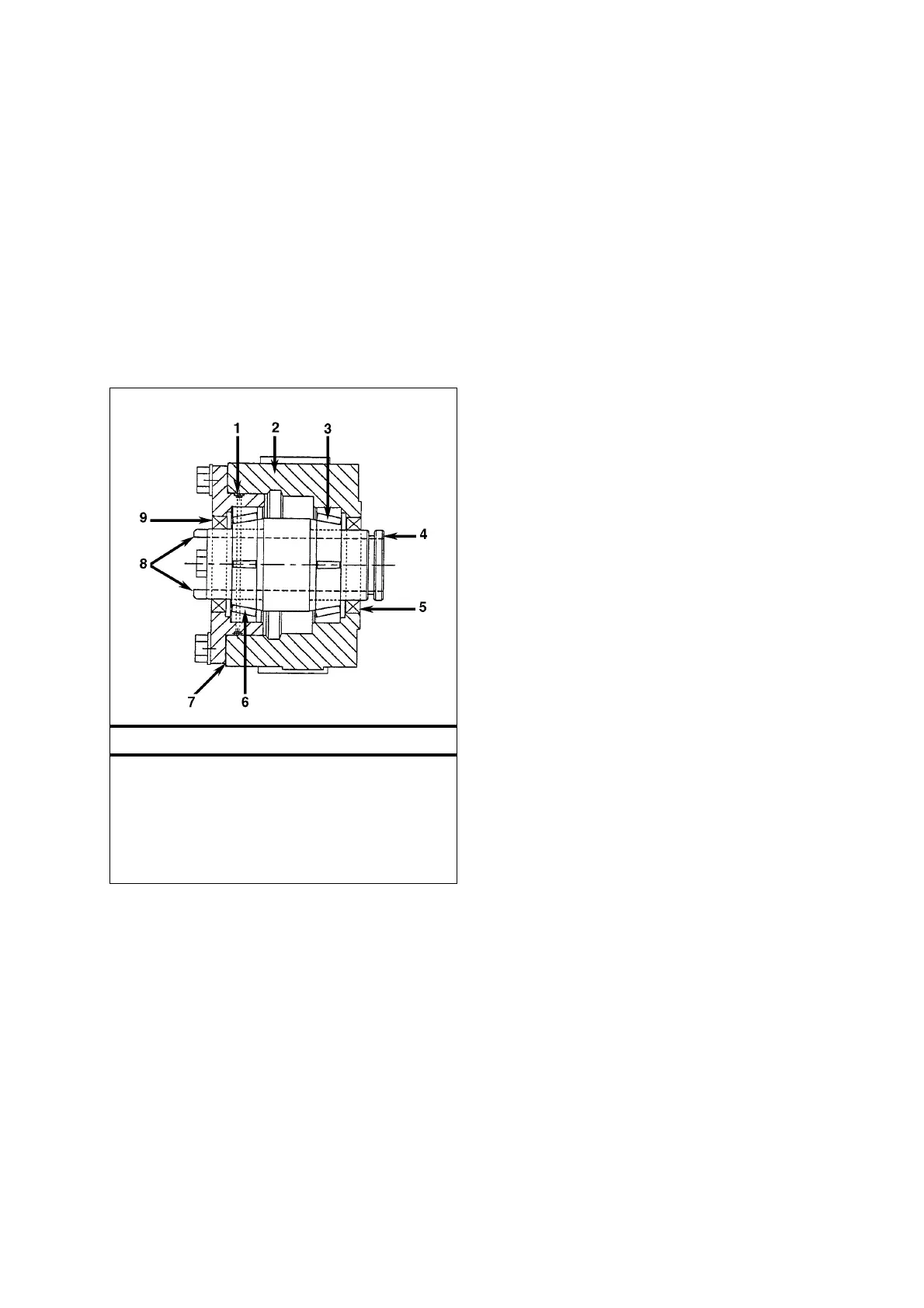

Control Box Side Bearing – SL and SLe
1. O-ring
2. Bearing Housing
3. Roller Bearing and Race
4. Inner Race
5. Seal
6. Roller Bearing and Race
7. Shims
8. Tabs
9. Seal
