Structural Maintenance 12-46
Disassembly
1. Remove the pulleys and keys from the jackshaft.
2. Remove the snap rings.
3. Remove the jackshaft from the housing by tapping on either end of the jackshaft with a soft hammer.
4. Remove the bearing from the jackshaft by supporting the bearing and tapping on the end of the jackshaft.
5. Remove the bearing from the jackshaft housing with a hammer and punch.
6. Clean and inspect the parts, but do not clean the bearings in solvent. Replace the parts that show significant wear or damage.

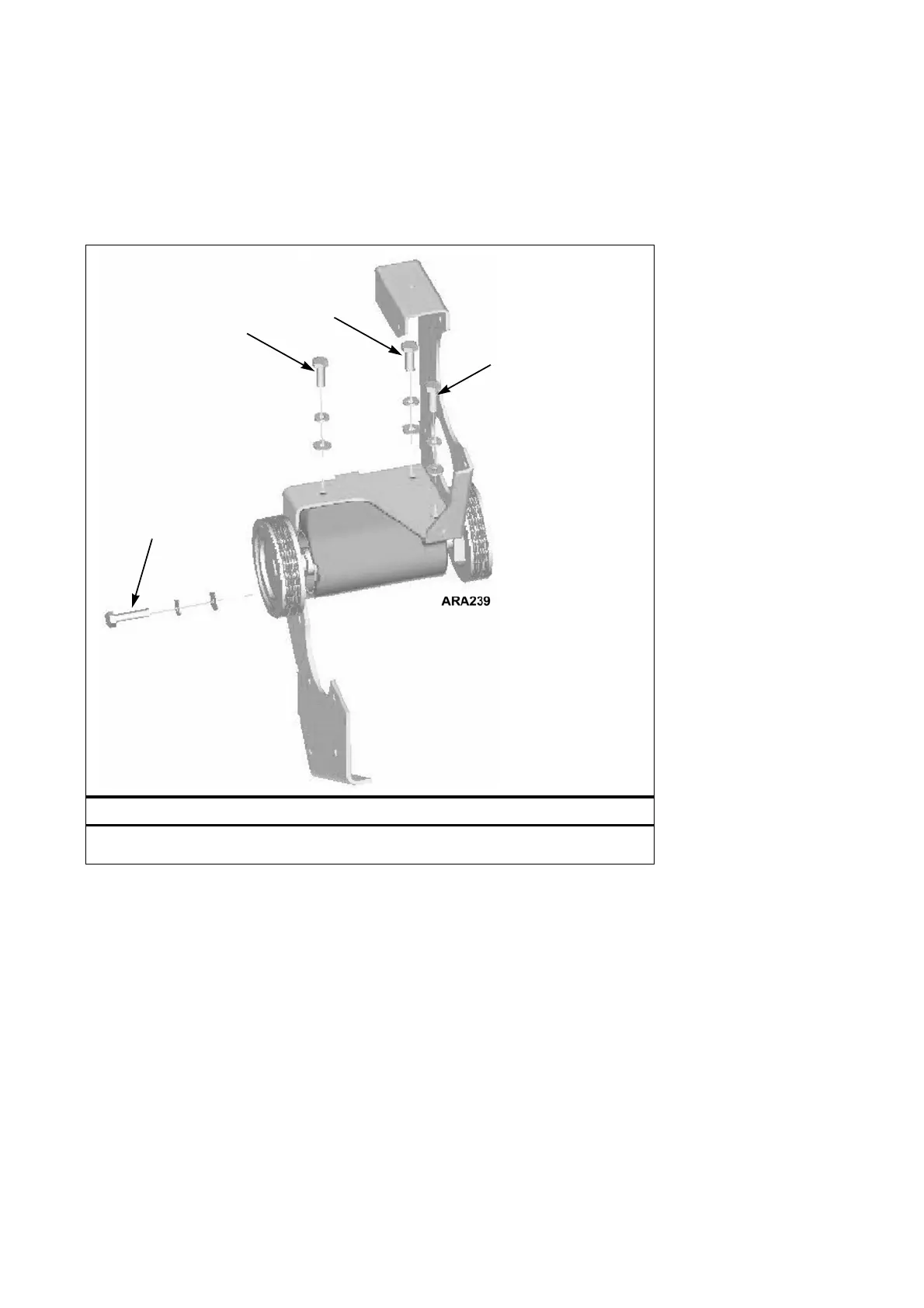

Jackshaft Mounting Bolt Removal/Installation – SLe
1. Upper Mounting Bolt
2. Lower Mounting Bolt
