Unit Description 5-7
Electric Operation
Continuous Mode
1
•Cool
•Null
2
• Heat
3, 4
•Defrost
1
Fuelsaver I, Modulation and CYCLE-SENTRY are locked out on electric standby operation.
2
The drive motor and compressor do NOT operate during the Null mode.
3
Heat is delayed for 8 minutes on units with Fuelsaver II (or TG-V controller). Exceptions: Initial unit start-up.
4
Null if setpoint is below -9.5 C.
Defrost
The Defrost mode can be initiated any time the evaporator coil temperature is below 6 C (3 C on units with TG-IV controller).
Defrost is initiated automatically by the defrost air switch and defrost timer. Defrost is initiated manually by pressing the manual
defrost switch.

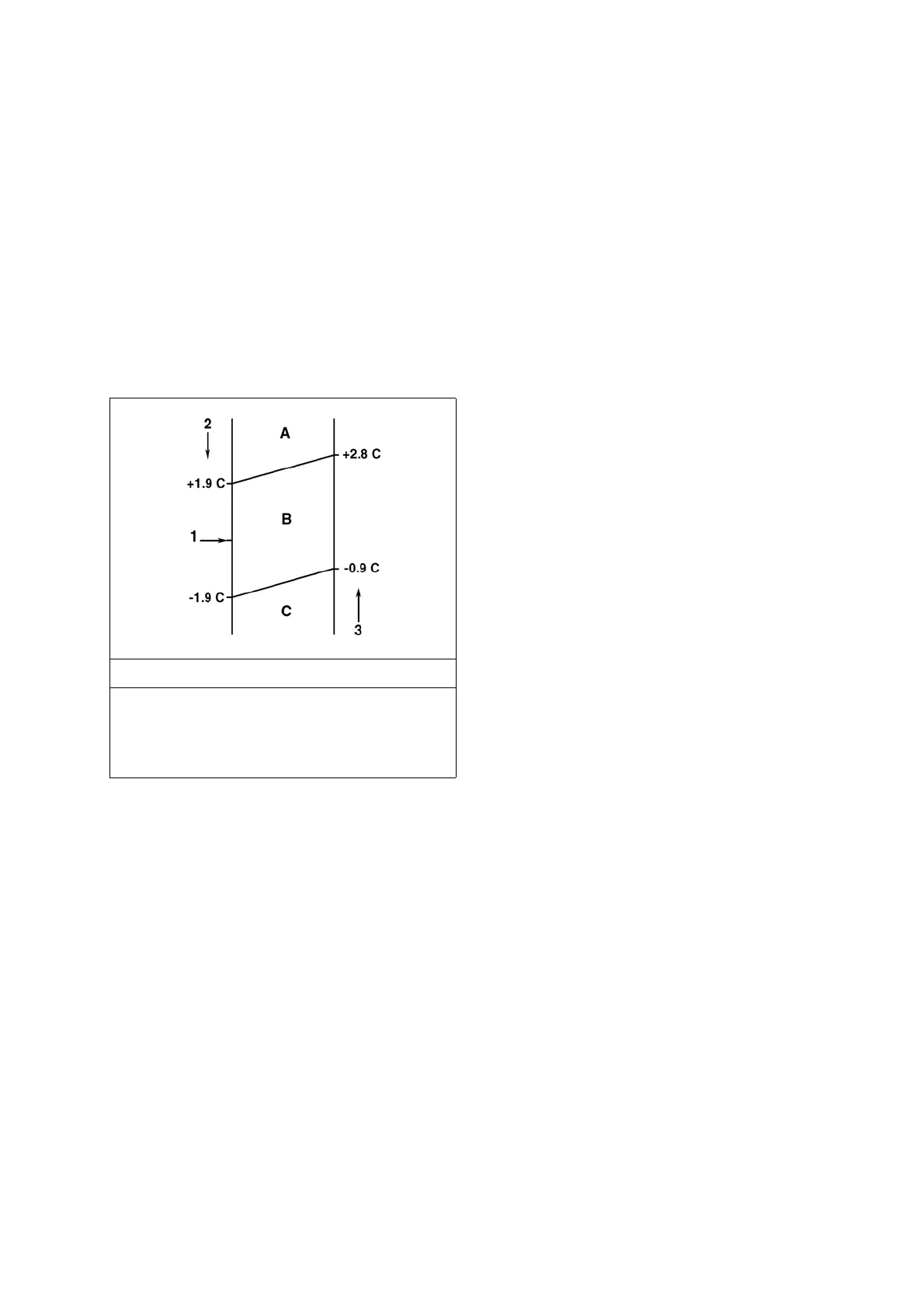

Basic Operating Modes – Electric Operation
1. Setpoint
2. Temperature Decrease
3. Temperature Increase
A. Cool
B. Null
C. Heat
