6
Maintenance
Cleaning the Q00 Ion Optics
Thermo Scientific TSQ Series Hardware Manual 99
Reinstalling the Ion Optics Cage Assembly
To reinstall the ion optics cage assembly
1. Reinstall the 3.25 in. ID Viton™ O-ring into the groove on the ion source mount
assembly. See Figure 59.

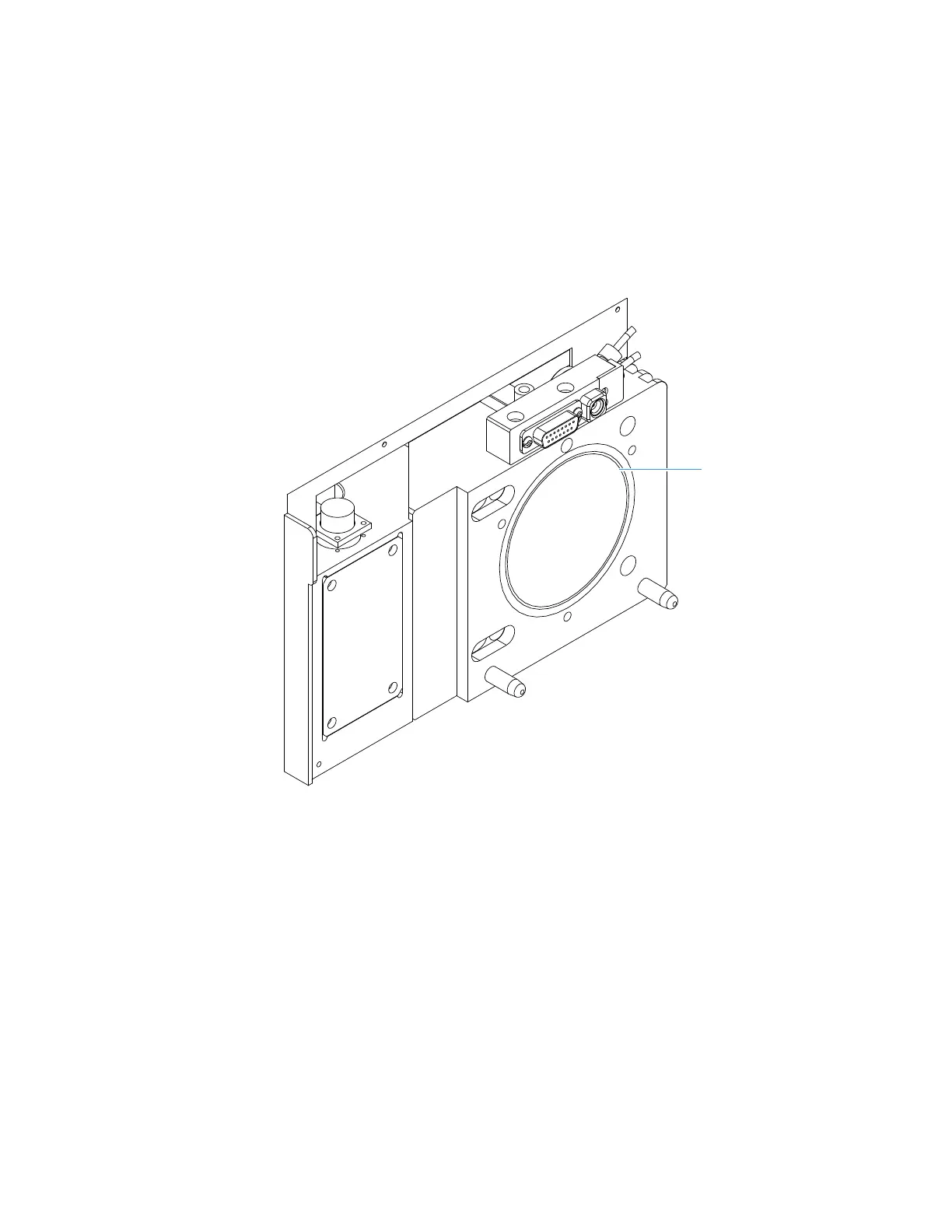

Figure 59. Ion source mount assembly, showing groove for O-ring
2. Orient the ion optics cage assembly with the contact pins down, and then partially insert
it into the ion source mount assembly.
3. Feed the cable harness into the roughing pump adapter and reconnect the cable. Rotate
the ion optics cage assembly if necessary.
4. Insert the ion optics cage assembly completely so that the two interstage contact pins are
inserted into the sockets in the ion source mount assembly.
5. Ensure that the 3.25 in. ID Viton O-ring is properly seated between the ion optics cage
assembly and the ion source mount assembly.
6. Carefully press the wiring harness down into the recess in the bottom of the ion source
mount assembly so that the wires are out of the path of the ion source interface assembly
that you will install in the next procedure. See Figure 60.
Groove for O-ring
