Removing and Reinstalling the Ion Source Housing
Installing the Ion Max or Ion Max-S Ion Source Housing
Thermo Scientific TSQ Series Hardware Manual 71
Installing the Ion Max or Ion Max-S Ion Source Housing
 To reinstall the Ion Max or Ion Max-S ion source housing
1. Align the two guide pin holes on the of the ion source housing with the ion source
housing guide pins on the mass spectrometer. Carefully press the ion source housing onto
the ion source mount. See Figure 39 and Figure 40.

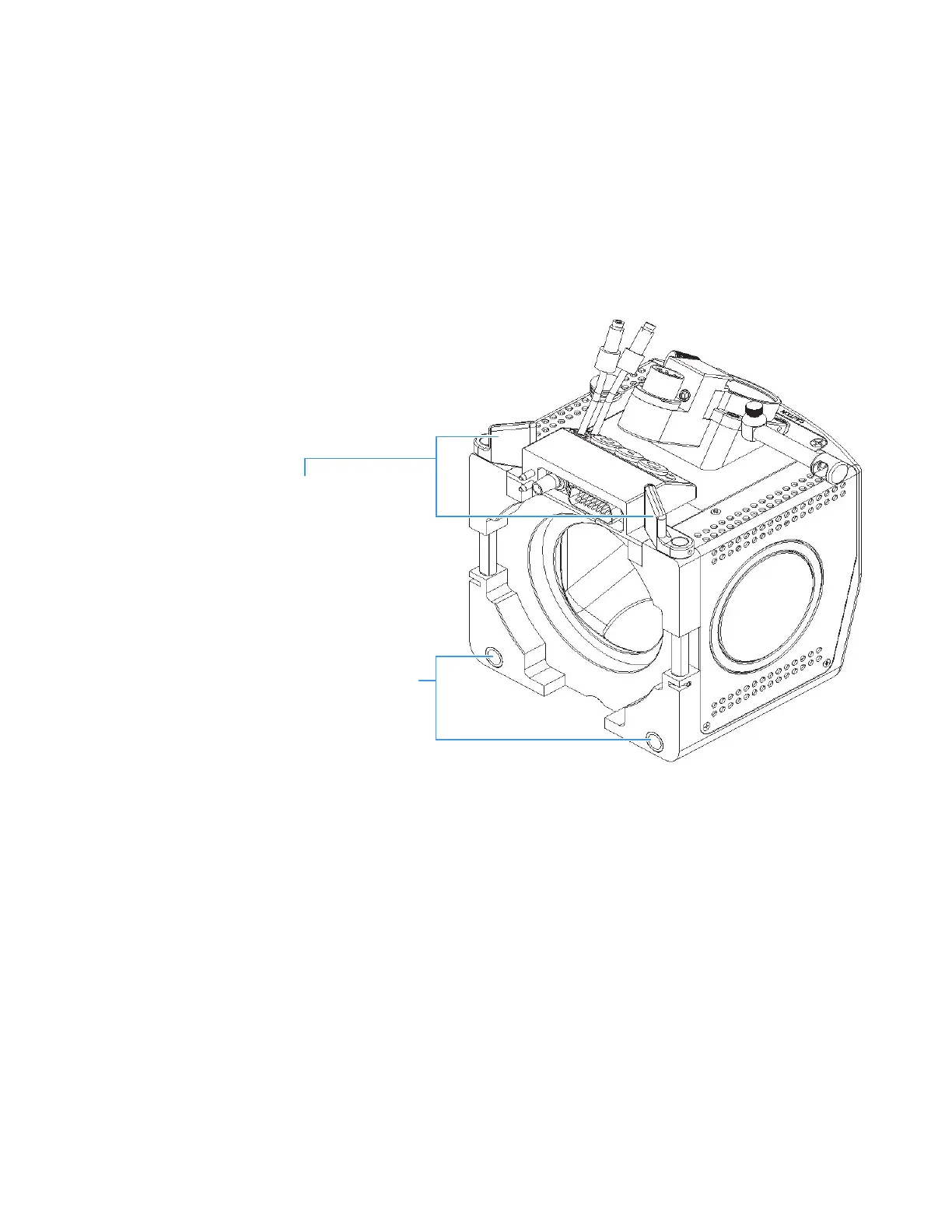

Figure 39. Ion source housing
Ion source housing
locking levers
Guide pin holes
