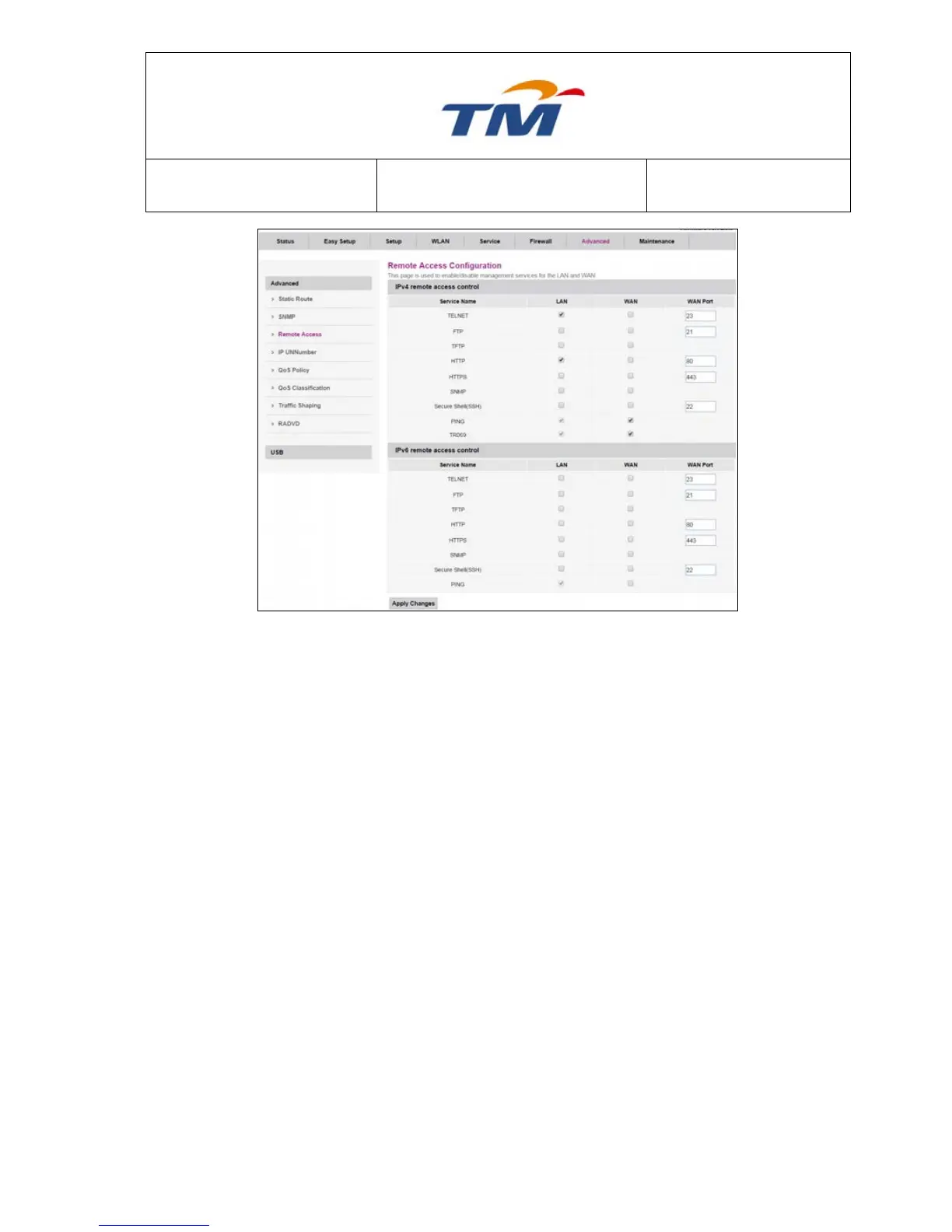

Service Name The service names you can choose: TELNET , FTP , TFTP , HTTP ,
HTTPS , SNMP , SSH , PING , TR069.
LAN Check/un-check the services on the LAN column to allow/un-allow the
services access from LAN side;
WAN Check/un-check the services on the WAN column to allow/un-allow
the services access from WAN side.
WAN Port This field allows the user to specify the port of the corresponding
service.
6.6.4 IP UNNumber
After enable IP UNNumber function, you can select a WAN connection, set the IP address, specify
the start and end addresses from the address pool for IP unnumber assignment. You can also set
port binding.
