3-88
Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)
8.8.5. Non-redundant configuration of switching hubs

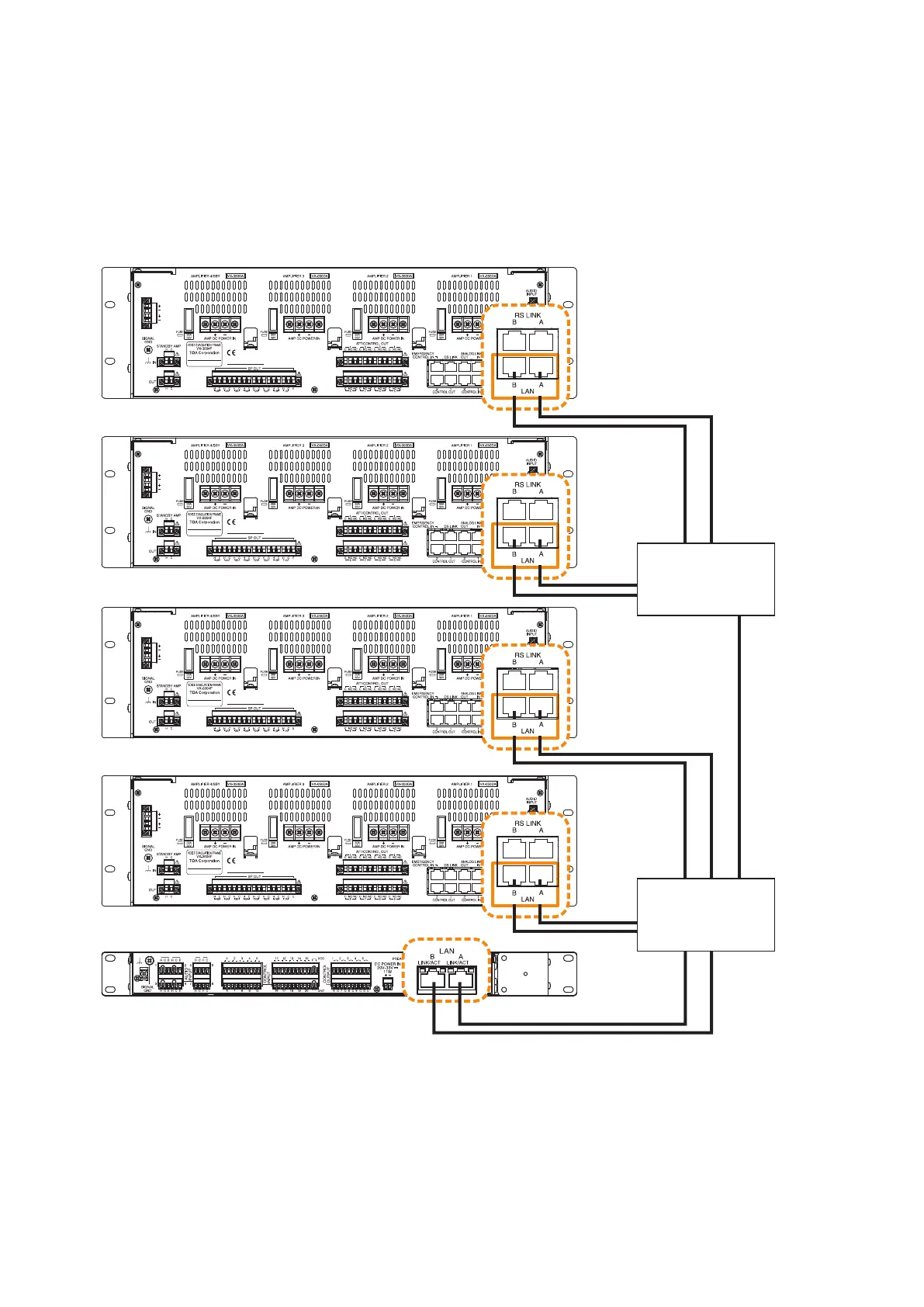

In the connection example below, both the LAN link terminals A and B of each VX-3000F or VX-3000PM unit
are connected to the same switching hub.
Notes
• Up to 7-level cascade is allowed for switching hub connections.
• After connection completion, reactivate the VX-3000 units.
VX-3000F
VX-3000F
VX-3000F
VX-3000F
VX-3000PM
Switching hub
Switching hub
Note: Contact your TOA dealer for more information on switching hubs.
To Next Page
