Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
6.15. Installing the RM-300X on a Wall
[Mounting hardware]
To mount the RM-300X on the wall, the following parts are required.
Wall mounting bracket for the RM-300X (model WB-RM200) .... 1 (option)
M3.5 x 20 screw for electrical box ............................................... 2 (supplied with the WB-RM200)
4 x 25 tapping screw for wooden wall ......................................... 2 (supplied with the WB-RM200)

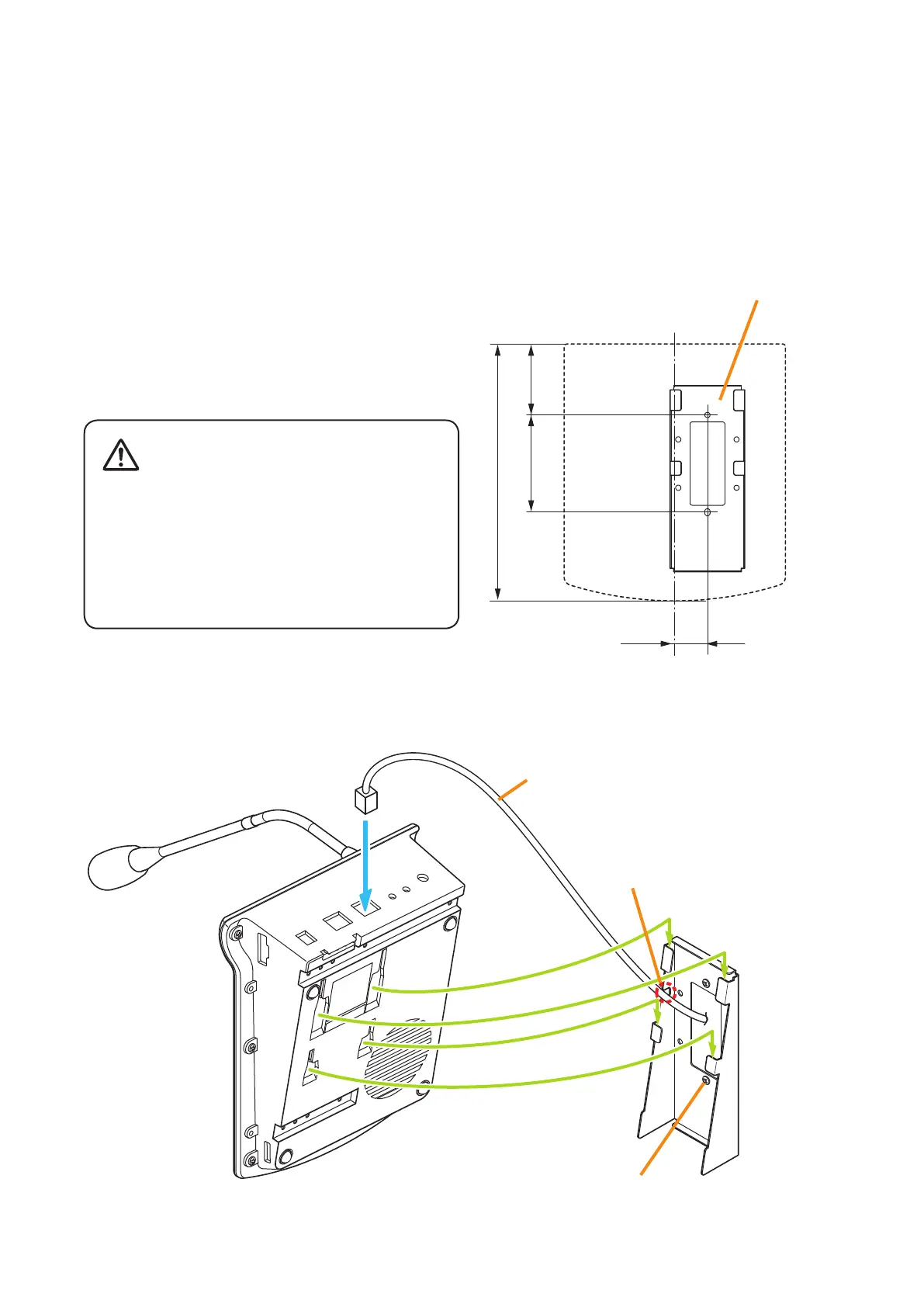

Step 1. Attach the WB-RM200 Wall-Mounting
Bracket on the wall.
In this case, leave the LINK cable out of the
notch in the bracket.
Note
Since there are 2 types of mounting screws
for an electrical box and for wall. Select ones
according to the mounting method.
60.883.5
220.3
28
RM-300X
WB-RM200
(option)
Unit: mm
[WB-RM200 mounting dimensions]
• Install the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may result in
the unit falling down and causing personal injury
and/or property damage.
• Be sure to use 2 screws when mounting the
bracket to the wall.
WARNING
Step 2. Hook the bottom surface of the RM-300X onto the WB-RM200.
Step 3. Plug the LINK cable into the RM-300X's RM link connector.
RM-300X
LINK
1
2
3
Wall mounting bracket
WB-RM200 (option)
Wall mounting screw
(supplied with the WB-RM200)
LINK cable
Notch
RM LINK
RM LINK
