6.10. Compressor Function Setting (RM-200SF and RM-300X only)
This change should only be performed by a qualified professional
electrician. If users open the unit case or modify the unit, this may
cause fire or electric shock.
WARNING
The compressor function enables even large signals to be broadcast without distortion. (This function is factory-
preset to ON.)
Notes
• Turn off the power before starting this work.
• To avoid damage from static electricity, never touch the parts on the circuit board.
[RM-200SF]

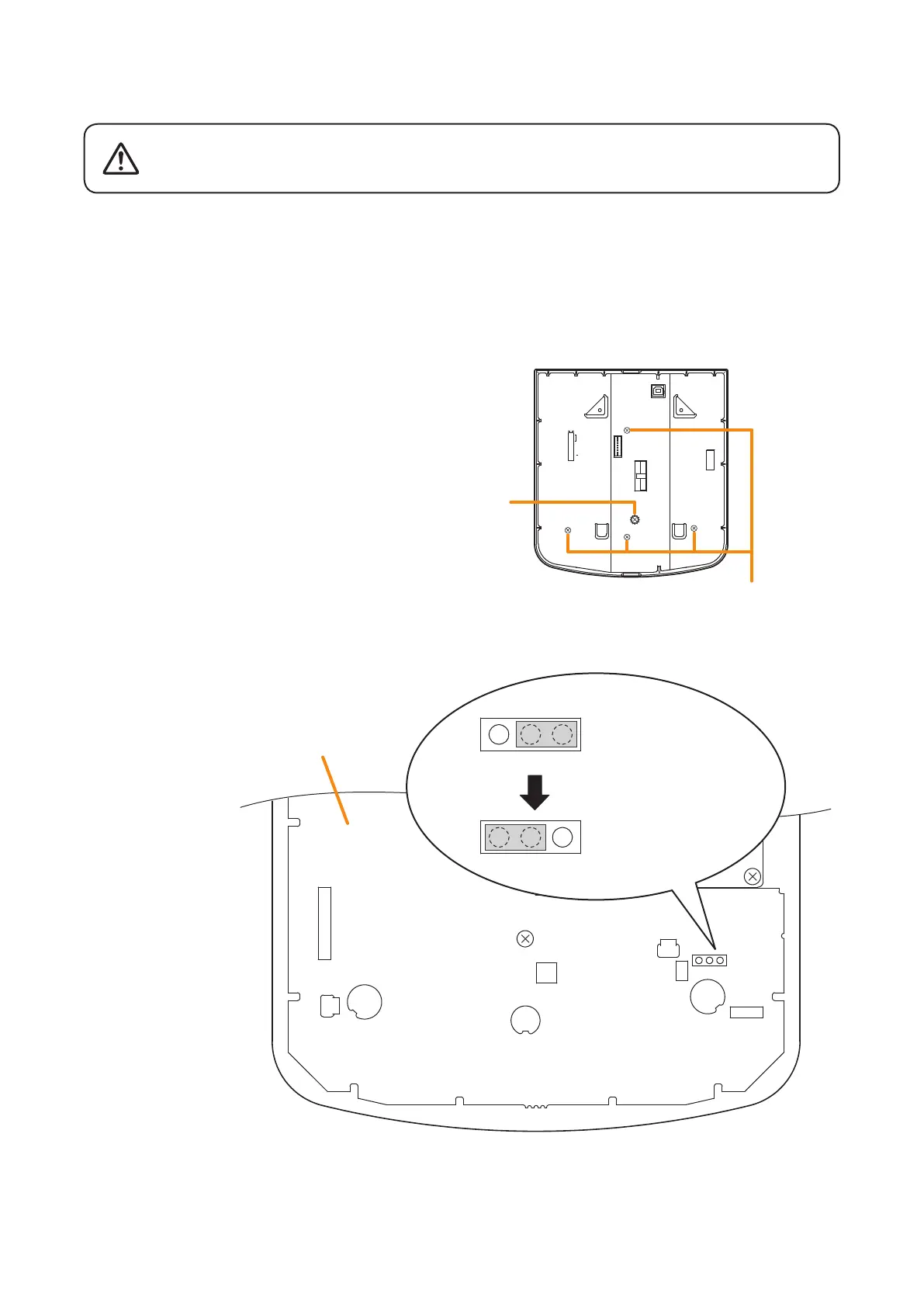

Step 1. Unscrew 5 screws in the gure at right, then
detach the RM -200SF's rear plate.
Note
Note the specic shapes of the different screws.
Step 2. Set the jumper's position (JP301) on the circuit board attached to the front case as shown below.
Step 3. Replace the RM-200SF's rear plate.
Note: Note the specic shapes of the different screws when replacing the rear plate. (See Step 1.)
JP301
RM-200SF inner circuit board
JP301
When the compressor
function is used.
(Factory-preset)
When the compressor
function is not used.
JP301
