6.4. CPU Off Function (All-Zone Emergency Broadcast) Settings
(RM-200SF: Switch 6 operation or RM-300X: Switch 5 operation)

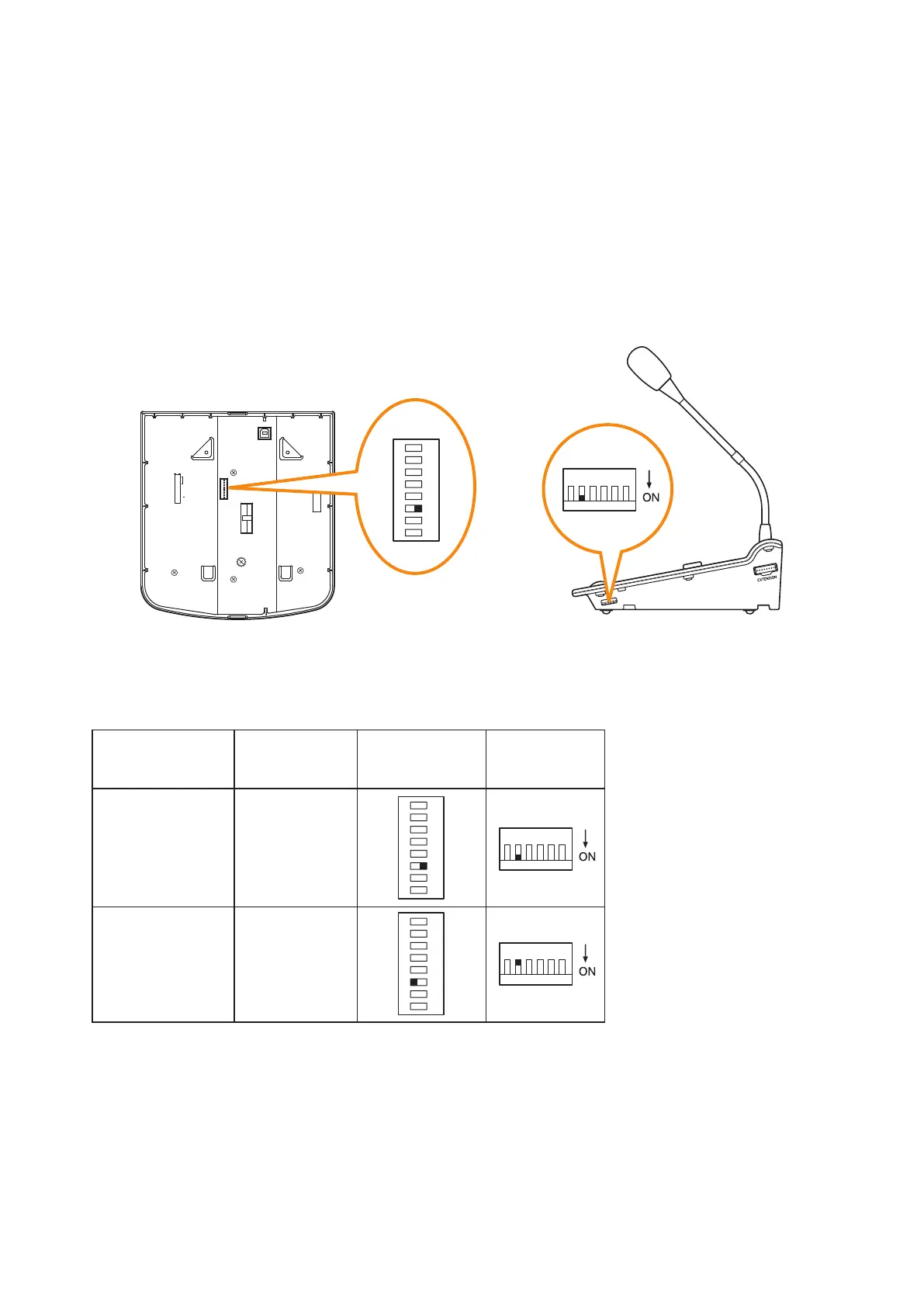

The CPU off function permits the all-zone calls to be made from the RM-200SF or RM-300X by bypassing the
CPU* normally used by the VX-3000F and using an analog link instead. This function is usually used if a system
failure is preventing normal broadcasts from being made. Announcement from the RM-200SF can be made to
all zones within the system only while the Talk Switch is being pressed with the CPU switch on its front panel
set to OFF, or announcement from the RM-300X can be made to the said zones while its All-Zone Emergency
Broadcast key is being held down for 4 seconds or more. Whether or not this function is available can be set
using switch 6 of the DIP switch on the rear panel of the RM-200SF or switch 5 on the side panel of the RM-
300X. (Regarding how to make such broadcasts, see the separate Operating Instructions, "OPERATION.")
* CPU is a central processing unit, which is built in the VX-3000F.
