Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)
4. VX-3000PM PREAMP MATRIX PANEL
4.1. Setting the IP Address
When Switch 1 of the IP address setting switch inside the front panel is placed in the ON position, the VX-
3000PM's IP address will be automatically determined as follows depending on the settings of Switches 2
through 8.

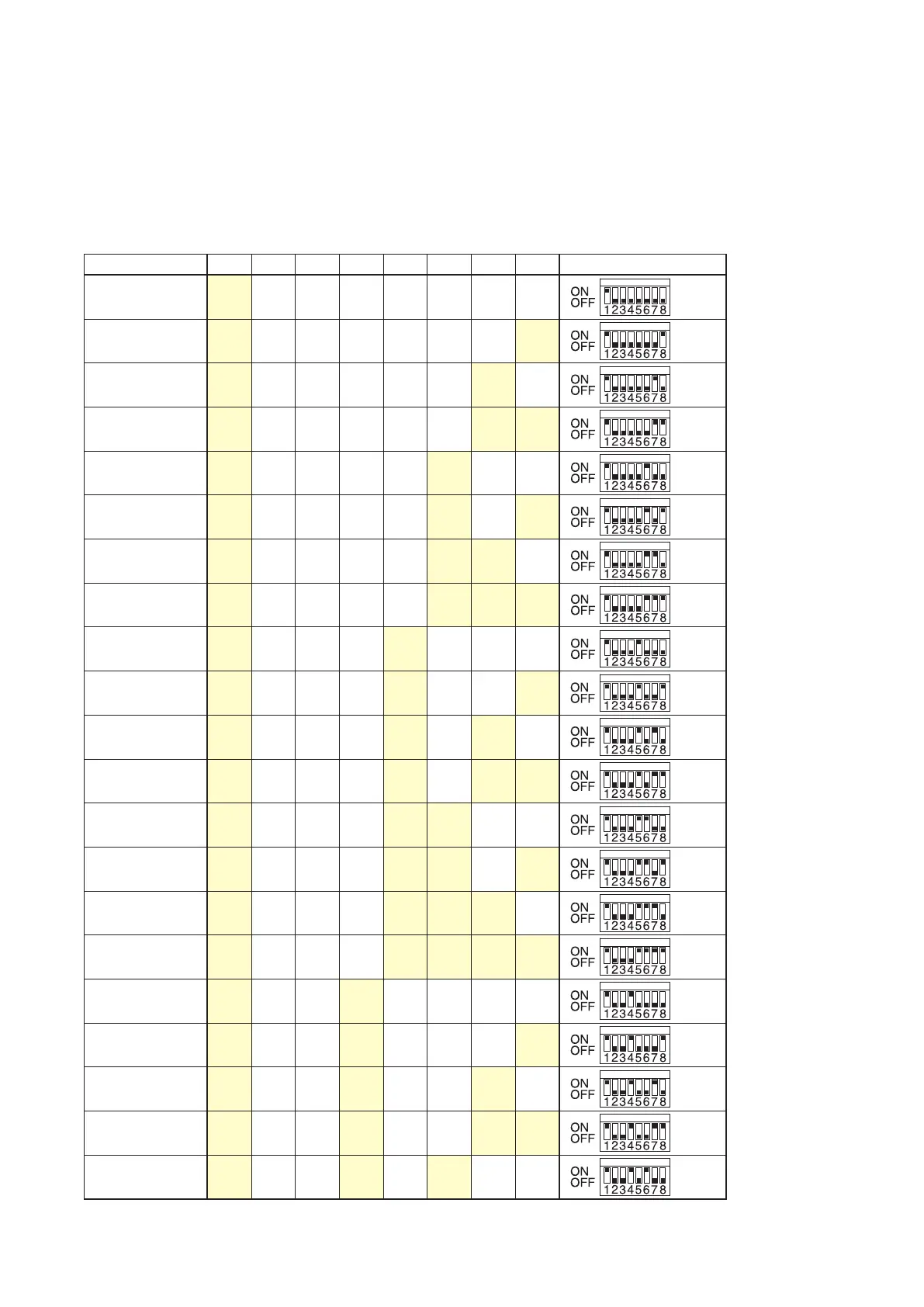

[IP address setting table]
IP address SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 IP address setting switch
192.168.14.51 ON OFF OFF OFF OFF OFF OFF OFF
192.168.14.52 ON OFF OFF OFF OFF OFF OFF ON
192.168.14.53 ON OFF OFF OFF OFF OFF ON OFF
192.168.14.54 ON OFF OFF OFF OFF OFF ON ON
192.168.14.55 ON OFF OFF OFF OFF ON OFF OFF
192.168.14.56 ON OFF OFF OFF OFF ON OFF ON
192.168.14.57 ON OFF OFF OFF OFF ON ON OFF
192.168.14.58 ON OFF OFF OFF OFF ON ON ON
192.168.14.59 ON OFF OFF OFF ON OFF OFF OFF
192.168.14.6 0 ON OFF OFF OFF ON OFF OFF ON
192.168.14.61 ON OFF OFF OFF ON OFF ON OFF
192.168.14.62 ON OFF OFF OFF ON OFF ON ON
192.168.14.6 3 ON OFF OFF OFF ON ON OFF OFF
192.168.14.6 4 ON OFF OFF OFF ON ON OFF ON
192.168.14.6 5 ON OFF OFF OFF ON ON ON OFF
192.168.14.6 6 ON OFF OFF OFF ON ON ON ON
192.168.14.67 ON OFF OFF ON OFF OFF OFF OFF
192.168.14.6 8 ON OFF OFF ON OFF OFF OFF ON
192.168.14.6 9 ON OFF OFF ON OFF OFF ON OFF
192.168.14.70 ON OFF OFF ON OFF OFF ON ON
192.168.14.71 ON OFF OFF ON OFF ON OFF OFF
