3-39
Chapter 3
INSTALLATION AND SETTING PROCEDURES (HARDWARE)
6.12. Installing the RM-200SF on a Wall
The RM-200SF is designed for on-wall installation.
[Mounting hardware]
To mount the RM-200SF on the wall, the following parts are required.
Wall mount bracket unit .............................................................. 1 (supplied with the RM-200SF)
Wall mounting screws
4 x 25 tapping screw for wooden wall ................................... 2 (supplied with the RM-200SF)
M3.5 x 20 screw for electrical box ......................................... 2 (supplied with the RM-200SF)
[Ferrite cable clamp attachment]
The supplied ferrite clamp needs to be attached to the Link cable as illustrated below.
As its mounting timing differs depending on the installation way of the RM-200SF, mount the clamp in the
appropriate installation step.

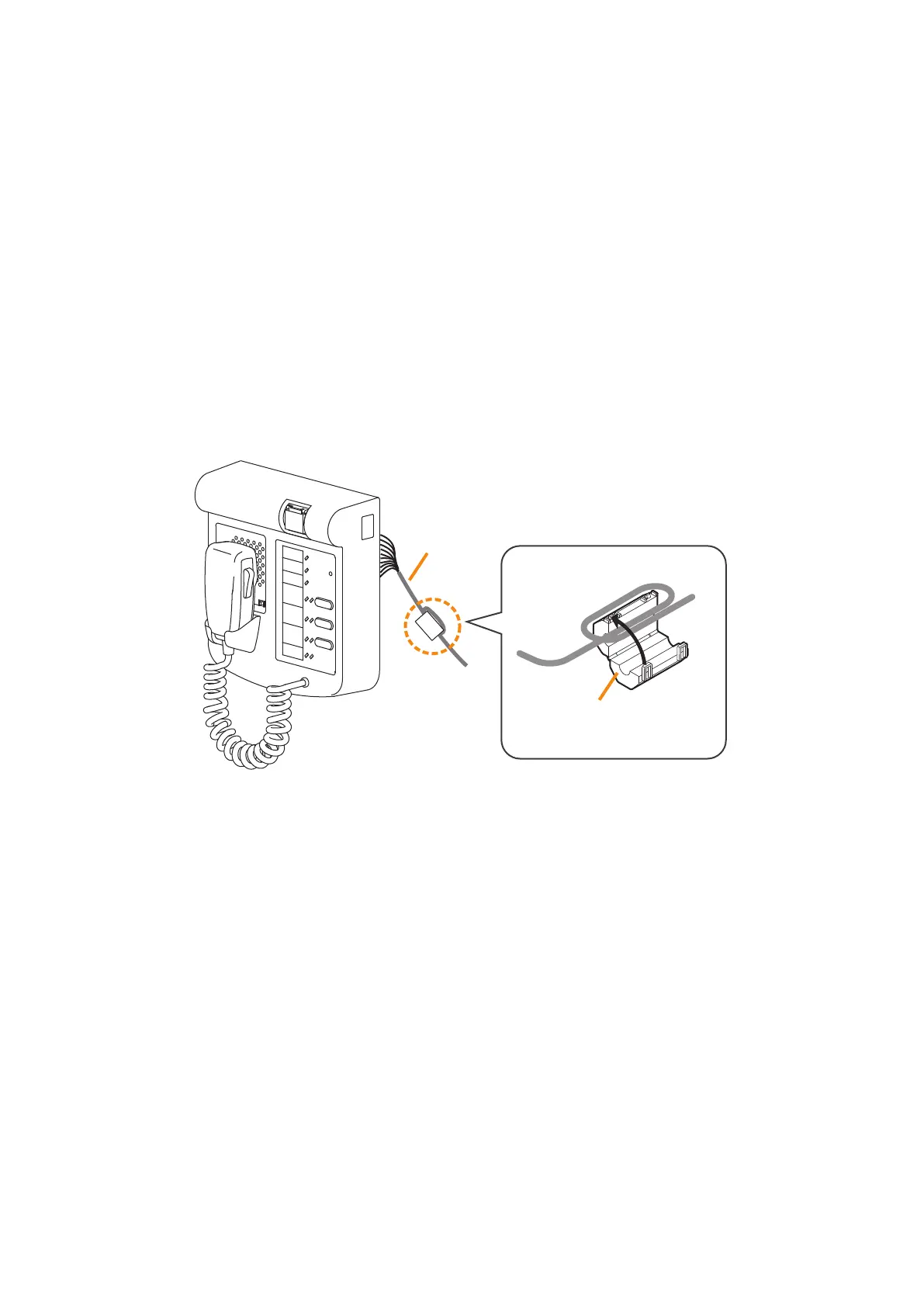

Mount the ferrite clamp (supplied with the RM-200SF) on the
cable in a way that the cable is looped one turn as illustrated.
(This countermeasure is for complying with the CE marking.)
RM-200SF
Ferrite clamp
(Supplied with the RM-200SF)
Loop the cable one turn.
Link cable
To Next Page
