NOMENCLATURE AND FUNCTIONS
3. VX-300LO LINE OUTPUT MODULE
• The VX-300LO is a module that outputs the VX-3000F's audio signals at the line level.
• Designed to be installed in the VX-3000F, it outputs audio signals from the VX-3000F to an external device.
1. DA control link connector
Connect this connector to the DA control link
connector of the VX-3000F to which this module is
installed using the supplied harness.
2. Volume control
Fine adjusts the output level in the range of –∞
to 0 dB depending on the input sensitivity of the
connected device.
Rotate this control clockwise to increase the
volume level and counterclockwise to decrease it.
The output level is factory-preset to "0 dB."
3. Fixing screw hole
Secure the module to the VX-3000F with the
supplied screw.
4. Audio output terminal
Removable terminal block (3P)
Outputs audio signals at the line level.

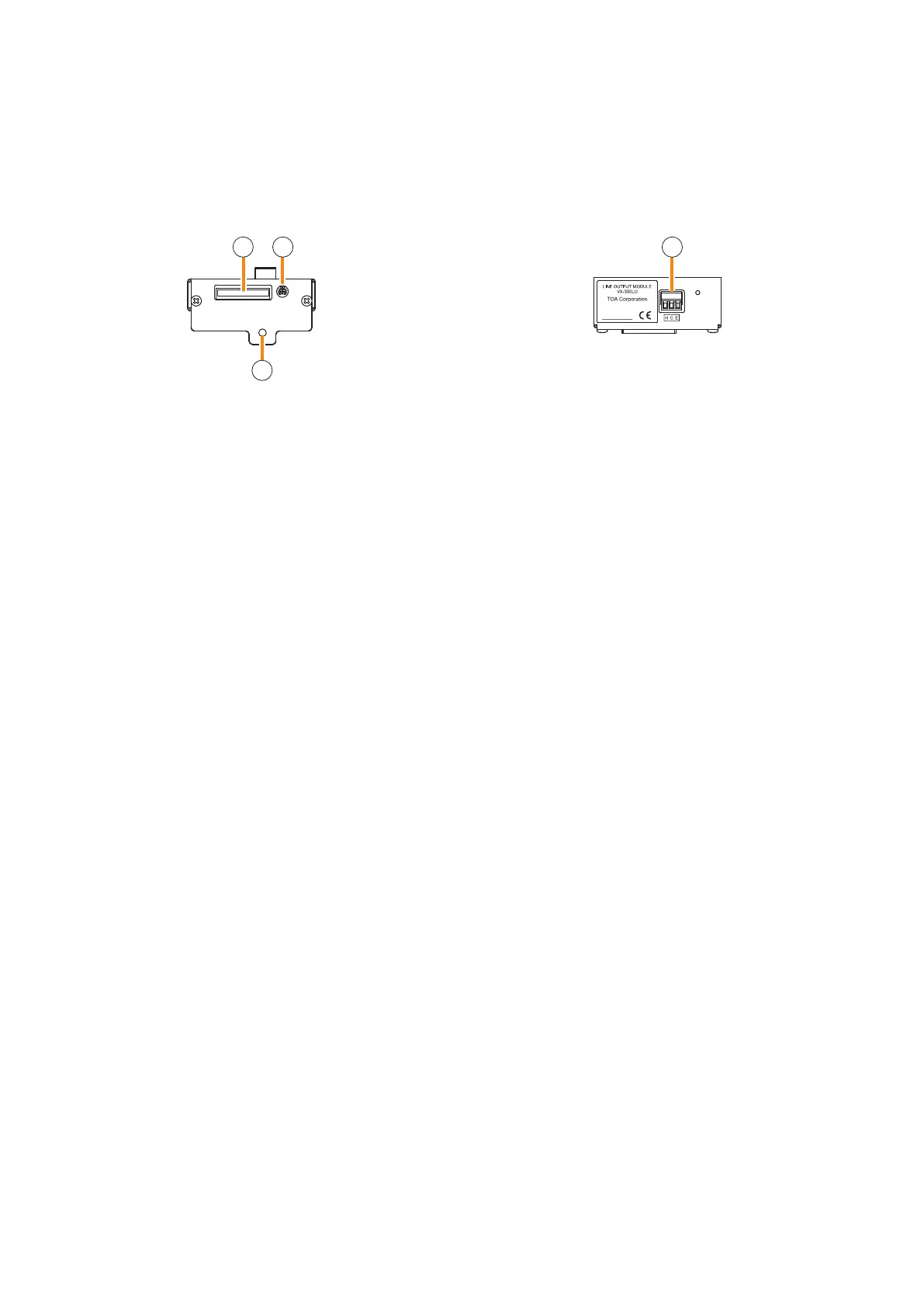

[Front]
[Top]
1
3
2
4
