Toa VX-050DA - Installing the RM-210 F on a Wall (RM-300 X Only)

3-47
Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
6.16. Installing the RM-210F on a Wall (RM-300X Only)
[Mounting hardware]
To mount the RM-210F on the wall, the following parts are required.
Wall mounting bracket for the RM-210F (model WB-RM 200) .... 1 (option)
M3.5 x 20 screw for electrical box ............................................... 2 (supplied with the WB-RM200)
4 x 25 tapping screw for wooden wall ......................................... 2 (supplied with the WB-RM200)
Step 1. Mount the RM-300X on the wall. (See p. 3-46.)
Step 2. Attach the WB-RM200 Wall-Mounting Bracket for mounting the RM-210F on the wall.

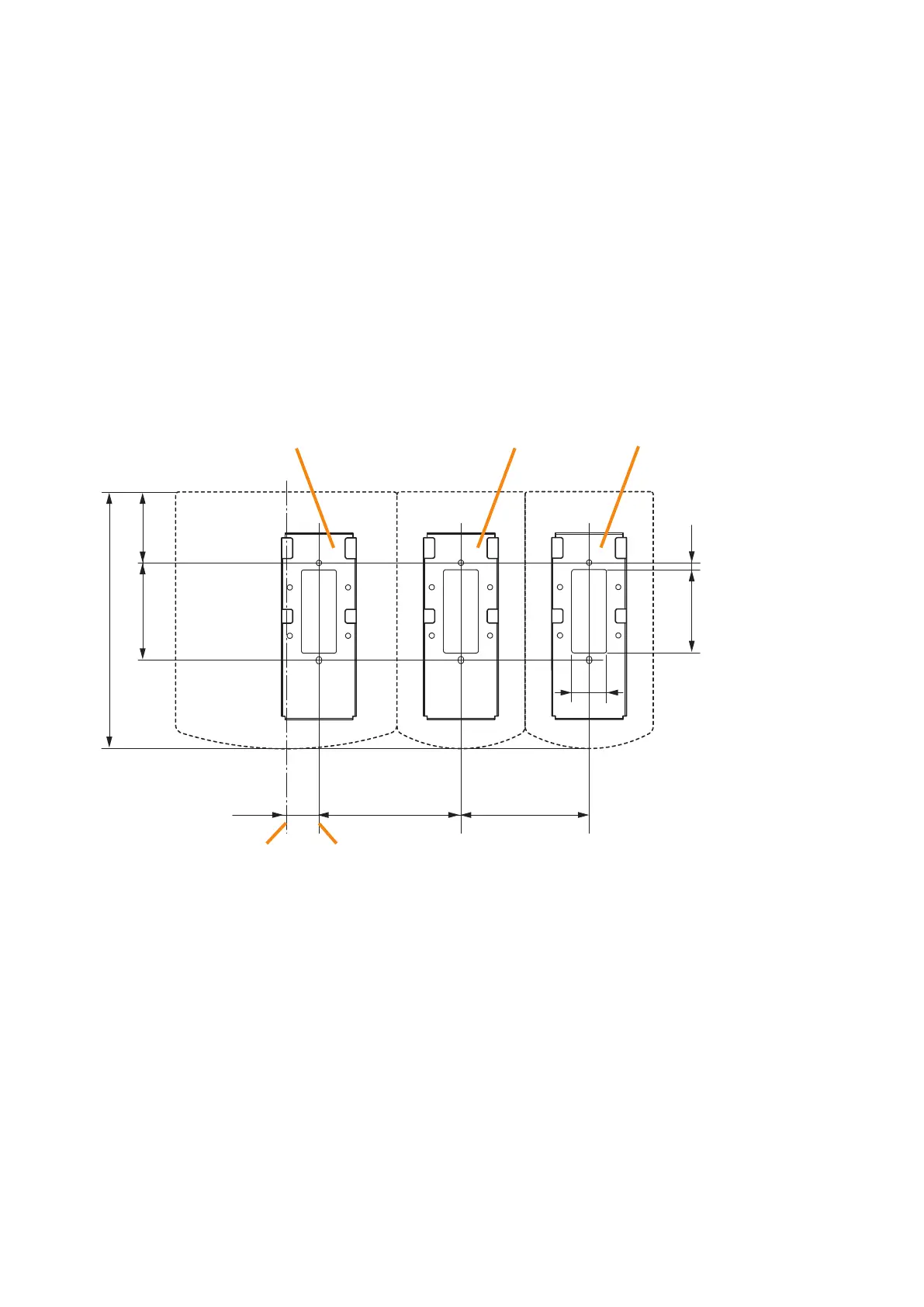

[WB-RM200 mounting dimensions]
60.883.5
220.3
123
111
30
28
71.5 6
RM-300X RM-210F RM-210F
WB-RM200
(option)
WB-RM200
(option)
WB-RM200
(When adding another RM-210F)
RM-300X's
center line
Wall mount bracket
unit's center line
Unit: mm
