6.17. Installing the RM-500 on a Wall
[Mounting hardware]
To mount the RM-500 on the wall, the following parts are required.
Wall mounting bracket WB-RM500 ............................................. 1 (option)
4 x 25 tapping screw (for direct wall mounting) ........................... 2 (supplied with the WB-RM500)
M4 x 20 machine screw (for mounting to the switch box) ........... 2 (supplied with the WB-RM500)
6.17.1. Changing the orientation of the microphone
The RM-500’s microphone is installed in the orientation
shown on the right gure by default.
When mounting the RM-500 on the wall, change the
orientation of the microphone following the procedure
below.
Screw
RM-500
Screw
Microphone fixing cover
1
2
4
3
Screws removed
in Step 1.
1
2

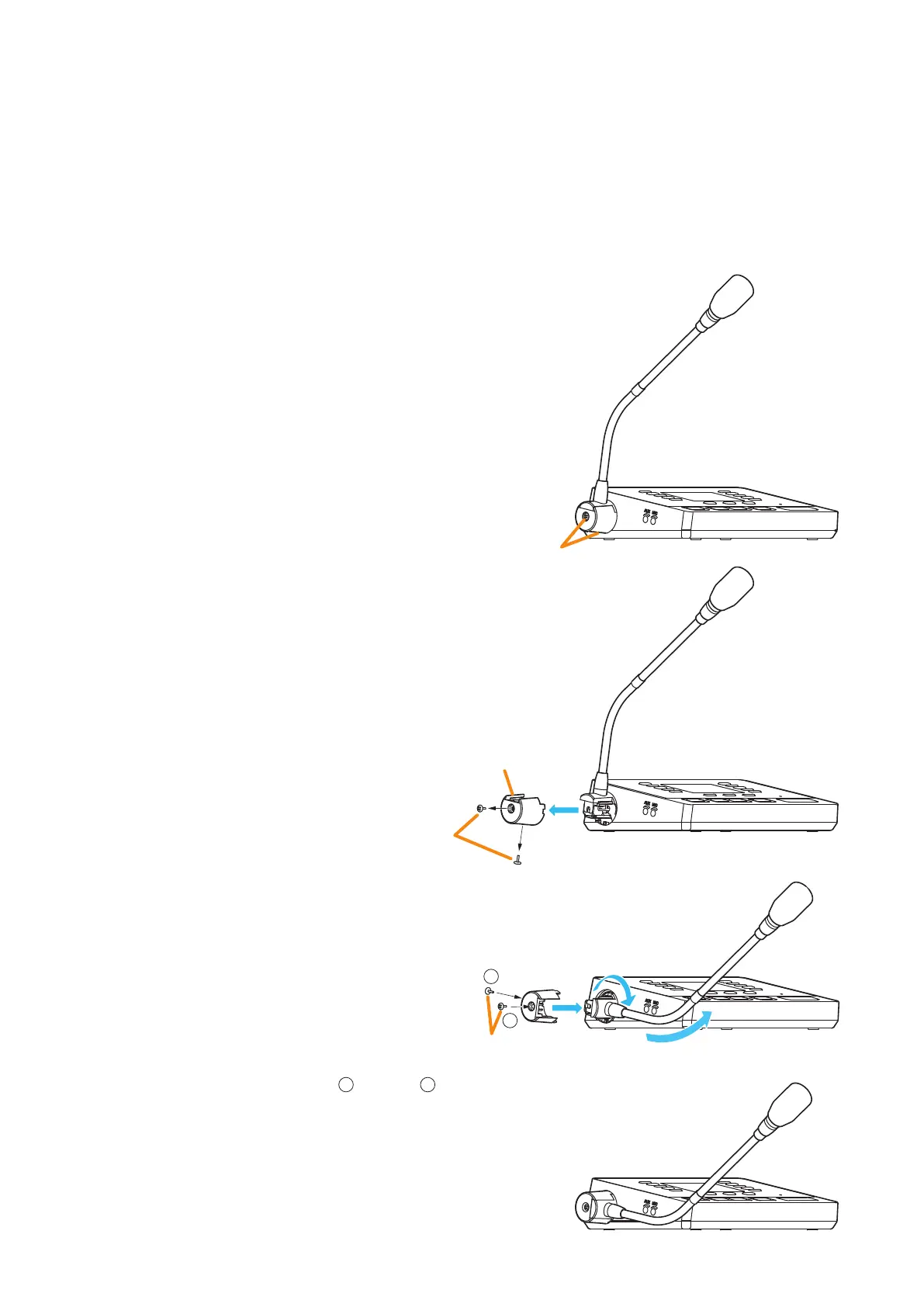

Step 1. Remove 2 screws securing the microphone,
then detach the microphone xing cover.
Step 2. Rotate the microphone 90° as shown at right.
Note
The microphone can be xed only at the
specied angle.
Be careful not to pinch the cable when
rotating it to avoid damage to the cable.
Doing otherwise may result in malfunction.
Step 3. Attach the microphone xing cover so that it
ts in place to x the microphone, then secure
the cover with 2 screws removed in Step 1.
Notes
• Be sure to install the screws
1
rst, then
2
in
the gure.
• When securing the cover, be sure to check
the screw holes and tighten the screws
correctly.
Step 4. Change the direction of the microphone for
an appropriate position.
