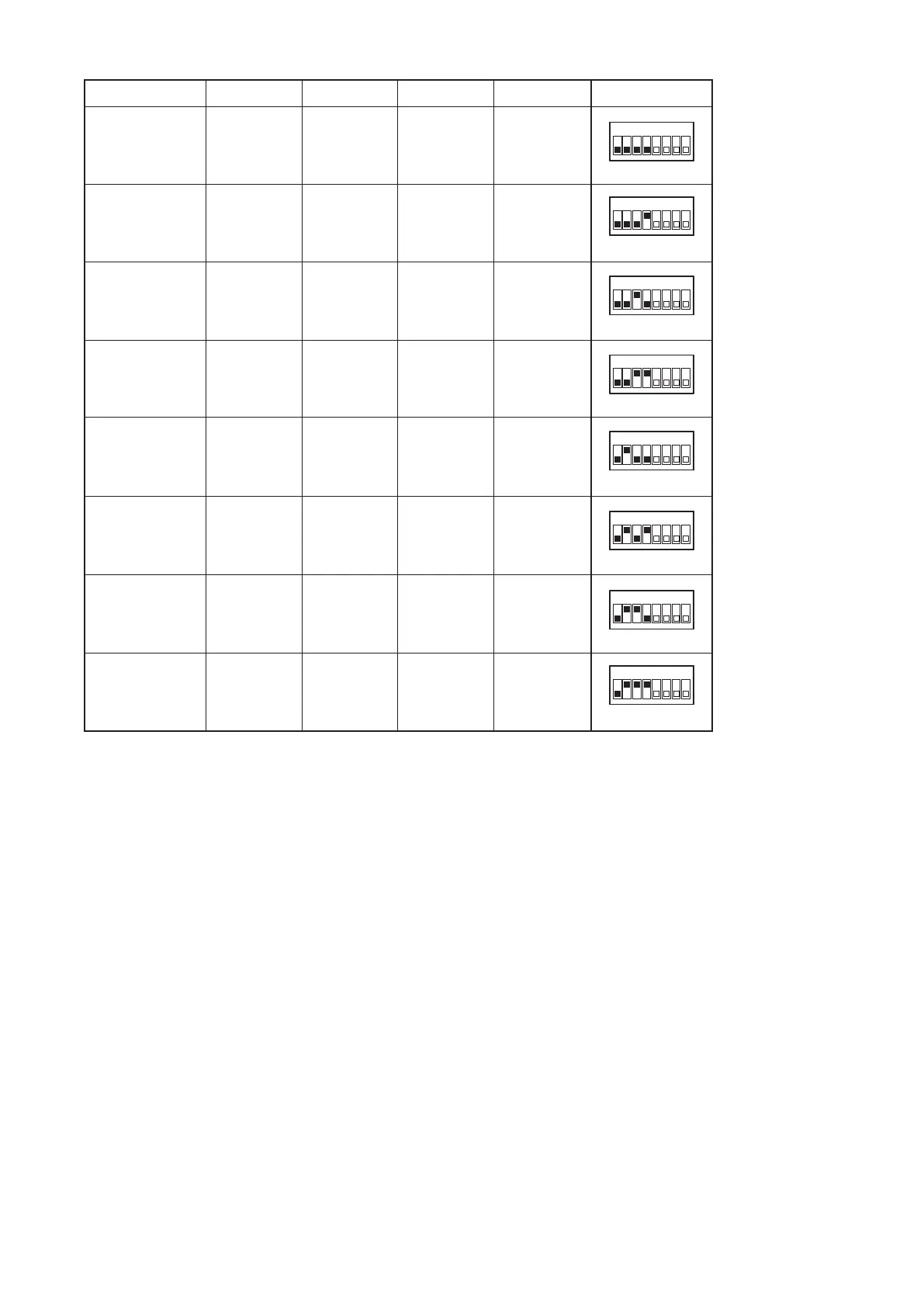

Chapter 3 INSTALLATION AND SETTING PROCEDURES (HARDWARE)
Device number Switch 3Switch 1 Switch 2 Switch 4 RM-500
0 OFF OFF OFF
(Default setting)
1
ON
2 3 4 5 6 7 8
1 OFF OFF ON
1
ON
2 3 4 5 6 7 8
2 OFF ON OFF
1
ON
2 3 4 5 6 7 8
3 OFF ON ON
1
ON
2 3 4 5 6 7 8
4 ON OFF OFF
1
ON
2 3 4 5 6 7 8
5 ON OFF ON
1
ON
2 3 4 5 6 7 8
6 ON ON OFF
1
ON
2 3 4 5 6 7 8
7 ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF ON ON
1
ON
2 3 4 5 6 7 8
