Page 2-4 Document Ref 909342-001 Rev 11
Site Preparation Quantium 410 Installation Manual

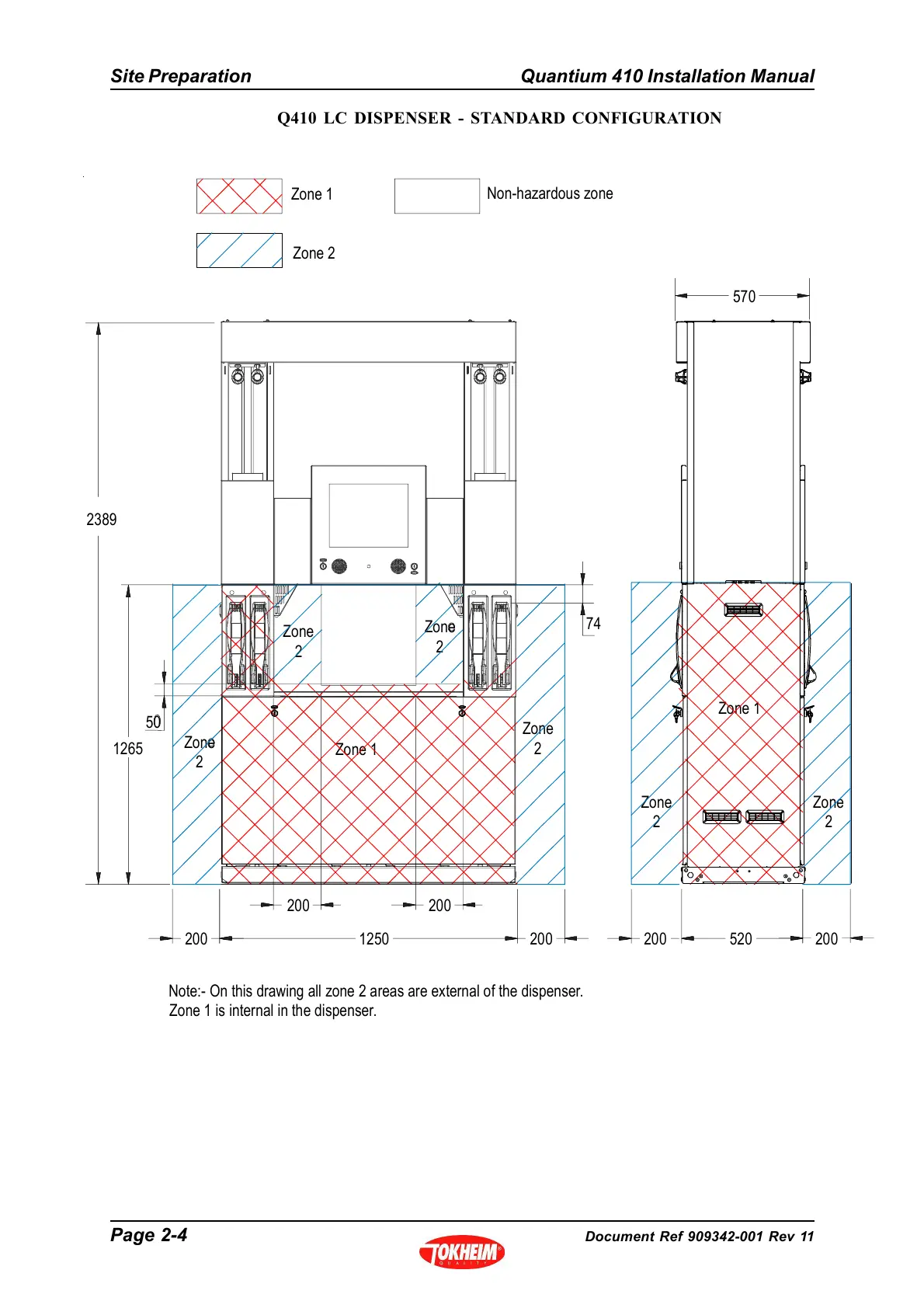

Q410 LC DISPENSER - STANDARD CONFIGURATION
1265
1250 200200
200 200
50
74
2389
520200
200
Zone 1
Zone
Zone
Zone
Zone
2
2
2
2
Zone
2
Zone
2
Zone 1
Zone 1
Zone 2
Non-hazardous zone
570
Note:- On this drawing all zone 2 areas are external of the dispenser.
Zone 1 is internal in the dispenser.
