Document Ref 909342-001 Rev 11 Page 5-19
Quantium 410 Installation Manual Installation

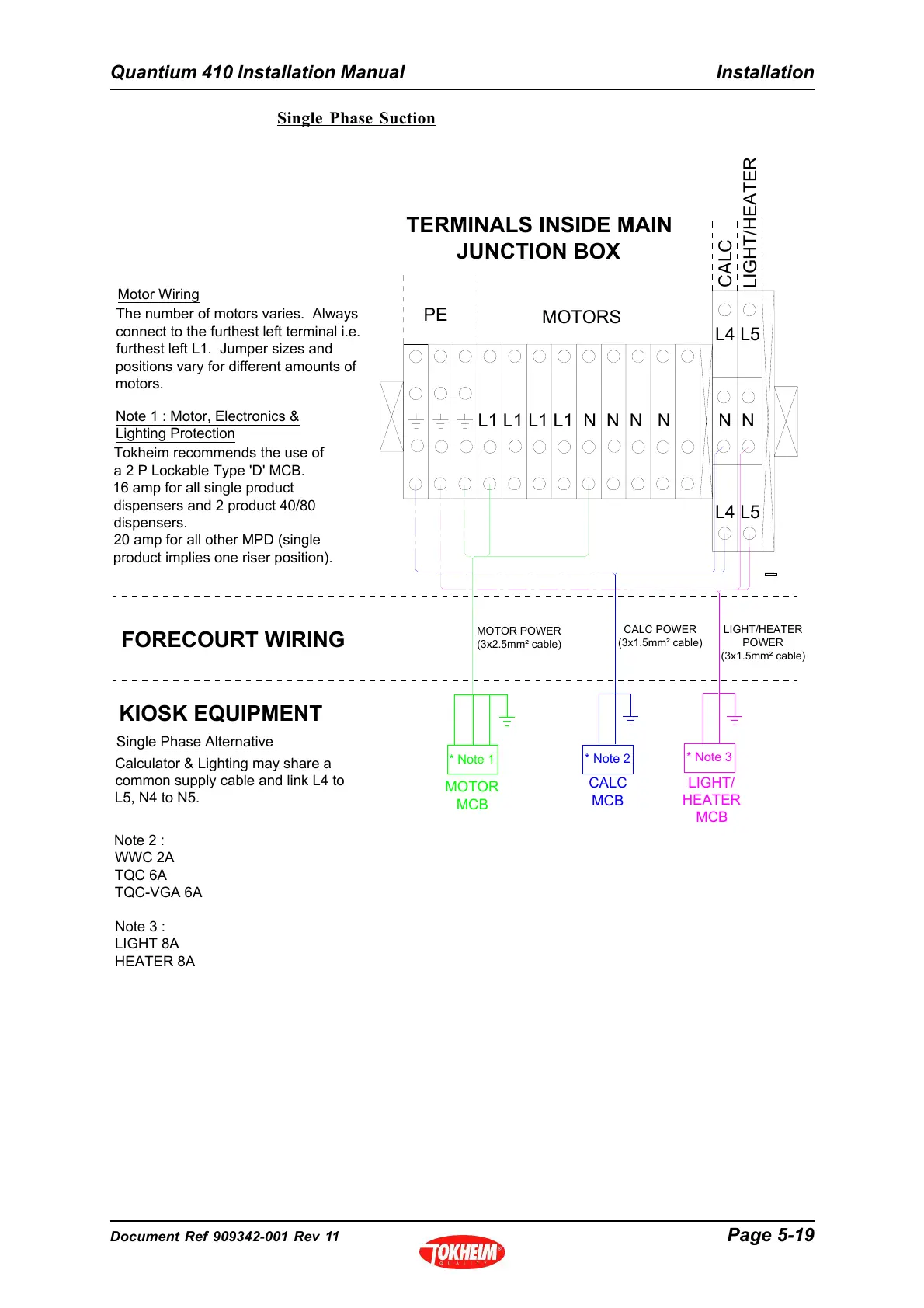

Single Phase Suction
MOTOR
MCB
* Note 1
MOTORS
TERMINALS INSIDE MAIN
JUNCTION BOX
FORECOURT WIRING
KIOSK EQUIPMENT
L1 L1 L1 L1 N N N N
PE
Motor Wiring
The number of motors varies. Always
connect to the furthest left terminal i.e.
furthest left L1. Jumper sizes and
positions vary for different amounts of
motors.
Tokheim recommends the use of
a 2 P Lockable Type 'D' MCB.
16 amp for all single product
dispensers and 2 product 40/80
dispensers.
20 amp for all other MPD (single
product implies one riser position).
Calculator & Lighting may share a
common supply cable and link L4 to
L5, N4 to N5.
Single Phase Alternative
CALC
L4 L5
N N
L4 L5
941939-0 02 Rev 2
CALC
MCB
LIGHT/
HEATER
MCB
* Note 2
* Note 3
LIGHT/HEATER
POWER
(3x1.5mm² cable)
CALC POWER
(3x1.5mm² cable)
MOTOR POWER
(3x2.5mm² cable)
LIGHT/HEATER
Note 2 :
WWC 2A
TQC 6A
TQC-VGA 6A
Note 3 :
LIGHT 8A
HEATER 8A
Note 1 : Motor, Electronics &
Lighting Protection
