Page 5-20 Document Ref 909342-001 Rev 11
Installation Quantium 410 Installation Manual

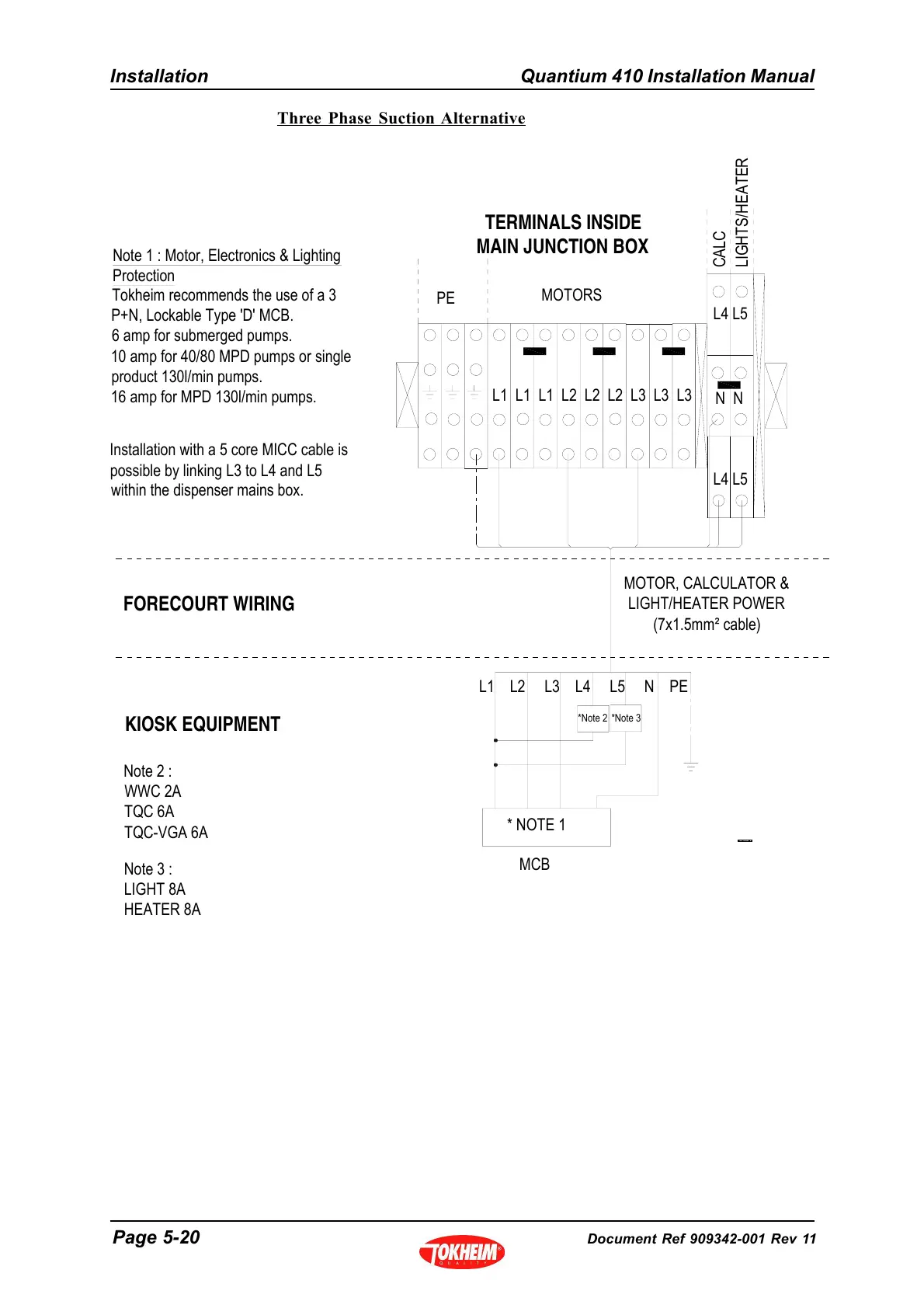

Three Phase Suction Alternative
KIOSK EQUIPMENT
TERMINALS INSIDE
MAIN JUNCTION BOX
Installation with a 5 core MICC cable is
possible by linking L3 to L4 and L5
within the dispenser mains box.
FORECOURT WIRING
Note 1 : Motor, Electronics & Lighting
Protection
Tokheim recommends the use of a 3
P+N, Lockable Type 'D' MCB.
6 amp for submerged pumps.
10 amp for 40/80 MPD pumps or single
product 130l/min pumps.
16 amp for MPD 130l/min pumps.
PE
MOTOR, CALCULATOR &
LIGHT/HEATER POWER
(7x1.5mm² cable)
*Note 2
* NOTE 1
MCB
L1 L1 L1 L2 L2 L2 L3 L3 L3
MOTORS
L1 L2 L3 L4 L5 N PE
N N
L4 L5
CALC
LIGHTS/HEATER
L4 L5
*Note 3
Note 2 :
WWC 2A
TQC 6A
TQC-VGA 6A
Note 3 :
LIGHT 8A
HEATER 8A
To Next Page
