Document Ref 909342-001 Rev 11 Page 5-21

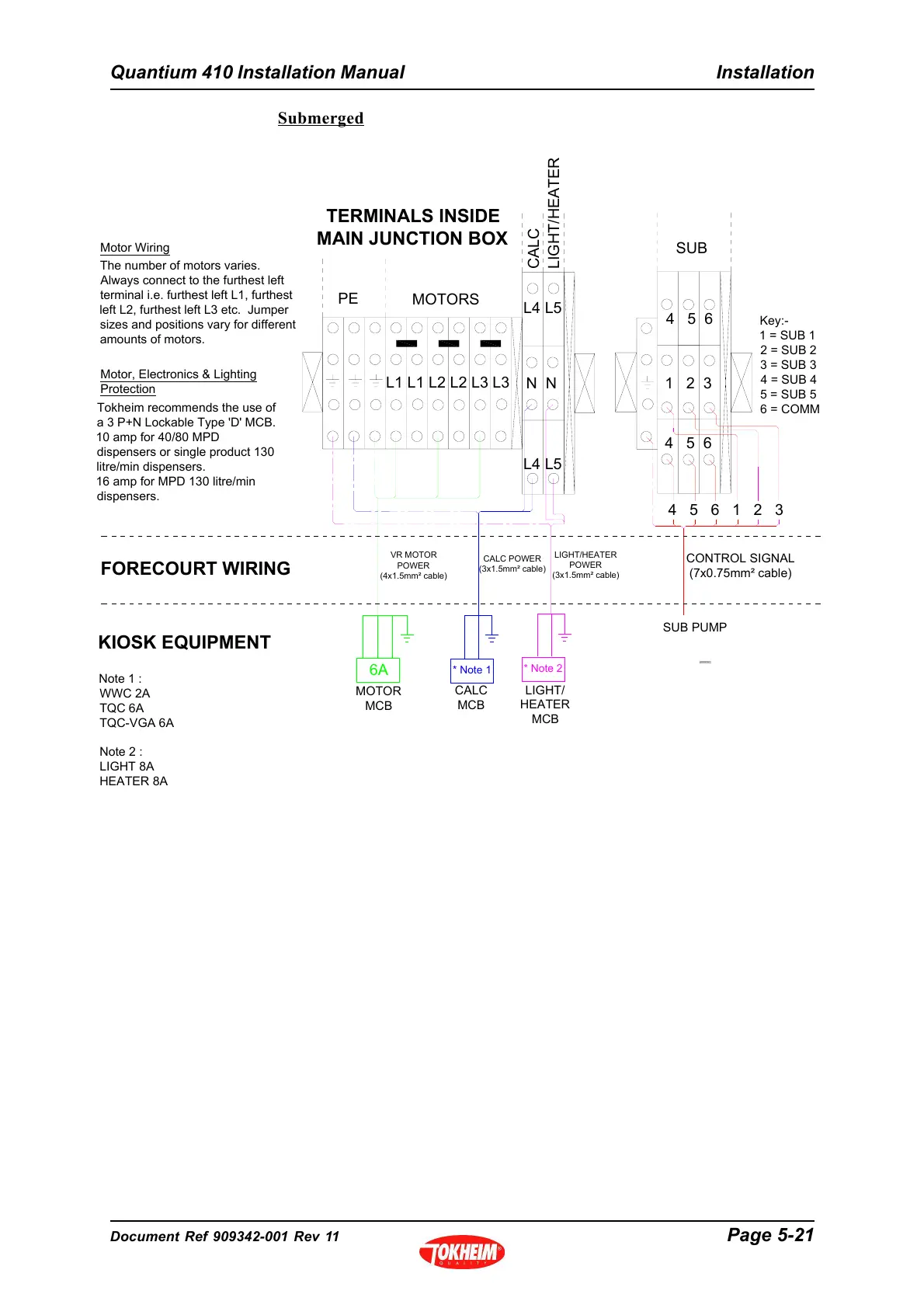

Quantium 410 Installation Manual Installation
Submerged
MOTOR
MCB
VR MOTOR
POWER
(4x1.5mm² cable)
CALC
MCB
CALC POWER
(3x1.5mm² cable)
MOTORS
TERMINALS INSIDE
MAIN JUNCTION BOX
FORECOURT WIRING
KIOSK EQUIPMENT
L1 L1 L2 L2 L3 L3
PE
Motor Wiring
The number of motors varies.
Always connect to the furthest left
terminal i.e. furthest left L1, furthest
left L2, furthest left L3 etc. Jumper
sizes and positions vary for different
amounts of motors.
Motor, Electronics & Lighting
Protection
Tokheim recommends the use of
a 3 P+N Lockable Type 'D' MCB.
10 amp for 40/80 MPD
dispensers or single product 130
litre/min dispensers.
16 amp for MPD 130 litre/min
dispensers.
CONTROL SIGNAL
(7x0.75mm² cable)
SUB
6A
1 2 3
4 5 6
4 5 6
4 5 6 1 2 3
SUB PUMP
Key:-
1 = SUB 1
2 = SUB 2
3 = SUB 3
4 = SUB 4
5 = SUB 5
6 = COMM
941939-003 Rev 2
N N
L4 L5
CALC
L4 L5
LIGHT/
HEATER
MCB
* Note 2
LIGHT/HEATER
LIGHT/HEATER
POWER
(3x1.5mm² cable)
* Note 1
Note 1 :
WWC 2A
TQC 6A
TQC-VGA 6A
Note 2 :
LIGHT 8A
HEATER 8A
