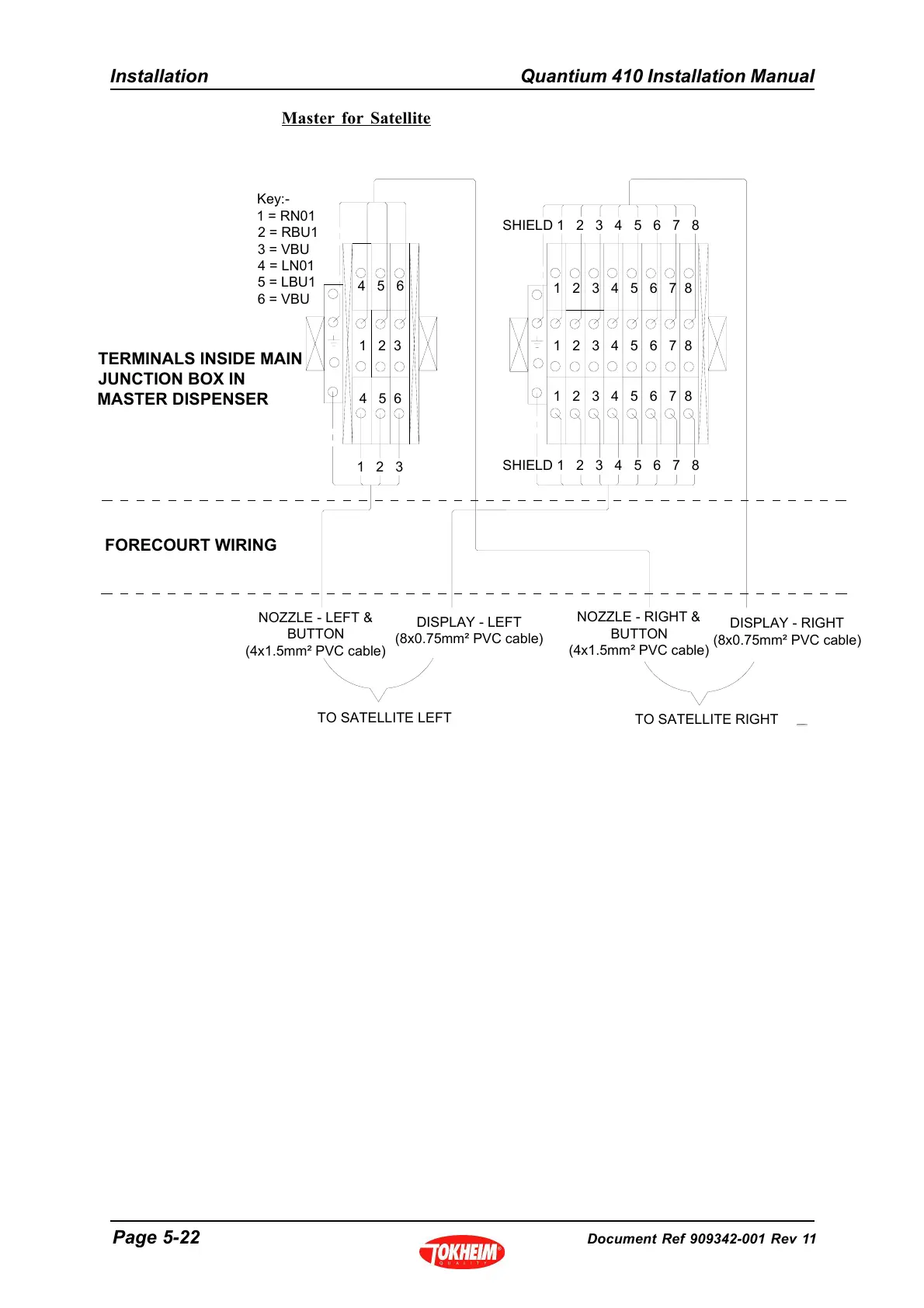

Master for Satellite
TERMINALS INSIDE MAIN
JUNCTION BOX IN
MASTER DISPENSER
FORECOURT WIRING
TO SATELLITE LEFT
TO SATELLITE RIGHT
DISPLAY - RIGHT
(8x0.75mm² PVC cable)
NOZZLE - LEFT &
BUTTON
(4x1.5mm² PVC cable)
DISPLAY - LEFT
(8x0.75mm² PVC cable)
NOZZLE - RIGHT &
BUTTON
(4x1.5mm² PVC cable)
1 2 3
4 5 6
4 5 6
Key:-
1 = RN01
2 = RBU1
3 = VBU
4 = LN01
5 = LBU1
6 = VBU
1 2 3 4 5 6 7 8
1 2 3
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
SHIELD 1 2 3 4 5 6 7 8
SHIELD 1 2 3 4 5 6 7 8
