Tokheim QUANTIUM 410 - Page 88

Page 5-32 Document Ref 909342-001 Rev 11
Installation Quantium 410 Installation Manual
Vidium and Payment
Fuse F5 6, 3A for Vidium
Fuse F4 1, 6A WWC
Rail Assy
942762
W1164 black
W1229 black
brown
brown
blue
blue
green/yellow
green/yellow
230Vac power Vidium
side A
230Vac power Vidium
side B

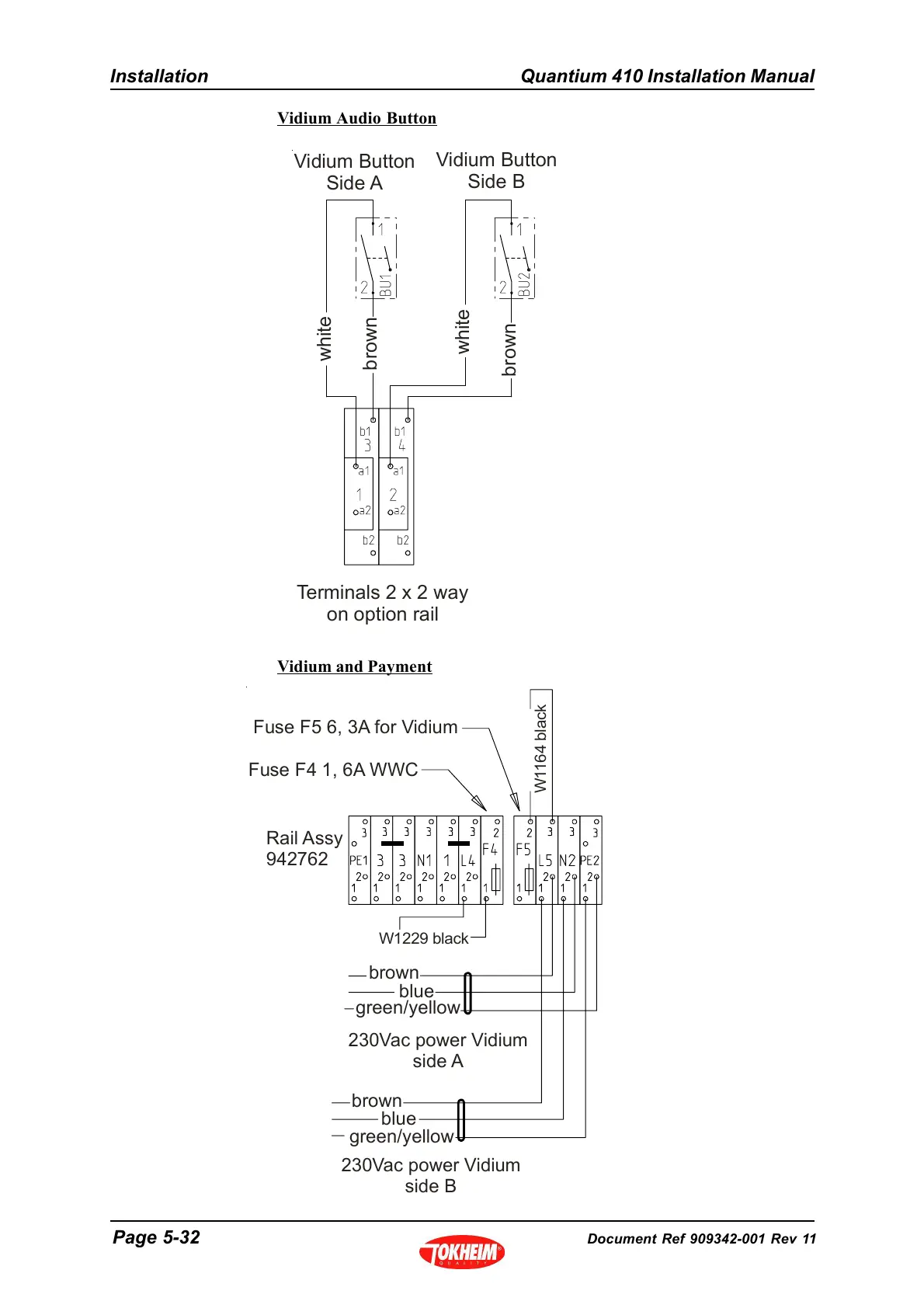

Vidium Audio Button
Vidium Button
Side A
Vidium Button
Side B
white
white
brown
brown
Terminals 2 x 2 way
on option rail
