2.4 OPERATING PROCEDURES OF THE JOYSTICK
Two ways of Joystick operation, one is for rough adjustment
and the other is for slightly adjustment. The Measurement
Button is provided at the upper part of the Joystick.

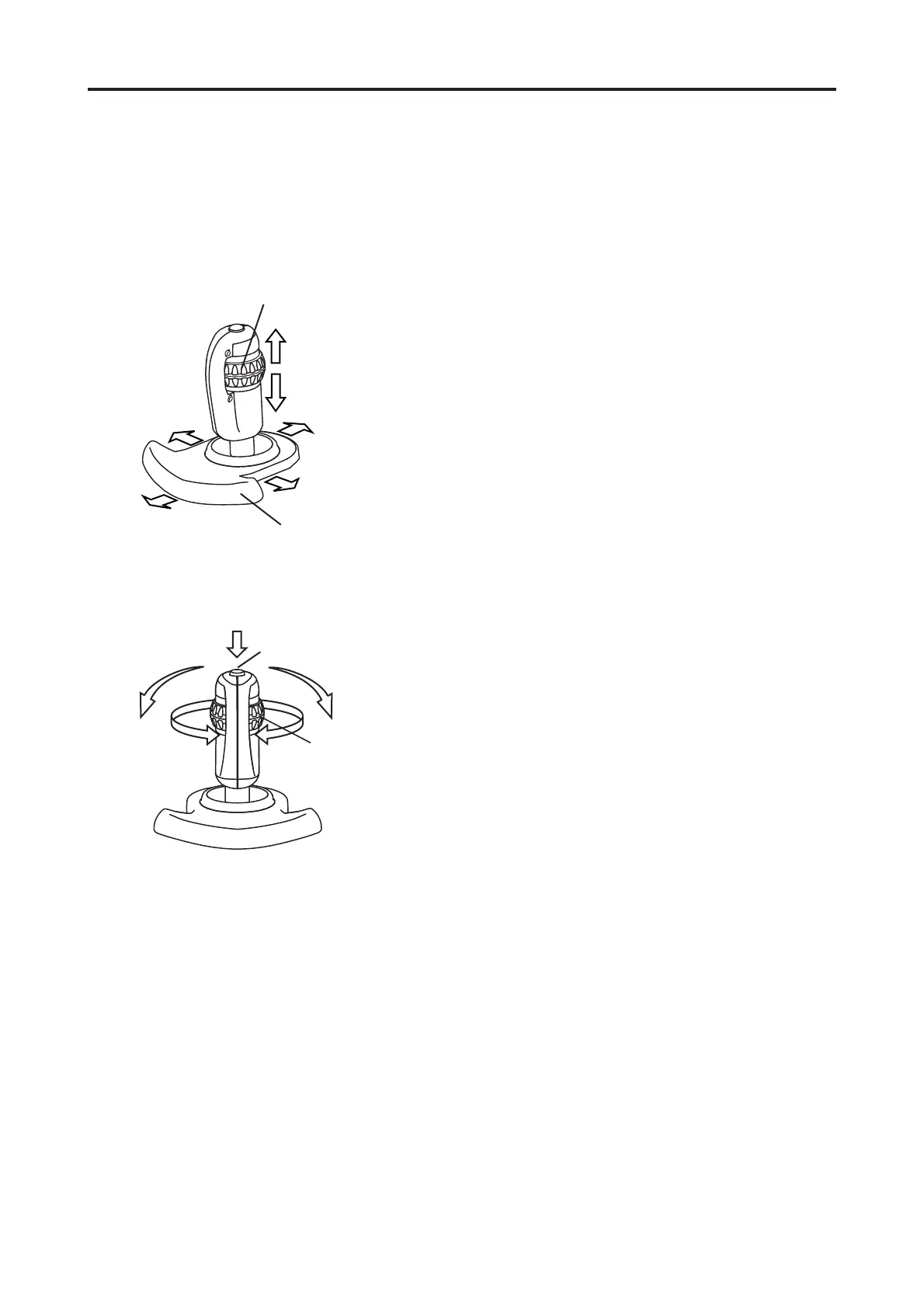

<Rough adjustment>
Front/rear and right/left
Slide the Hand Rest $ to the expected direction of the
Measurement Head. Largely sliding amount is given,
moving speed is also faster.
Up/down
Slide the Joystick Up/down Move Ring % to the ex-
pected direction of the Measurement Head.
<Slightly adjustment>
Front/rear and right/left
Tilt the Joystick toward the expected direction of the
Measurement Head.
Up/down
Rotate the Up/down Move Ring $ of the Joystick.
Clockwise ................. Moves to upward
Counterclockwise .....Moves to downward
<Start Measuring>
Press the Measurement Button & to start measurement.
Ԙ
ԙ
ԙ
Ԛ
2.4 OPERATING PROCEDURES OF THE JOYSTICK
