110
18. SETTING-OUT MEASUREMENT
5. Position the target on the line of sight and press
Press [H.TURN] to automatically rotate the
instrument until the angle of the setting out point
reads 0°.
[MEAS] to begin distance measurement.
The distance and direction to move the target until
the setting out point is located is displayed on the
instrument. The sighting point measurement
results (currently installed position of the target)
are displayed.

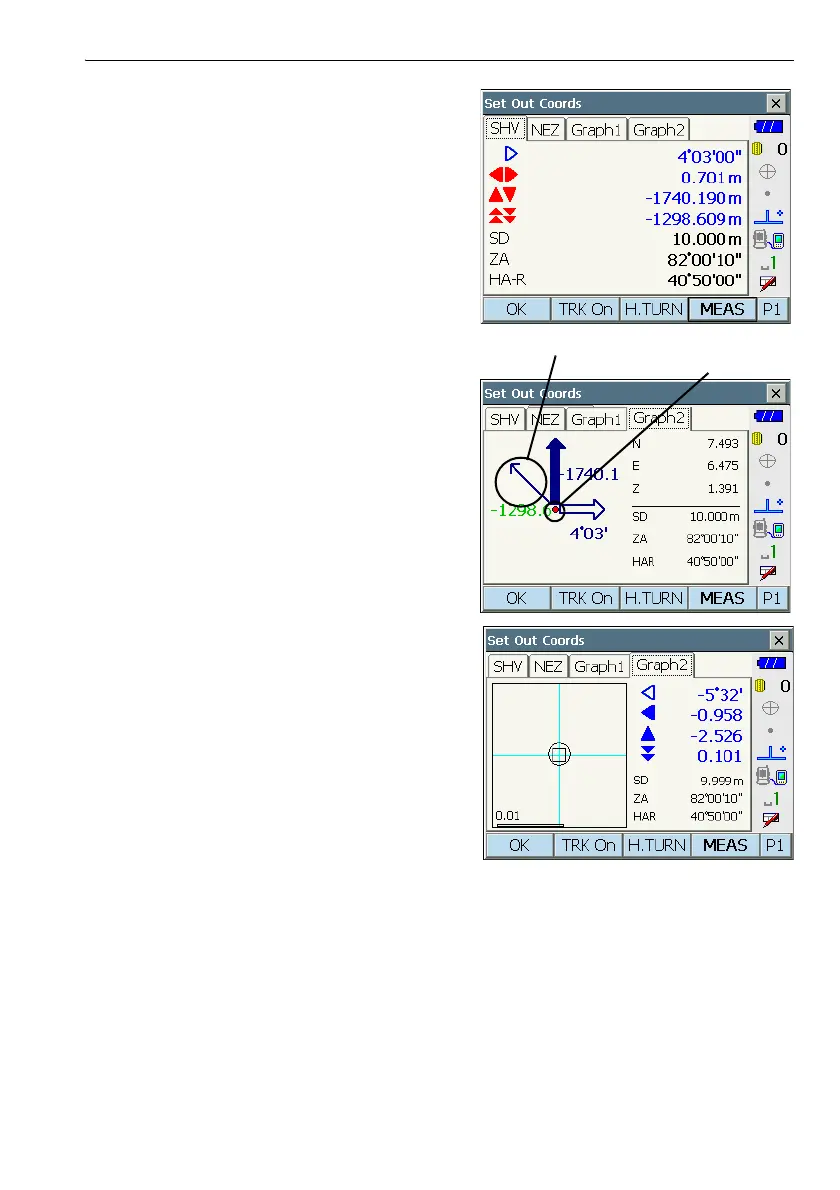

• Switch between the tabs to display different sets
of information.
The Graph 1 tab shows the current position of
the mirror and the direction to the setting out
point from this position.
The Graph 2 tab shows the position of the setting
out point (square) and the current location of the
mirror (circle).
Height difference direction
Position of poleman
