4. PRODUCT OUTLINE
Parts and functions of the instrument
1 Wireless antenna
2 Handle
3 Beam detector for Remote Controller (option)
4 Antenna hook
5 External interface hatch
(USB port/reset button)
6 Instrument height mark
7 Battery cover
8 Display unit
9 Circular level
10 Serial / External power source connector
11 Circular level adjusting screws
12 Base plate
13 Levelling foot screw
14 Tribrach locking screw
15 Optical plummet focussing ring
16 Optical plummet eyepiece
17 Optical plummet reticle cover
18 Luminance sensor
19 Objective lens
(Includes " Laser-pointer function")
20 Camera
21 Tubular compass slot
22 Handle locking screw
23 Vertical Jog
24 Keyboard
"5.1 Basic Key Operation"
25 Trigger key
26 Horizontal Jog
27 Stylus (pen)
28 Tribrach clamp
29 Telescope eyepiece
30 Telescope eyepiece screw
31 Telescope knob
32 Telescope focussing ring
33 Sighting collimator
34 Instrument center mark

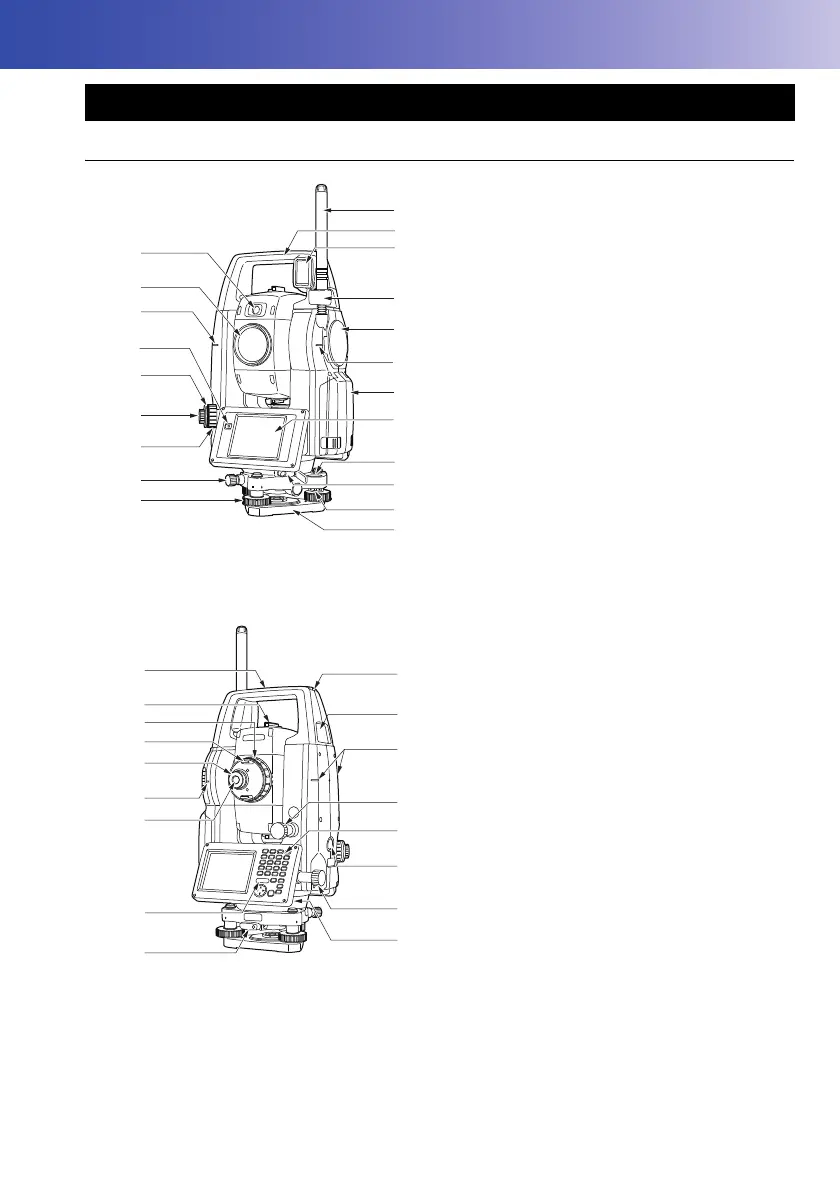

4.1 Parts of the Instrument
6
6
19
20
2
3
9
8
7
5
4
1
11
10
12
13
14
16
15
18
17
21
22
25
23
24
26
27
30
29
28
31
32
33
34
6
6
18
