174

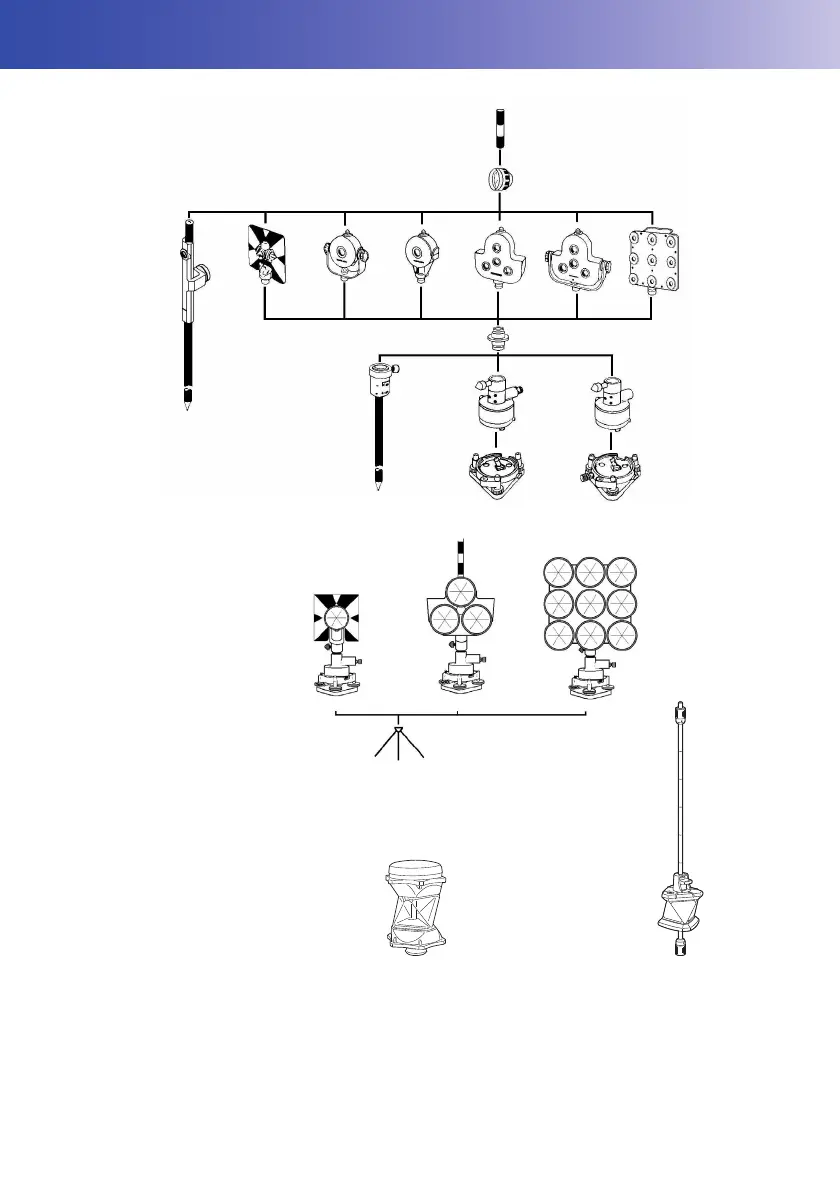

26.PRISM SYSTEM
Arrangement according to your needs is possible.
• Use the above prisms after setting them at the same height as the instruments. To adjust the height
of prism set, change the position of fixing screws.
• Plug-3 is necessary for the tribrach adaptor-2, tribrach adaptor-S2 and pole adaptor-F2 to coincide
with the height of this series.
Tilt single prism unit
Fixed 3 prisms unit
Fixed 9 prisms unit
Tripod
Target pole-2
(not used with 9 prisms)
Prism-2
Triple prism
holder-2
Tilting triple
prism holder-1
9 prism
holder-2
Tribrach
adaptor-2
Tribrach
adaptor-S2
Tilting prism
holder-2
with target
plate-2
Pole adaptor- A
Tilting prism
holder-3
Single prism
holder-2
Pole adaptor- F2
Tribrach
Optical plummet tribrach
Plug-3
360° Prism ATP1 360° Sliding Prism ATP1S
