19. OFFSET MEASUREMENT
6. Sight the offset point and press [MEAS] in the
screen of step 5 to start measurement.
Press [STOP] to stop the measurement.
The measurement results are displayed.
•Press [HVD/nez] to switch results for the
target point between distance/angle values
and coordinate/elevation values.
Sighting the direction of the target point to find it from the included angle.
Install offset points for the target point on the right and left sides of and as close as possible to the
target point and measure the distance to the offset points and the horizontal angle of the target point.
PROCEDURE
1. Set the offset points close to the target point
(making sure the distance from the instrument
station to the target point and the height of the
offset points and the target point are the same),
then use the offset points as the target.
19.2 Offset Angle Measurement

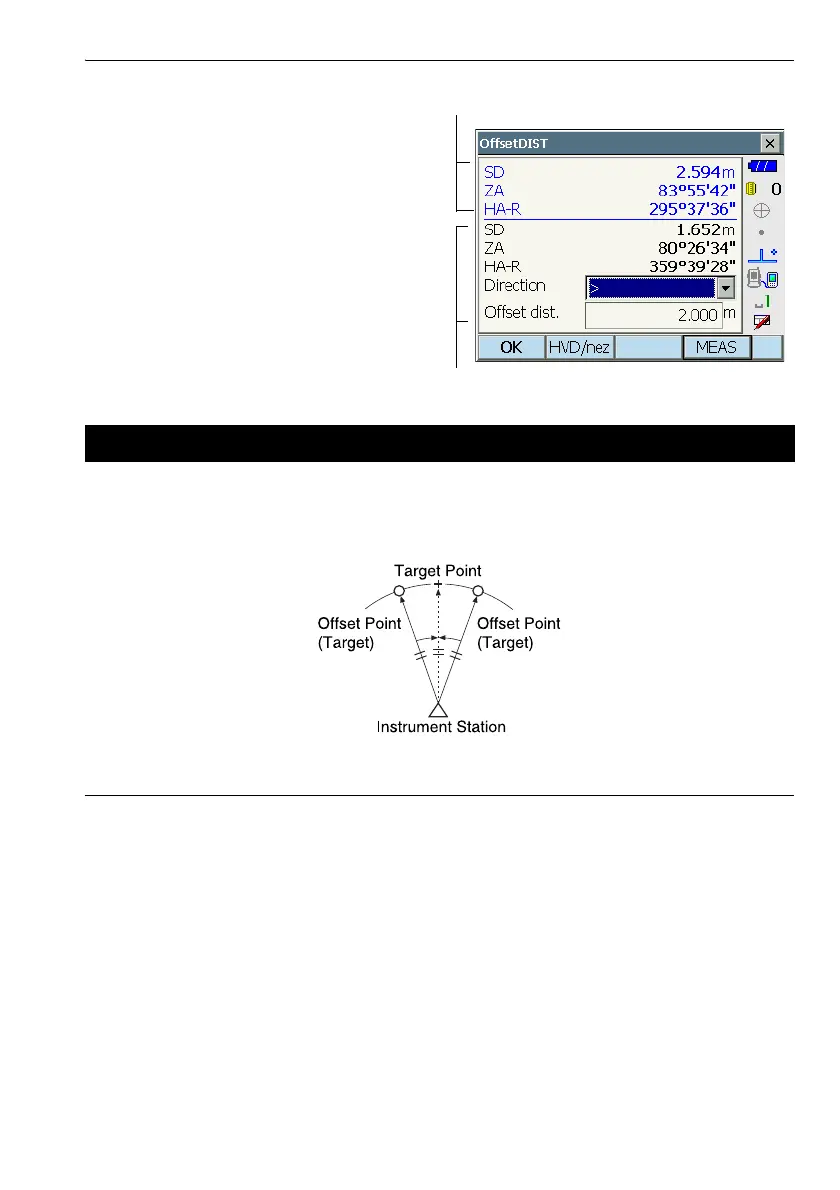

Results for target point
Results for offset point
