Topcon DS Series User Manual

19. OFFSET MEASUREMENT
117

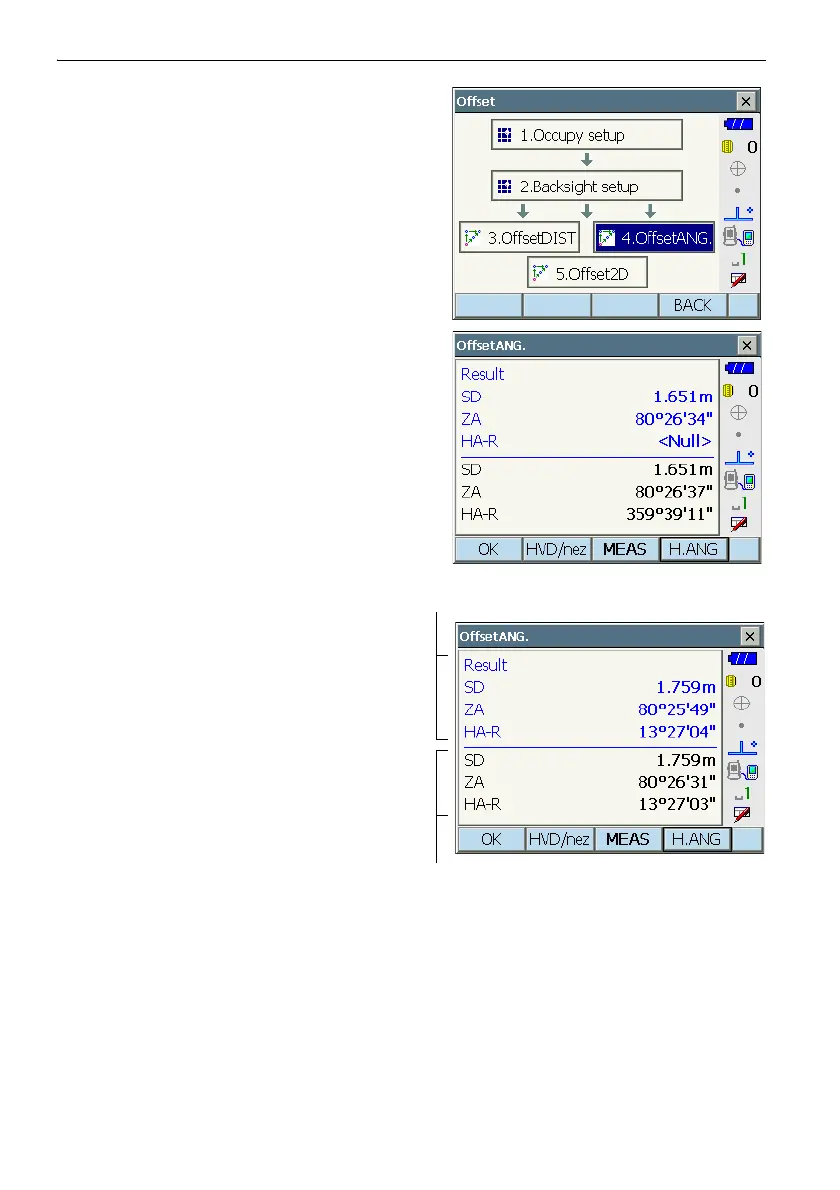

2. Select "Offset" in <Menu> to display <Offset>.
Select "OffsetANG.".
3. Sight the offset point and press [MEAS] to start
measurement.
Press [STOP] to stop the measurement.
4. Sight the target point and press [H.ANG].
•Press [HVD/nez] to switch results for the
target point between distance/angle values
and coordinate/elevation values.
5. Press [OK] in the screen in step 4 to return to
<Offset>.
Results for offset point
Results for target point
