24. CHECKS AND ADJUSTMENTS

167

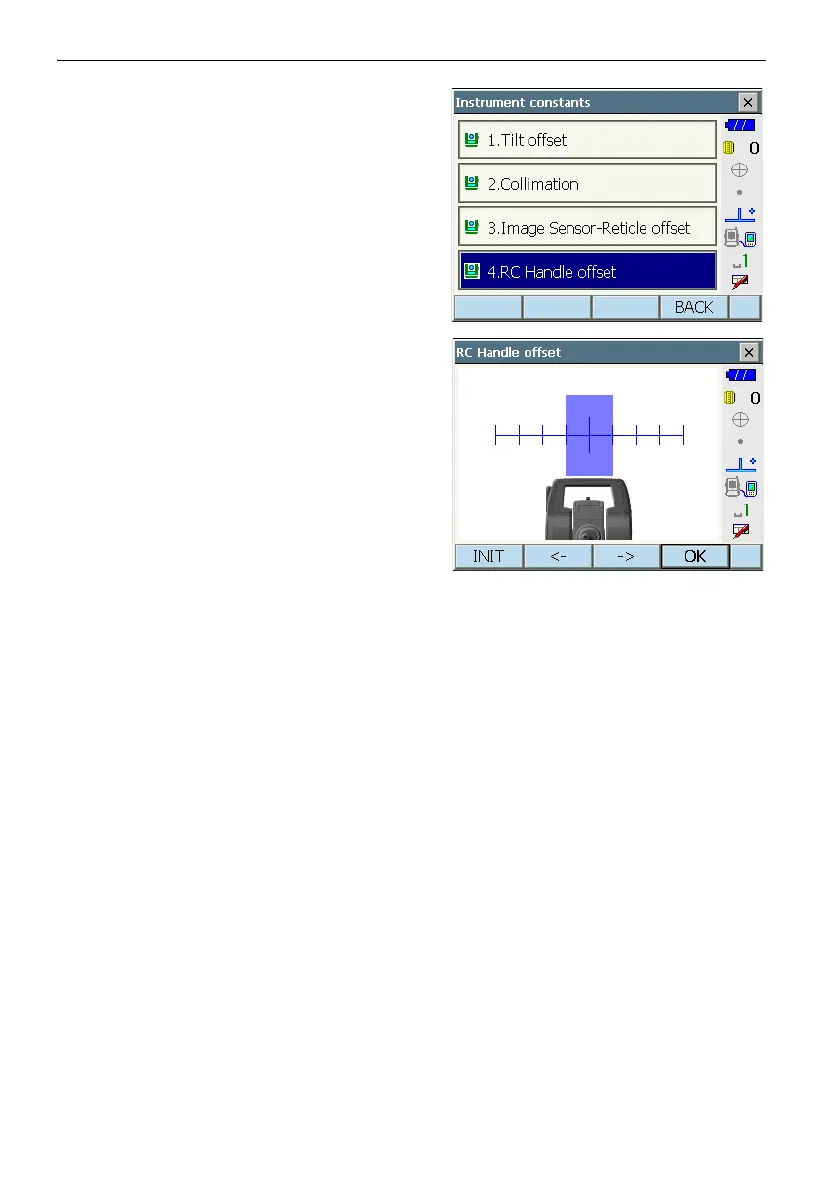

2. Select "RC Handle offset".

3. Press [ ← ]/ [ → ] to offset the search area to its

proper position.

• Press [INIT] to return offset value settings to its

factory setting center.

4. Press [OK] to renew the offset value and return to

<Instrument constants>.
