6. USING THE BATTERY

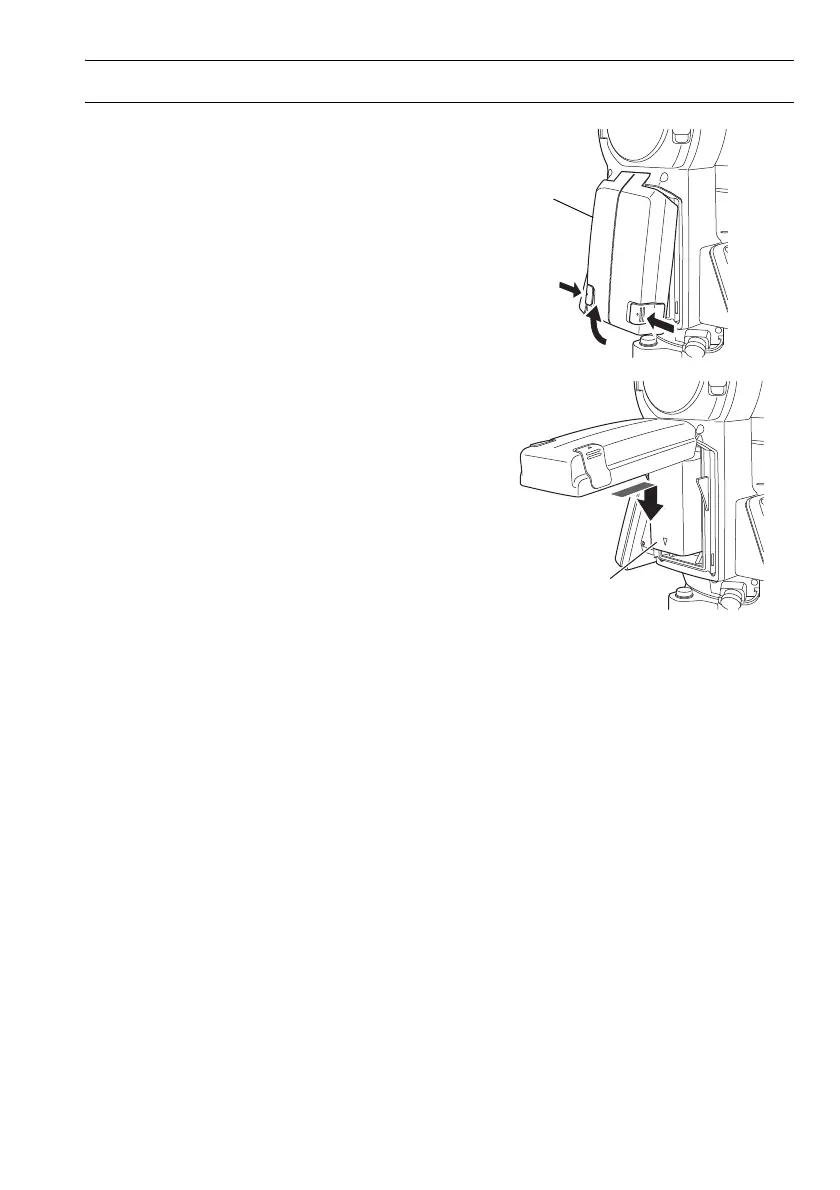

PROCEDURE Mounting the battery

1. Slide down the catches on the battery cover to

open.

2. Insert the battery in the direction of the arrow

on the side of the battery.



• Do not insert the battery inclined. Doing so

may damage the instrument or battery

terminals.

3. Close the battery cover. A click is heard when

the cover is secure.

Battery cover

Battery

Default Chapter4
- Table of Contents4
1 Precautions for Safe Operation8
2 Precautions11
3 Laser Safety Information15
4 Product Outline17
- Parts of the Instrument17
- Mode Structure22
- Bluetooth Wireless Technology/Wireless LAN23
5 Basic Operation25
- Basic Key Operation25
- Display Functions29
- Inputting Characters Using the Input Panel34
- Starkey Mode35
- Using the Program Selection Screen40
6 Using the Battery41
- Battery Charging41
- Installing/Removing the Battery42
7 Setting up the Instrument44
- Centering44
- Levelling46
8 Power On/Off48
- Configuring the Touch Panel49
- Resolving Software Issues50
- Powering ON/OFF from an External Instrument51
9 Connecting to External Devices52
- Wireless Communication Using Bluetooth Technology52
- Communication between the DS and Companion Device57
- Connection Via RS232C Cable59
- Connecting Via USB Cable60
- Inserting USB Memory63
10 Starting up External Link and Settings64
11 Target Sighting70
- Auto Pointing Settings71
- Auto-Pointing Function for Target Sighting73
- Manually Sighting the Target75
12 Measurement with Auto Tracking77
- Auto Tracking Settings77
- Measurement with Auto Tracking79
13 Maneging the Camera Tab82
14 Angle Measurement85
- Measuring the Horizontal Angle between Two Points (Horizontal Angle 0°)85
- Setting the Horizontal Angle to a Required Value (Horizontal Angle Hold)86
- Turning the Instrument from the Reference Angle to a Specified Angle87
- Angle Measurement and Outputting the Data88
15 Distance Measurement89
- Returned Signal Checking90
- Distance and Angle Measurement91
- Distance Measurement and Outputting the Data92
- REM Measurement93
16 Coordinate Measurement95
- Entering Instrument Station Data95
- Azimuth Angle Setting96
- 3-D Coordinate Measurement99
17 Resection Measurement101
- Coordinate Resection Measurement102
- Height Resection Measurement106
18 Setting-Out Measurement111
- Distance Setting-Out Measurement111
- Coordinates Setting-Out Measurement115
- REM Setting-Out Measurement119
19 Offset Measurement121
- Offset Single-Distance Measurement121
- Offset Angle Measurement123
- Offset Two-Distance Measurement125
20 Missing Line Measurement128
- Measuring the Distance between 2 or more Points128
- Changing the Starting Point130
21 Surface Area Calculation132
22 Changing the Settings136
- Observation Conditions136
- Instrument Configuration139
- EDM Settings142
- Allocating User-Defined Tabs146
- Customizing Screen Controls148
- Allocating Key Functions150
- Changing Starkey Mode Icons153
- Units155
- Changing Password156
- Date and Time157
- Restoring Default Settings158
23 Warning and Error Messages159
24 Checks and Adjustments162
- Circular Level162
- Tilt Sensor163
- Collimation166
- Reticle167
- Image Sensor Reticle169
- Camera171
- RC Handle (Option)173
- Optical Plummet175
- Additive Distance Constant176
- Laser Plummet (Option)177
25 Power Supply System180
26 Prism System181
27 Opptional Accessories182
28 Specifications185
29 Explanations193
- High Accuracy with the 360° Prism193
- Manually Indexing the Vertical Circle by Face Left, Face Right Measurement194
30 Regulations195
31 Index199
32 Appendix201
