7. SETTING UP THE INSTRUMENT
4. Adjust the levelling foot screws to center the
survey point in the optical plummet reticle.
5. Continue to the levelling procedure.
"7.2 Levelling"
PROCEDURE Centering with the laser plummet (Option)
1. Set up the tripod and affix the instrument on the
tripod head.
"7.1 Centering"
2. Press {} to power on
"8. POWER ON/OFF"

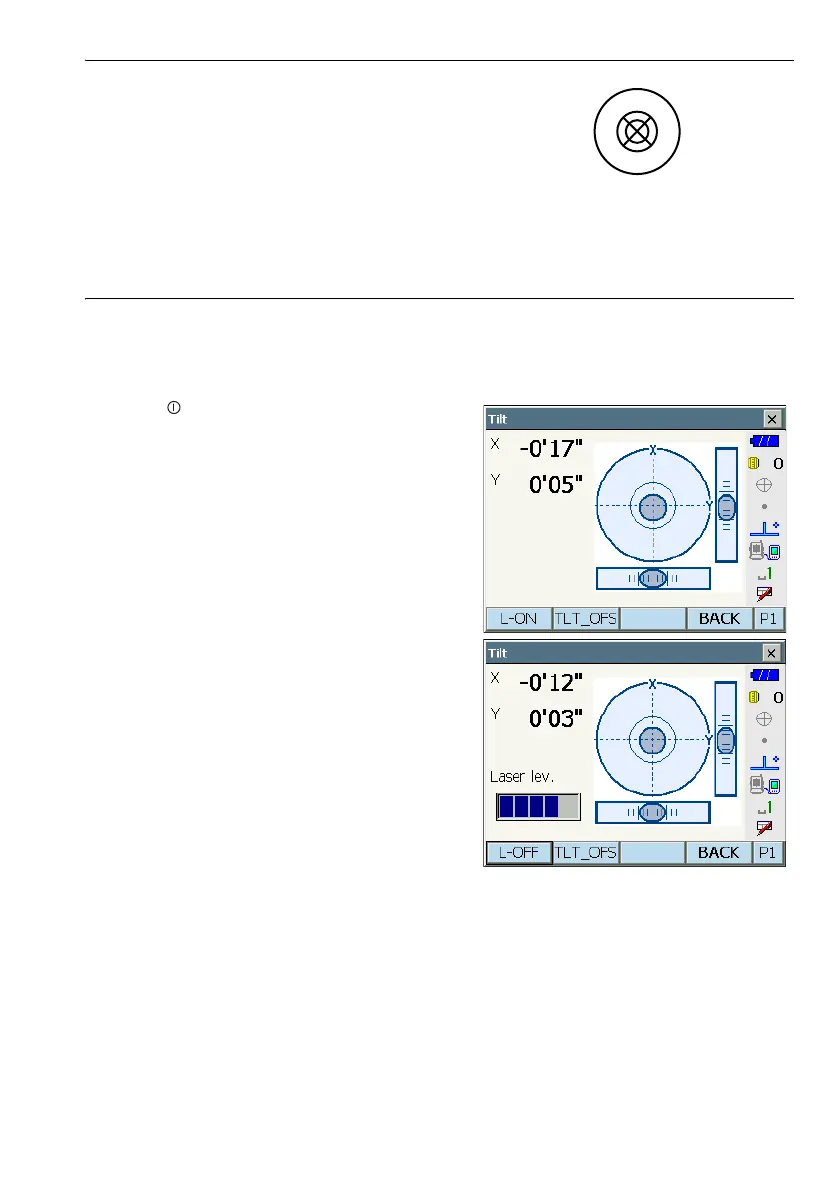

The electric circular level is displayed on the <Tilt>.
3. Press [L-ON].
The laser plummet beam will be emitted from the
bottom of the instrument.
