16. COORDINATE MEASUREMENT
91
PROCEDURE Entering angle

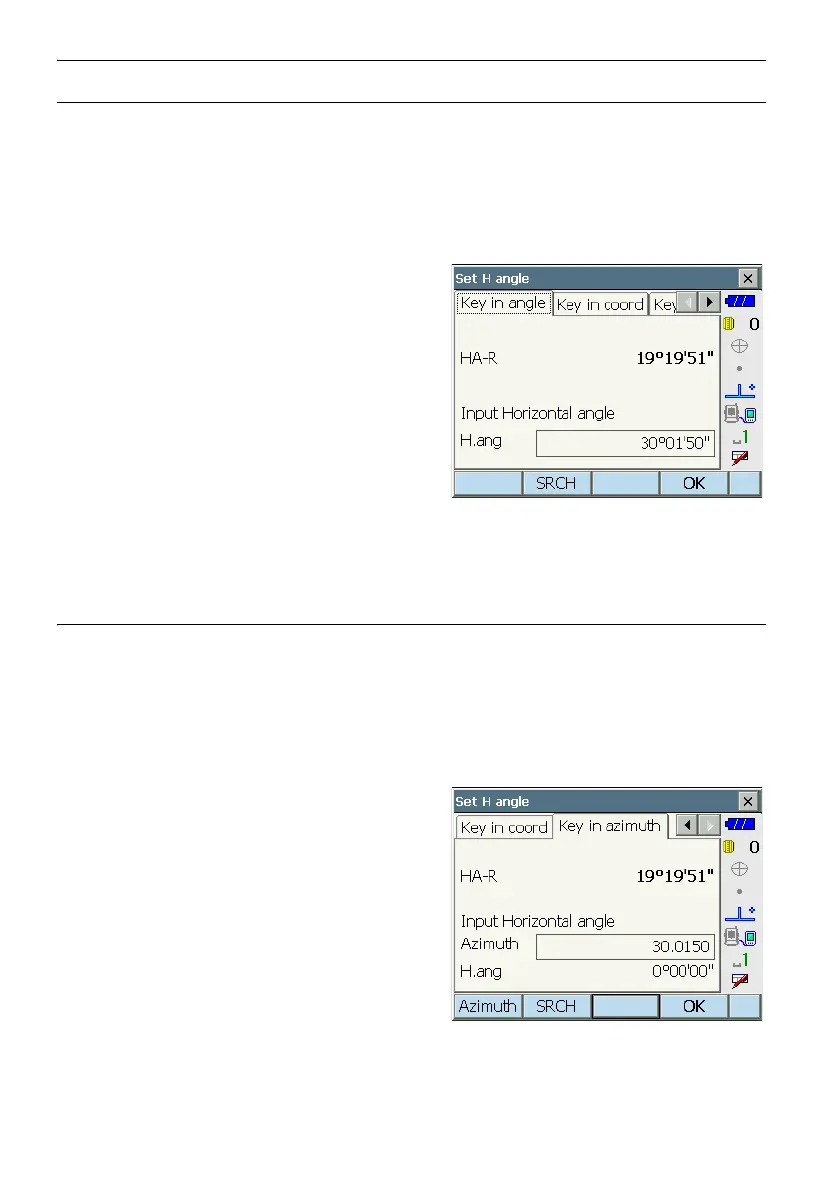

1. Select "Backsight setup" in <Coordinate>. <Set H
angle> is displayed.
• <Set H angle> can also be displayed from the
screen in step 4 of "16.1 Entering Instrument
Station Data".
2. Select the "Key in angle" tab and enter the
desired angle in "H.ang".
• [SRCH]: Performs Auto Pointing. Rotates the
instrument in the direction of the backsight.
3. Press [OK] to set the input values. <Coord.
measurement> is displayed.
PROCEDURE Entering azimuth
1. Select "Backsight setup" in <Coordinate>. <Set H
angle> is displayed.
• <Set H angle> can also be displayed from the
screen in step 4 of "16.1 Entering Instrument
Station Data".
2. Select the "Key in azimuth" tab and enter the
desired angle in "Azimuth".
• [SRCH]: Performs Auto Pointing. Rotates the
instrument in the direction of the backsight.
• [Azimuth] /[H.ANG]/[None]/[0 SET]: Switches
horizontal angle setting method.
"Horizontal angle settings"
3. Press [OK] to set the input values. <Coord.
measurement> is displayed.
To Next Page
