Topcon KR-800A - Measurement in Semi-Auto Mode; Setting the Semi-Auto Mode

24
BASIC OPERATIONS
BASIC OPERATIONS
MEASUREMENT IN SEMI-AUTO MODE

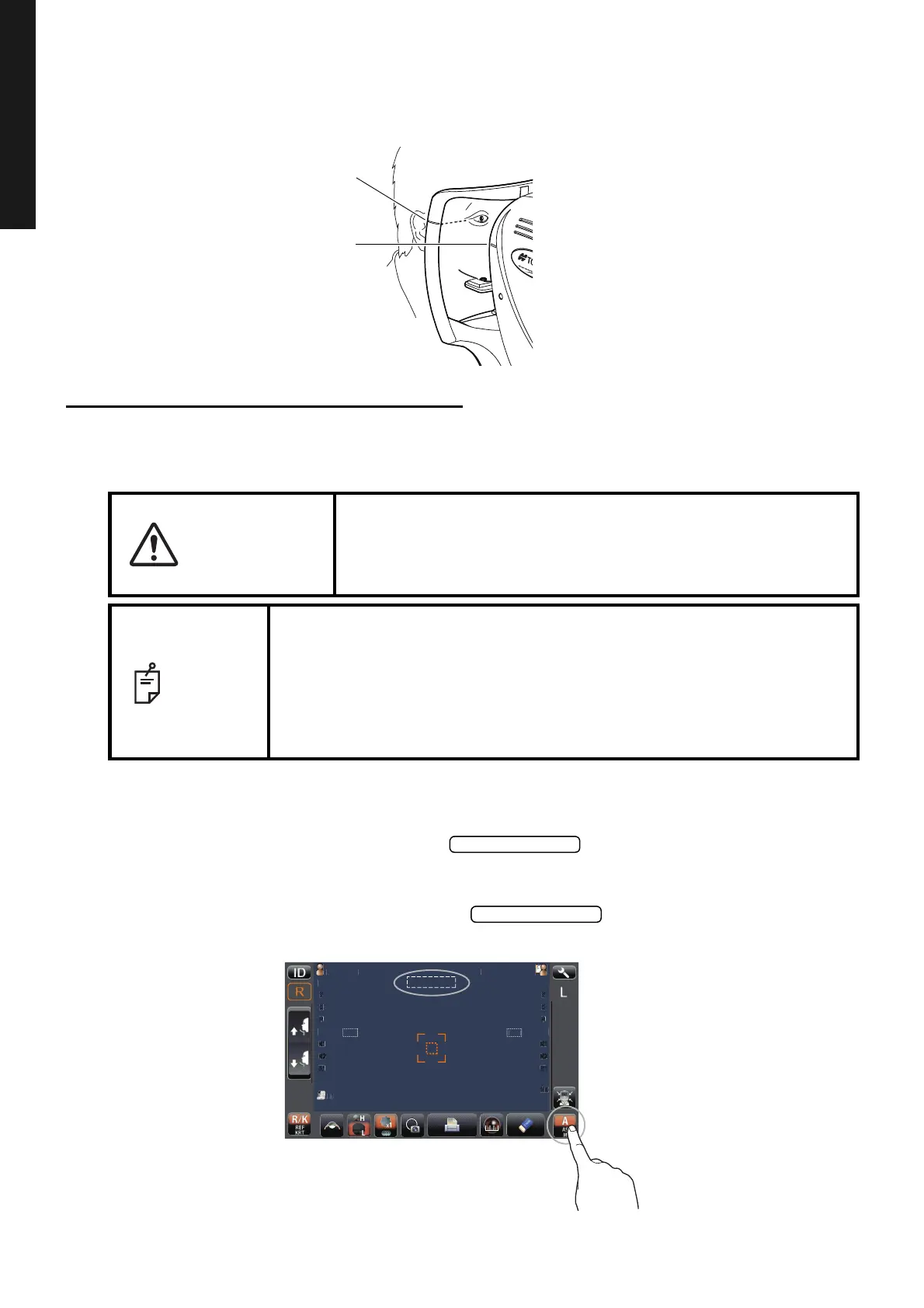

7 Adjust the chinrest height by up/down button for chinrest until the eye height mark of the chin-
rest reaches the same height as the patient's eye. At this moment, confirm that the eye height
mark of measuring window is at the height of the patient's visual line.
MEASUREMENT IN SEMI-AUTO MODE
If approaching the automatic measuring range, fine alignment and measurement are performed
automatically in Semi-auto mode.
SETTING THE SEMI-AUTO MODE
1 If the large sign "A" is displayed in the button with orange background, it is
in Semi-Auto mode.
2 If the large sign "A" is not displayed in the button with orange background, it
is in other mode. Tap the button to change to Semi-auto mode.
CAUTION
When operating the instrument (for measurement and control panel
operation), be careful that the instrument does not touch the
patient's lip or nose. If touched, clean the instrument as specified in
"CLEANING THE MEASURING WINDOW" on page 56.
NOTE
• Semi-auto mode measurement may not be possible, in case the eyelid
and the eyelashes cover the pupil.
If this occurs, the operator should tell the patient to open their eyes as
wide as possible, or lift the eyelid to allow for measurement.
• Semi-auto mode measurement may not be possible due to frequent blinks
or existing abnormalities in the corneal surface caused corneal disease
etc. In this case, measure in manual mode.
Eye height mark of
measuring window
Eye height mark
Alignment mode
Alignment mode
Pa
tientI
D
PatientID
0/3
0/3
0/3
0/3
12.
12.
0/3
0/3
0/3
0/3

1
1
R
R
S
SS
C
C
A
A
K
K
R1
R1R1
R2
R2R2
A1
A1A1
R
R
S
S
C
C
A
A
K
K
R1
R1R1
R2
R2R2
A1
A1A1
VD
VDVD
mm
mm
TOPCONTAROU
TOPCONTAROU
mm
mm
Semi Auto
