Boom Sensor Mounting
P/N 7010-0697
2-5

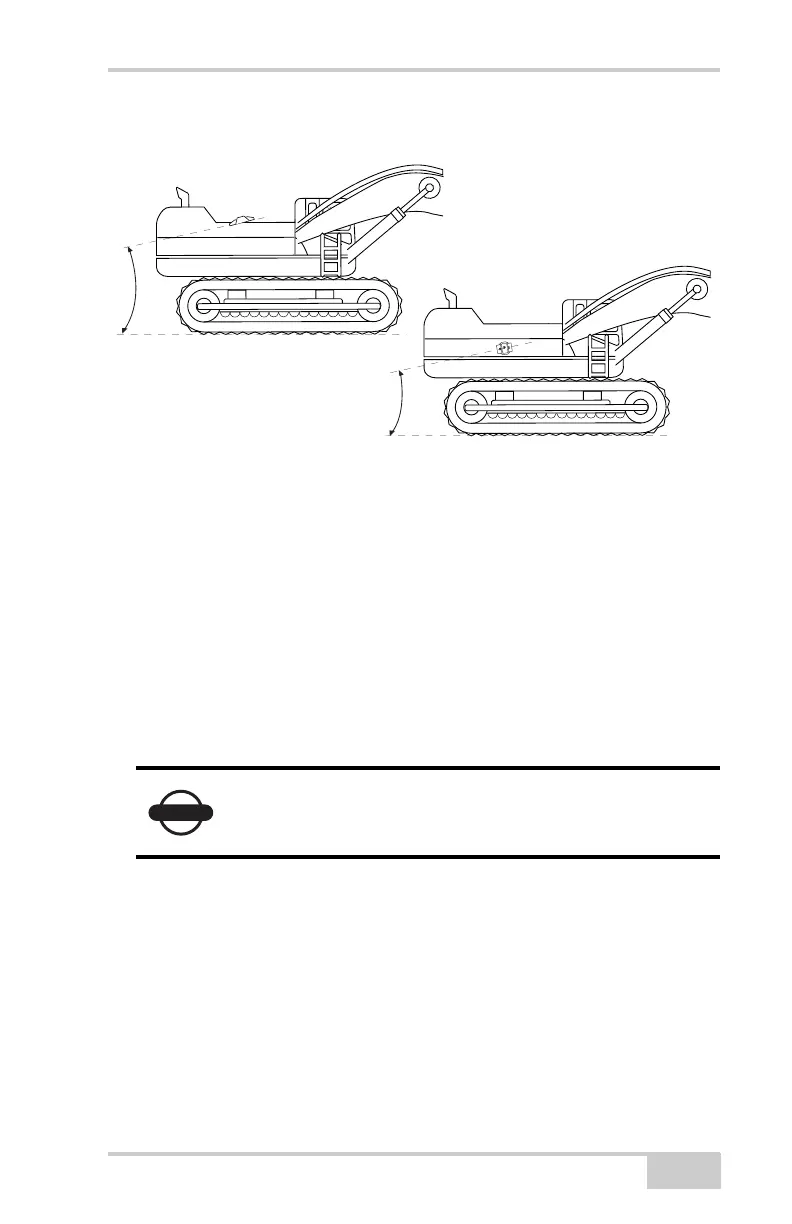

Figure 2-3. Body Sensor Mounting Examples
Boom Sensor Mounting
For the boom sensor, locate a convenient surface parallel to the boom
center. The recommended mounting location is up (on the top of the
boom) with the arrow pointing forward toward the direction of travel
(Figure 2-4 on page 2-6).
If mounting on the side of the boom, because many booms will taper
out at the boom pivot, be sure to place the sensor at a location away
from the boom pivot.
Placing the boom sensor on a tapered section will
cause calculation errors.
Up Mounting
(Recommended)
Side
