Full System Test
Performing a full system test verifies the accuracy of the X63/X62
system at various machine positions.
Testing Machine Element
Sensors for Accuracy
Testing the sensors on the Boom, Stick, and Bucket requires three
bucket measurements at three boom and stick extensions.
Using a hub, record the local coordinates with the following machine
positions facing North, then rotate 180° and record each position
again facing South. Use a copy of the table on page 6-3 to record
these points.

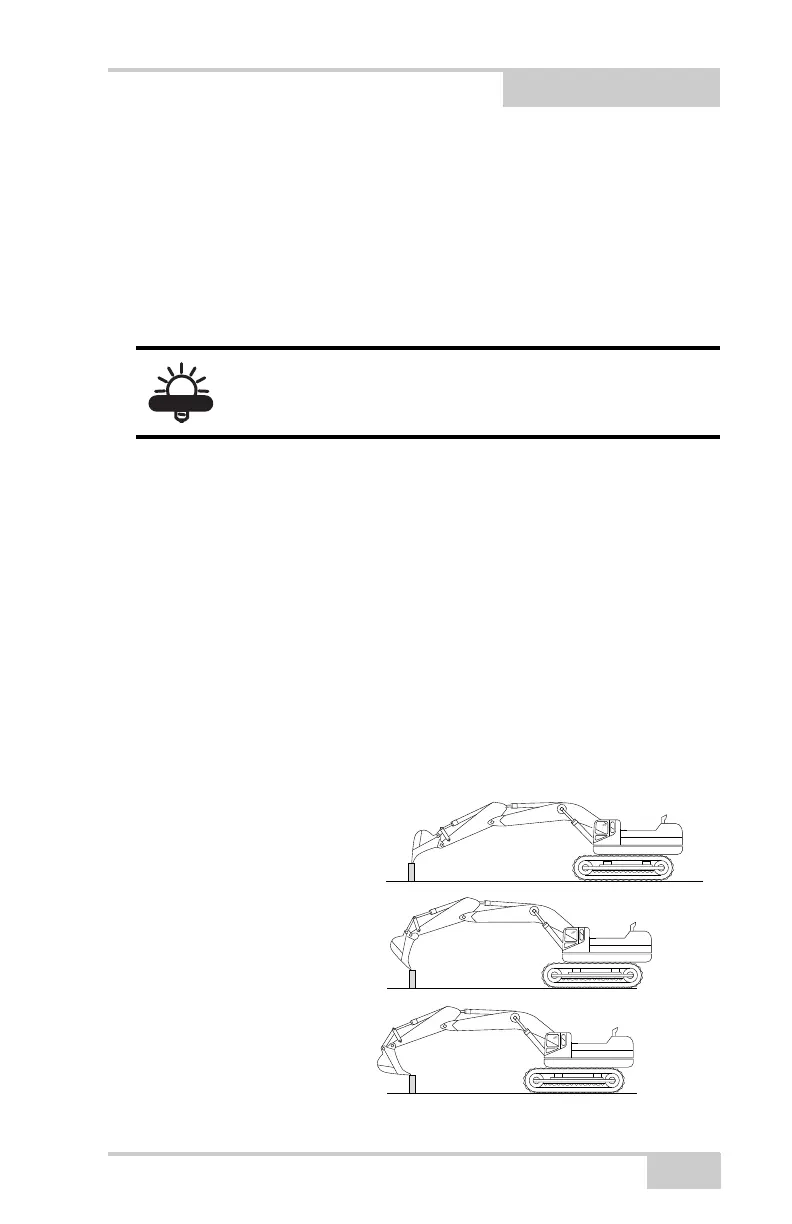

Record Bucket Positions with Boom and Stick Fully Extended
If a hub with a known position is available, use it to
measure the positions below.
Bucket extended
Bucket mid-position
Bucket curled
