Full System Test
X63/X62 Installation and Calibration Manual
6-2

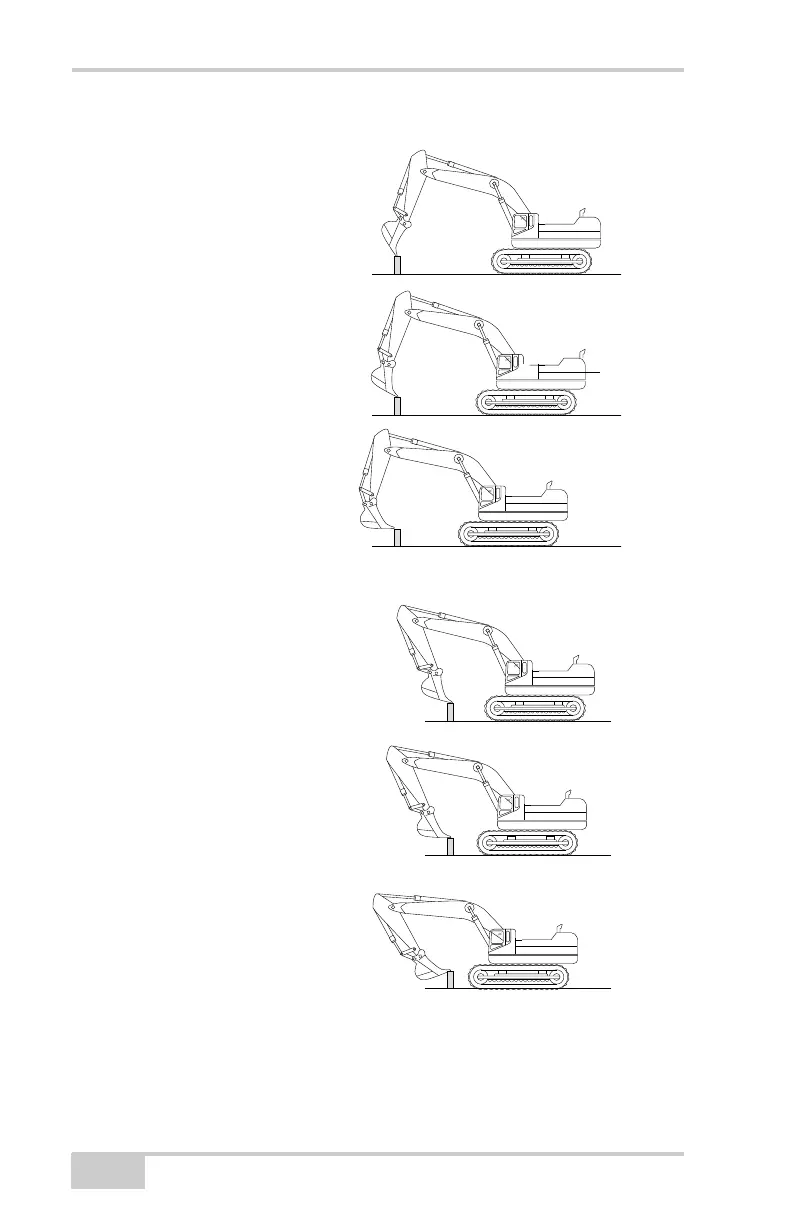

Record Bucket Positions with Boom and Stick in Mid-extension
Record Bucket Positions with Boom and Stick Retracted
If a hub with a known position is available use those coordinates as
the reference. Otherwise, use the first position as a reference.
Compare each position to the reference. The difference should be
within ± 0.2Ft.
Bucket extended
Bucket mid-position
Bucket curled
Bucket extended
Bucket mid-position
Bucket curled
