Stick Sensor Mounting
P/N 7010-0697
2-7
Stick Sensor Mounting
Locate a convenient surface to mount the sensor. Mounting the TS-1
close to the top of the stick will help prevent damage during digging.
The recommended mounting location is on the left side of the stick
with the arrow pointing forward toward the direction of travel, when
the stick is extended (Figure 2-5 on page 2-7).
If mounting the TS-1 on the front of the stick, make sure the sensor is
parallel to the stick-to-bucket centerline (Figure 2-5 on page 2-7).

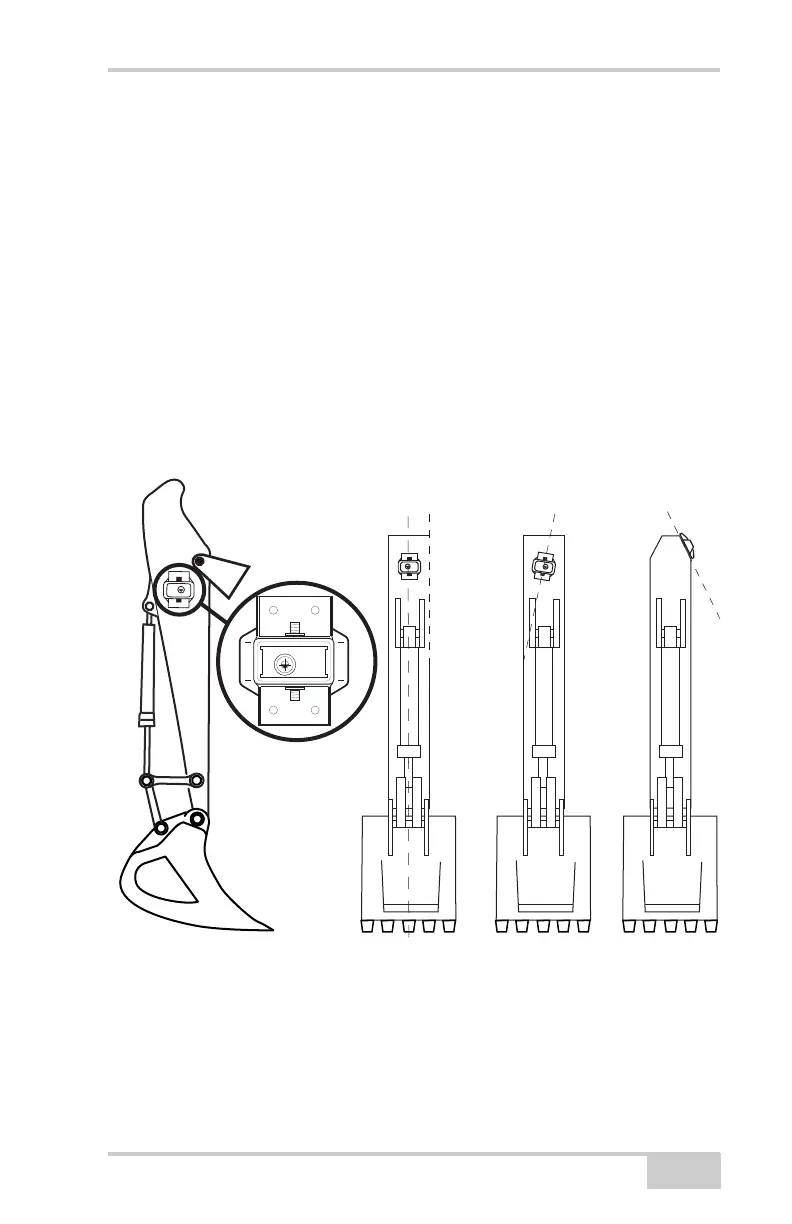

Figure 2-5. Stick Sensor Mounting
Correct Front
Location
Correct Side
Location
(Recommended)
Incorrect
Incorrect
