TS-1 Sensor Installation
X63/X62 Installation and Calibration Manual
2-4
Body Sensor Mounting
For the body sensor, locate a convenient surface parallel to the boom
pivot. The recommended mounting location is up, on top of the body,
with the arrow pointing forward toward the direction of travel
(Figure 2-2)

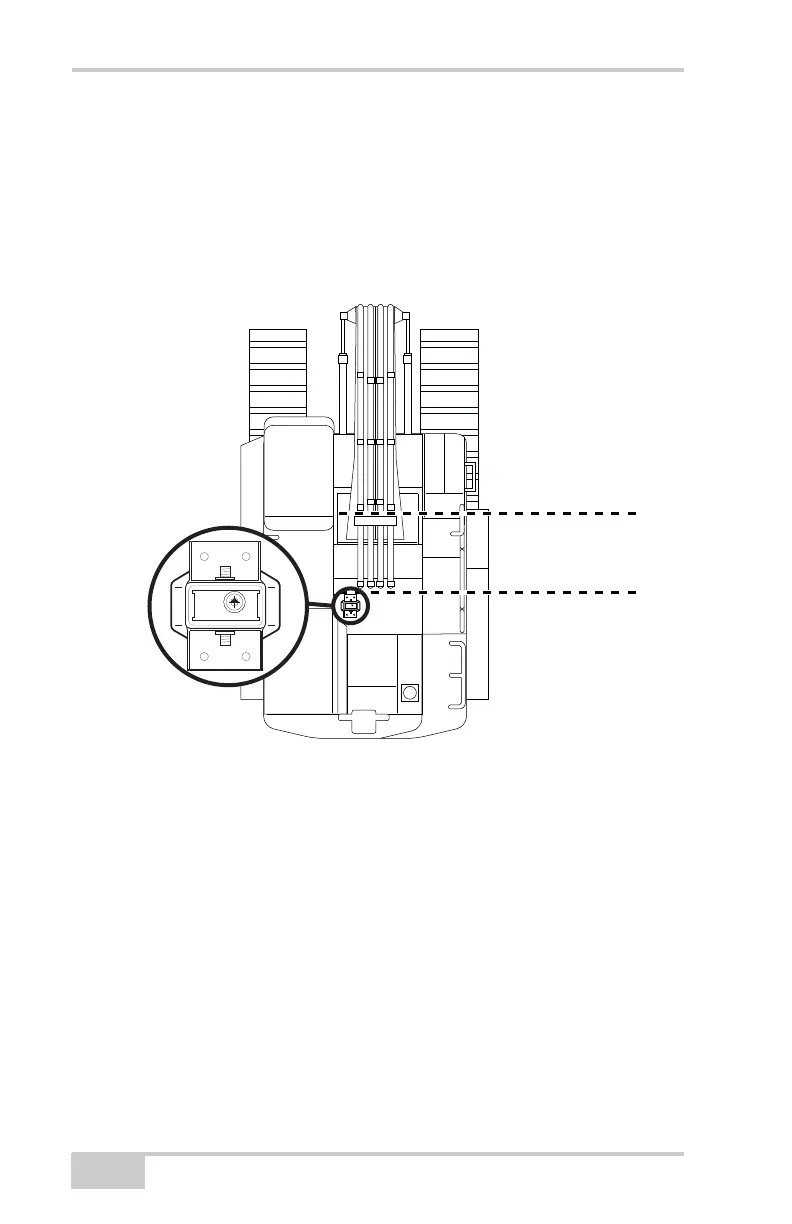

Figure 2-2. Body Sensor Mounting
Boom Pivot
Body Sensor
Mount Body Sensor
Parallel to Boom Pivot
